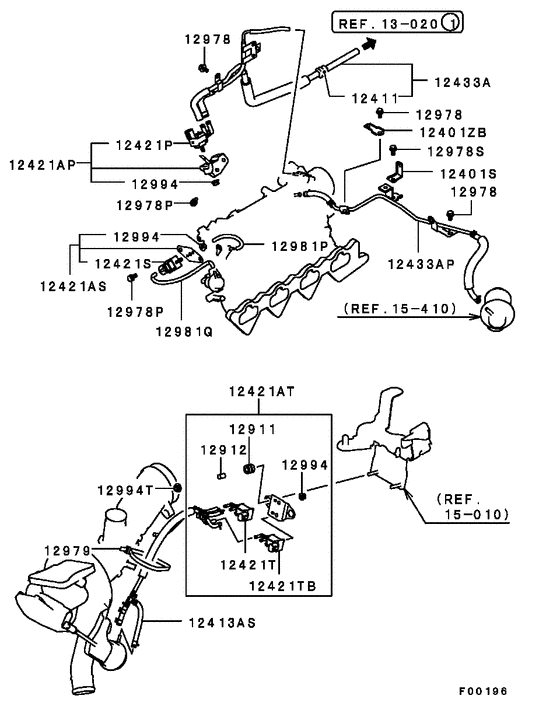

Emission control (M/T) Diagram Mitsubishi LANCER
- Year
- 2005 - 2006
- Sales region
- Japan
- Note
- EVOLUTION/EVOLUTION-MR(GT),6FM/T
- drive
- 4WD
- transmission
- 6FM/T
- grade
- EVOLUTION/EVOLU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
12401S
|
12401S
8558A446 BRACKET, EMISSION CONTROL EQUIP |
8558A446 |
US $3.55 |
||
|
12401ZB
|
12401ZB
MD349434 BRACKET, CYLINDER HEAD |
MD349434 |
US $9.30 |
||
|
12411
|
12411
MR312384 CHECK VALVE, EMISSION CONTROL |
MR312384 |
US $16.28 |
||
|
12413AS
|
12413AS
1632A104 HOSE ASSY, EMISSION VACUUM CONTROL |
1632A104 |
US $35.52 |
||
|
12421AP
|
12421AP
MR561071 VALVE ASSY, EMISSION SOLENOID |
MR561071 |
US $79.18 |
||
|
12421AS
|
12421AS
MR560576 VALVE ASSY, EMISSION SOLENOID |
MR560576 |
US $108.07 |
||
|
12421AT
|
12421AT
8657A001 VALVE ASSY, EMISSION SOLENOID |
8657A001 |
US $145.78 |
||
|
12421P
|
12421P
MR560952 VALVE, EMISSION SOLENOID |
MR560952 |
US $58.46 |
||
|
12421S
|
12421S
MD320313 VALVE, EMISSION SOLENOID |
MD320313 |
US $88.92 |
||
|
12421T
|
12421T
MN143213 VALVE, EMISSION SOLENOID |
MN143213 |
US $63.61 |
||
|
12421TB
|
12421TB
8657A003 VALVE, EMISSION SOLENOID |
8657A003 |
from US $55.40 |
||
|
12433A
|
12433A
1632A102 HOSE & PIPE ASSY, EMISSION CONTROL |
1632A102 |
US $86.58 |
||
|
12433AP
|
12433AP
1632A165 HOSE & PIPE ASSY, EMISSION CONTROL |
1632A165 |
US $74.56 |
||
|
12911
|
12911
MD083437 INSULATOR, VACUUM REGULATOR VALVE BRACKET |
MD083437 |
US $4.79 |
||
|
12912
|
12912
MD083442 COLLAR, EGR EQUIP |
MD083442 |
US $7.52 |
||
|
12978
|
12978
MF140203 BOLT, ACCEL CABLE SUPPORTFlange,6x12 |
MF140203 |
from US $0.78 |
||
|
12978P
|
12978P
MF241224 BOLT, CYLINDER HEADWasher assembled,6x14 |
MF241224 |
from US $0.78 |
||
|
12978S
|
12978S
MF140204 BOLT, ACCEL CABLE SUPPORTFlange,6x14 |
MF140204 |
from US $0.80 |
||
|
12979
|
12979
MD107115 BAND, AIR CLEANER320 |
MD107115 |
US $4.92 |
||
|
12981P
|
12981P
MS632192 HOSE, CRUISE CONTROL EQUIP3x2000 |
MS632192 |
US $11.22 |
||
|
12981Q
|
12981Q
2036A067
HOSE, EMISSION CONTROL EQUIP
|
2036A067 |
— | ||
|
12994
|
12994
MF434103 NUT, ENG OIL PANFlange,6 |
MF434103 |
from US $0.10 |
||
|
12994T
|
12994T
MS440522 NUT, FUEL TANKWasher assembled,6 |
MS440522 |
from US $0.96 |
||
|
