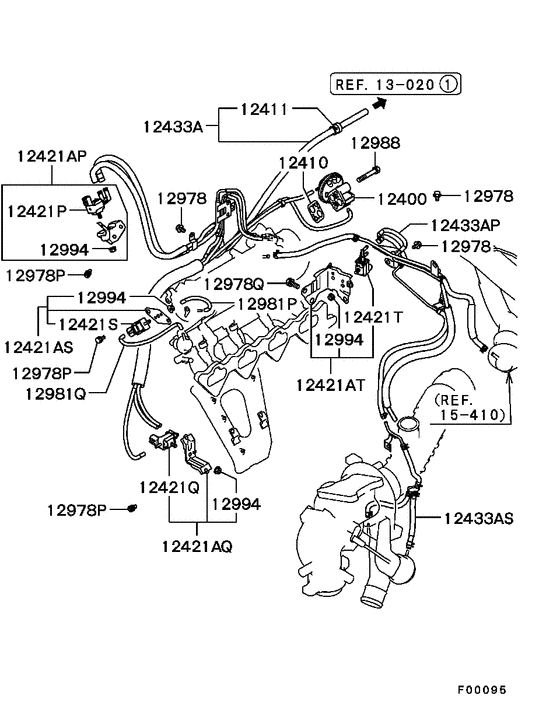

Emission control (-0211.3 A/T) Diagram Mitsubishi LANCER
- Year
- 2005 - 2006
- Sales region
- Japan
- Note
- EVOLUTION/EVOLUTION-MR(GT-A),S5FA/T
- drive
- 4WD
- transmission
- S5FA/T
- grade
- EVOLUTION/EVOLU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
12400
|
12400
MR560582 VALVE, EGR |
MR560582 |
US $348.82 |
||
|
12410
|
12410
MD088604
GASKET, EGR VALVE
|
MD088604 |
— | ||
| replacement | |||||
|
12410
|
12410
MD119127 GASKET, EGR VALVE |
MD119127 |
from US $2.44 |
||
|
12411
|
12411
MR312384 CHECK VALVE, EMISSION CONTROL |
MR312384 |
US $16.28 |
||
|
12421AP
|
12421AP
MR561071 VALVE ASSY, EMISSION SOLENOID |
MR561071 |
US $79.18 |
||
|
12421AQ
|
12421AQ
MR988205 VALVE ASSY, EMISSION SOLENOID |
MR988205 |
from US $80.87 |
||
|
12421AS
|
12421AS
MR560576 VALVE ASSY, EMISSION SOLENOID |
MR560576 |
US $108.07 |
||
|
12421AT
|
12421AT
MR561619 VALVE ASSY, EMISSION SOLENOID |
MR561619 |
US $79.18 |
||
|
12421P
|
12421P
MR560952 VALVE, EMISSION SOLENOID |
MR560952 |
US $58.46 |
||
|
12421Q
|
12421Q
MR204853 VALVE, EMISSION SOLENOID |
MR204853 |
from US $47.23 |
||
|
12421S
|
12421S
MD320313 VALVE, EMISSION SOLENOID |
MD320313 |
US $88.92 |
||
|
12421T
|
12421T
MR212636 VALVE, EMISSION SOLENOID |
MR212636 |
US $69.77 |
||
|
12433A
|
12433A
1632A118
HOSE & PIPE ASSY, EMISSION CONTROL
|
1632A118 |
— | ||
|
12433AP
|
12433AP
MR988012 HOSE & PIPE ASSY, EMISSION CONTROL |
MR988012 |
US $93.24 |
||
|
12433AS
|
12433AS
MR988014 HOSE & PIPE ASSY, EMISSION CONTROL |
MR988014 |
US $33.30 |
||
|
12978
|
12978
MF140203 BOLT, ACCEL CABLE SUPPORTFlange,6x12 |
MF140203 |
from US $0.78 |
||
|
12978P
|
12978P
MF241224 BOLT, CYLINDER HEADWasher assembled,6x14 |
MF241224 |
from US $0.78 |
||
|
12978Q
|
12978Q
MF241253 BOLT, CRANKCASEWasher assembled,8x20 |
MF241253 |
from US $1.01 |
||
|
12981P
|
12981P
MR988265 HOSE, EMISSION CONTROL EQUIP3x110 |
MR988265 |
US $3.85 |
||
|
12981Q
|
12981Q
MR988266 HOSE, EMISSION CONTROL EQUIP3x190 |
MR988266 |
US $3.85 |
||
|
12988
|
12988
MF241263 BOLT, BALANCER BELT TRAINWasher assembled,8x50 |
MF241263 |
US $1.50 |
||
|
12994
|
12994
MF434103 NUT, ENG OIL PANFlange,6 |
MF434103 |
from US $0.10 |
||
|
