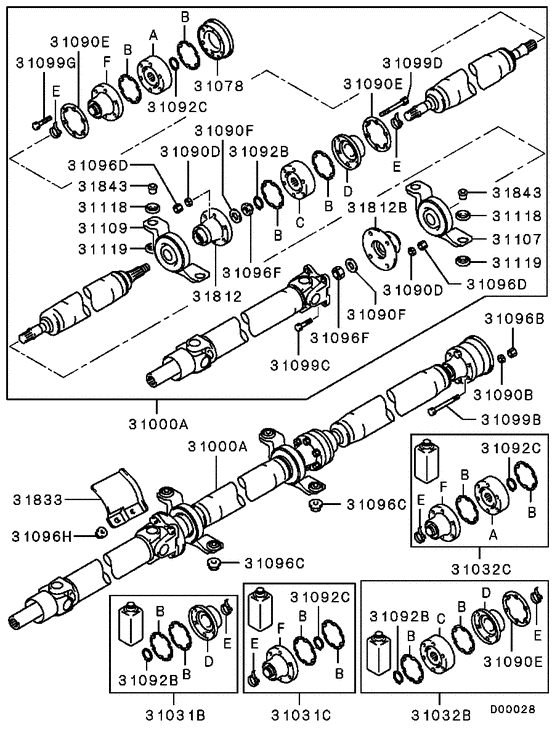

Propeller shaft (A/T) Diagram Mitsubishi LANCER
- Year
- 2005 - 2006
- Sales region
- Japan
- Note
- EVOLUTION/EVOLUTION-MR(GT-A),S5FA/T
- drive
- 4WD
- transmission
- S5FA/T
- grade
- EVOLUTION/EVOLU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
31000A
|
31000A
3401A066 SHAFT ASSY, PROPELLER |
3401A066 |
US $1,728 |
||
|
31031B
|
31031B
MB661705 BOOT KIT, PROPELLER SHAFTDoj |
MB661705 |
from US $87.75 |
||
|
31031C
|
31031C
MR246518
BOOT KIT, PROPELLER SHAFT
|
MR246518 |
— | ||
|
31032B
|
31032B
MB661414 JOINT KIT, PROPELLER SHAFTDoj |
MB661414 |
US $270.84 |
||
|
31032C
|
31032C
MR246517
JOINT KIT, PROPELLER SHAFT
|
MR246517 |
— | ||
|
31078
|
31078
MR263342 PLATE, PROPELLER SHAFT JOINT |
MR263342 |
US $145.78 |
||
|
31090B
|
31090B
MF450405 WASHER, CYLINDER HEADSpring,8 |
MF450405 |
from US $0.43 |
||
|
31090D
|
31090D
MS450042 WASHER, PROPELLER SHAFTSpring,8 |
MS450042 |
from US $1.79 |
||
|
31090E
|
31090E
MB505112 WASHER, PROPELLER SHAFT80 |
MB505112 |
US $20.52 |
||
|
31090F
|
31090F
MT203641 WASHER, PROPELLER SHAFTPlain,18.5 |
MT203641 |
from US $4.76 |
||
|
31092B
|
31092B
MB661413 SNAP RING, PROPELLER SHAFT24.2 |
MB661413 |
US $4.59 |
||
|
31092C
|
31092C
MB505107 SNAP RING, PROPELLER SHAFT21.3 |
MB505107 |
US $5.62 |
||
|
31096B
|
31096B
MB154075 NUT, PROPELLER SHAFT8 |
MB154075 |
from US $1.37 |
||
|
31096C
|
31096C
MB288653 NUT, ENG RR MOUNTINGFlange self locking,10 |
MB288653 |
from US $1.42 |
||
|
31096D
|
31096D
MB154075 NUT, PROPELLER SHAFT8 |
MB154075 |
from US $1.37 |
||
|
31096F
|
31096F
MA143517 NUT, PROPELLER SHAFTLock,18 |
MA143517 |
from US $4.76 |
||
|
31096H
|
31096H
MF434104 NUT, ROCKER COVERFlange,8 |
MF434104 |
from US $0.55 |
||
|
31099B
|
31099B
MB661372 BOLT, PROPELLER SHAFTHexagon socket head,8x80 |
MB661372 |
US $4.24 |
||
|
31099C
|
31099C
MB000938 BOLT, PROPELLER SHAFT8x25 |
MB000938 |
from US $2.07 |
||
|
31099D
|
31099D
MB661372 BOLT, PROPELLER SHAFTHexagon socket head,8x80 |
MB661372 |
US $4.24 |
||
|
31099G
|
31099G
MB505111 BOLT, PROPELLER SHAFTHexagon socket head,8x48 |
MB505111 |
US $5.62 |
||
|
31107
|
31107
MR953150 CENTER BEARING, PROPELLER SHAFT, FR |
MR953150 |
from US $54.80 |
||
|
31109
|
31109
MR553202 CENTER BEARING, PROPELLER SHAFT, RR |
MR553202 |
from US $55.59 |
||
|
31118
|
31118
MB837586 INSULATOR, PROPELLER SHAFT CTR BEARING, UPR |
MB837586 |
from US $5.36 |
||
|
31119
|
31119
MB837586 INSULATOR, PROPELLER SHAFT CTR BEARING, UPR |
MB837586 |
from US $5.36 |
||
|
31812
|
31812
MB505213
FLANGE, PROPELLER SHAFT COMPANION
|
MB505213 |
— | ||
|
31812B
|
31812B
MR145248
FLANGE, PROPELLER SHAFT COMPANION
|
MR145248 |
— | ||
|
31833
|
31833
MR581330
PROTECTOR, PROPELLER SHAFT
|
MR581330 |
— | ||
|
31843
|
31843
MB505658 SPACER, PROPELLER SHAFT |
MB505658 |
from US $5.97 |
