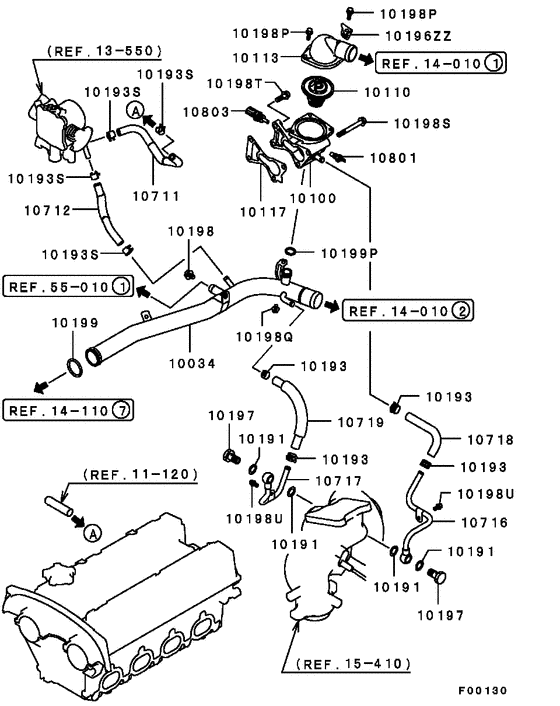

Water pipe & thermostat (A/T) Diagram Mitsubishi LANCER
- Year
- 2005 - 2006
- Sales region
- Japan
- Note
- EVOLUTION/EVOLUTION-MR(GT-A),S5FA/T
- drive
- 4WD
- transmission
- S5FA/T
- grade
- EVOLUTION/EVOLU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
10034
|
10034
MD379663 PIPE, WATER PUMP INLET |
MD379663 |
US $122.84 |
||
|
10100
|
10100
MD363250 CASE, THERMOSTAT |
MD363250 |
from US $118.09 |
||
|
10110
|
10110
MD363571 THERMOSTAT KIT |
MD363571 |
from US $44.99 |
||
|
10113
|
10113
MD363251 FITTING, COOLING WATER OUTLET HOSE |
MD363251 |
from US $64.98 |
||
|
10117
|
10117
MD363254 GASKET, THERMOSTAT CASE |
MD363254 |
from US $2.98 |
||
|
10191
|
10191
MF660065 GASKET, CYLINDER BLOCKD=14 |
MF660065 |
from US $0.78 |
||
|
10193
|
10193
MS660242 CLIP, COOLING WATER LINE14.8 |
MS660242 |
from US $1.58 |
||
|
10193S
|
10193S
MS660240 CLIP, ROCKER COVERD=13.1 |
MS660240 |
from US $0.86 |
||
|
10196ZZ
|
10196ZZ
MR988628 BRACKET, COOLING WATER LINE |
MR988628 |
US $6.36 |
||
|
10197
|
10197
MF650114 EYEBOLT, COOLING WATER LINE14x27 |
MF650114 |
from US $5.61 |
||
|
10198
|
10198
MF140021 BOLT, ACCEL CABLE SUPPORTFlange,8x12 |
MF140021 |
from US $0.43 |
||
|
10198P
|
10198P
MF140207 BOLT, ROCKER COVERFlange,6x20 |
MF140207 |
from US $0.72 |
||
|
10198Q
|
10198Q
MF140202 BOLT, FLANGE (6x10)Flange,6x10 |
MF140202 |
from US $1.66 |
||
|
10198S
|
10198S
MF140239 BOLT, TIMING GEAR CASEFlange,8x70 |
MF140239 |
from US $1.99 |
||
|
10198T
|
10198T
MF140227 BOLT, ROCKER COVERFlange,8x25 |
MF140227 |
from US $0.96 |
||
|
10198U
|
10198U
MF140203 BOLT, ACCEL CABLE SUPPORTFlange,6x12 |
MF140203 |
from US $0.78 |
||
|
10199
|
10199
MD030764 O-RING, WATER PUMP INRD=33.4 |
MD030764 |
from US $2.81 |
||
|
10199P
|
10199P
MD030763 O-RING, COOLING WATER LINE |
MD030763 |
from US $2.26 |
||
|
10711
|
10711
1310A087 HOSE, THROTTLE BODY WATER FEED |
1310A087 |
from US $11.35 |
||
|
10712
|
10712
1310A086 HOSE, THROTTLE BODY WATER RETURN |
1310A086 |
from US $8.05 |
||
|
10716
|
10716
MD363253 PIPE, T/C WATER FEED |
MD363253 |
US $20.52 |
||
|
10717
|
10717
MD342255 PIPE, T/C WATER RETURN |
MD342255 |
US $57.46 |
||
|
10718
|
10718
MD363256 HOSE, T/C WATER FEED |
MD363256 |
from US $6.59 |
||
|
10719
|
10719
MD366383 HOSE, T/C WATER RETURN9x200 |
MD366383 |
from US $21.76 |
||
|
10801
|
10801
MD091056 GAUGE UNIT, WATER TEMPERATURE |
MD091056 |
from US $33.01 |
||
|
10803
|
10803
MD177572
SENSOR UNIT, WATER TEMPERATURE
|
MD177572 |
— | ||
| replacement | |||||
|
10803
|
10803
1308A012 SENSOR UNIT, WATER TEMPERATURE |
1308A012 |
from US $29.64 |
||
|
11 120
|
Cylinder head
11 120
|
||||
|
13 550
|
Injector & throttle body
13 550
|
||||
|
13 550
|
Injector & throttle body
13 550
|
||||
|
14 010
|
Radiator,hose & condenser tank
14 010
|
||||
|
14 110
|
Water pump
14 110
|
||||
|
14 110
|
Water pump
14 110
|
||||
|
15 410
|
Turbocharger & supercharger
15 410
|
||||
|
15 410
|
Turbocharger & supercharger
15 410
|
||||
|
15 410
|
Turbocharger & supercharger
15 410
|
||||
|
55 010
|
Heater unit & piping
55 010
|
||||
|
55 010
|
Heater unit & piping
55 010
|
||||
|
55 010
|
Heater unit & piping
55 010
|
||||
