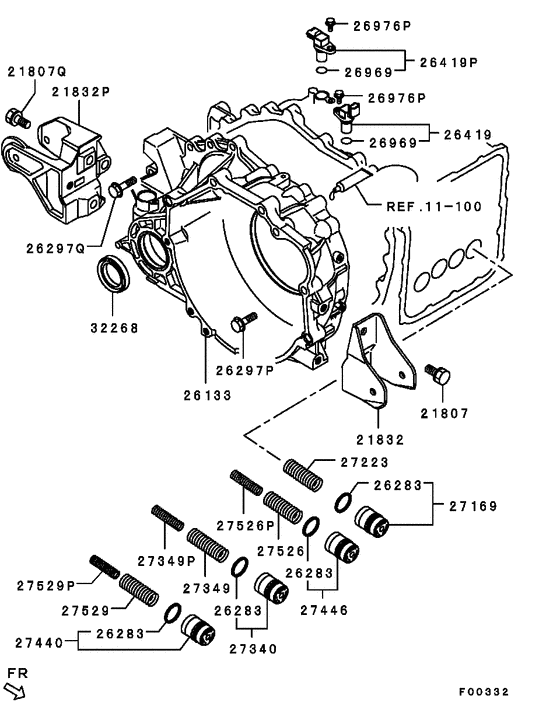

A/t case (ALL (CONVERTER HOUSING,ACCUMULATOR)) Diagram Mitsubishi LANCER
- Year
- 2007 - 2009
- Sales region
- EUR
- Note
- INFORM(2WD/EURO4),4FA/T RHD
- drive
- 2WD
- transmission
- 4FA/T
- grade
- INFORM
- body
- SEDAN
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
21807
|
21807
MF140283 BOLT, INLET MANIFOLDFlange,12x25 |
MF140283 |
from US $1.56 |
||
|
21807Q
|
21807Q
MF140287 BOLT, RR SUSP SPRINGFlange,12x35 |
MF140287 |
from US $2.44 |
||
|
21832
|
21832
1092A069
BRACKET,T/M CASE ROLL STOPPER
|
1092A069 |
— | ||
|
21832P
|
21832P
1092A070 BRACKET,T/M CASE ROLL STOPPER |
1092A070 |
US $57.99 |
||
|
26133
|
26133
2701A076
HOUSING,A/T TORQUE CONVERTER
|
2701A076 |
— | ||
|
26283
|
26283
MD752074 SEAL RING, A/T CASE29.6 |
MD752074 |
from US $7 |
||
|
26297P
|
26297P
MF140264 BOLT, ENG RR PLATEFlange,10x35 |
MF140264 |
US $3.28 |
||
|
26297Q
|
26297Q
MF140266 BOLT, TIMING BELT TRAINFlange,10x40 |
MF140266 |
from US $1.48 |
||
|
26419
|
26419
MR567292
SENSOR, A/T SPEED
|
MR567292 |
— | ||
| replacement | |||||
|
26419
|
26419
8651A027 SENSOR, A/T SPEED |
8651A027 |
from US $83.83 |
||
|
26419P
|
26419P
MR534577 SENSOR, A/T SPEED |
MR534577 |
from US $102.26 |
||
| replacement | |||||
|
26419P
|
26419P
8651A110
SENSOR, A/T SPEED
|
8651A110 |
— | ||
|
26969
|
26969
MD622021 O-RING, A/T CASE |
MD622021 |
from US $1.97 |
||
|
26976P
|
26976P
MF140204 BOLT, ACCEL CABLE SUPPORTFlange,6x14 |
MF140204 |
from US $0.80 |
||
|
27169
|
27169
MR336748 PISTON, A/T U/D CLUTCH ACCUMULATOR |
MR336748 |
US $12.86 |
||
|
27223
|
27223
MD757750 SPRING, A/T O/D CLUTCH ACCUMULATOR |
MD757750 |
from US $3.94 |
||
|
27340
|
27340
MR336748 PISTON, A/T U/D CLUTCH ACCUMULATOR |
MR336748 |
US $12.86 |
||
|
27349
|
27349
MD758143 SPRING, A/T U/D CLUTCH ACCUMULATOR PISTON |
MD758143 |
US $4.65 |
||
|
27349P
|
27349P
MD758144 SPRING, A/T U/D CLUTCH ACCUMULATOR PISTON |
MD758144 |
from US $2.50 |
||
|
27440
|
27440
MR336748 PISTON, A/T U/D CLUTCH ACCUMULATOR |
MR336748 |
US $12.86 |
||
|
27446
|
27446
MR336748 PISTON, A/T U/D CLUTCH ACCUMULATOR |
MR336748 |
US $12.86 |
||
|
27526
|
27526
MD758138 SPRING, A/T 2ND BRAKE ACCUMULATOR |
MD758138 |
US $7.70 |
||
|
27526P
|
27526P
MD758140 SPRING, A/T 2ND BRAKE ACCUMULATOR |
MD758140 |
US $7.11 |
||
|
27529
|
27529
MD757750 SPRING, A/T O/D CLUTCH ACCUMULATOR |
MD757750 |
from US $3.94 |
||
|
27529P
|
27529P
MD758139 SPRING, A/T L-R BRAKE ACCUMULATOR PISTON |
MD758139 |
US $4.10 |
||
|
32268
|
32268
MN130496 OIL SEAL, T/M FR DIFF CASE |
MN130496 |
from US $4.37 |
||
|
32268
|
32268
MN130498 OIL SEAL, T/M FR DIFF CASE |
MN130498 |
from US $4.54 |
||
|
11 100
|
Liquid gasket
11 100
|
||||
