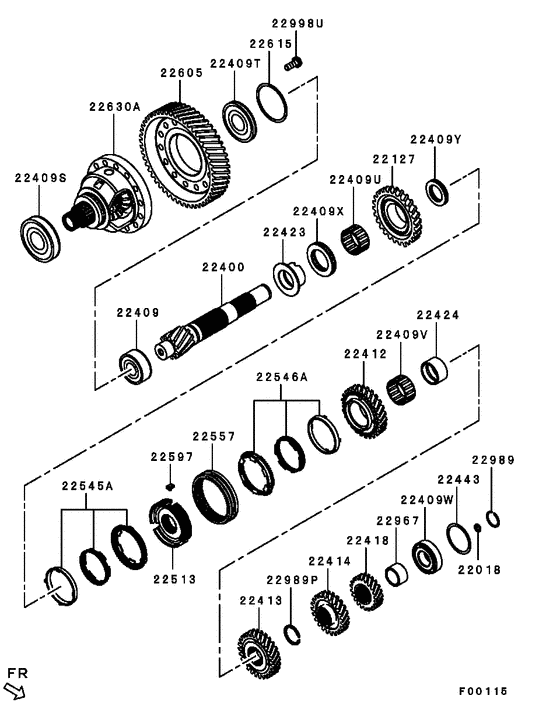

M/t gear (5-SPEED (OUTPUT SHAFT & DIFF CASE)) Diagram Mitsubishi LANCER
- Year
- 2007 - 2009
- Sales region
- MMNA
- Note
- EVOLUTION-GSR,5FM/T NAS
- drive
- 4WD
- transmission
- 5FM/T
- grade
- EVOLUTION-GSR
- body
- SEDAN
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
22018
|
22018
MD746516 OIL SEAL, M/T INPUT SHAFT RR END |
MD746516 |
US $3.28 |
||
|
22127
|
22127
2528A227 GEAR, M/T MAIN SHAFT 1ST SPEEDN=40 |
2528A227 |
US $328.54 |
||
|
22400
|
22400
2522A153 SHAFT, M/T OUTPUT |
2522A153 |
US $355.26 |
||
|
22409
|
22409
2522A071 BEARING, M/T OUTPUT SHAFTRoller,26 |
2522A071 |
from US $47.17 |
||
|
22409S
|
22409S
2522A076 BEARING, M/T OUTPUT SHAFTRoller,19 |
2522A076 |
US $133.38 |
||
|
22409T
|
22409T
2522A077 BEARING, M/T OUTPUT SHAFTRoller,19.5 |
2522A077 |
from US $32.92 |
||
|
22409U
|
22409U
2539A006 BEARING, M/T OUTPUT SHAFTNeedle roller,58 |
2539A006 |
from US $13.71 |
||
|
22409V
|
22409V
2539A006 BEARING, M/T OUTPUT SHAFTNeedle roller,58 |
2539A006 |
from US $13.71 |
||
|
22409W
|
22409W
2522A074 BEARING, M/T OUTPUT SHAFTRoller,18.25 |
2522A074 |
from US $30.07 |
||
|
22409X
|
22409X
2528A229 BEARING, M/T OUTPUT SHAFTThrust,3.6x77.1 |
2528A229 |
US $15.05 |
||
|
22409Y
|
22409Y
2528A184 BEARING, M/T POWER TRAINThrust,72.6 |
2528A184 |
from US $12.27 |
||
|
22412
|
22412
2528A228 GEAR, M/T OUTPUT SHAFT 2ND SPEEDN=39 |
2528A228 |
US $214.60 |
||
|
22413
|
22413
2528A176 GEAR, M/T OUTPUT SHAFT 3RD SPEEDN=39 |
2528A176 |
US $339.35 |
||
|
22414
|
22414
2528A177 GEAR, M/T OUTPUT SHAFT 4TH SPEEDN=34 |
2528A177 |
US $306.90 |
||
|
22418
|
22418
2528A231 GEAR, M/T OUTPUT SHAFT 5TH SPEEDN=32 |
2528A231 |
US $128.76 |
||
|
22423
|
22423
2528A221 SLEEVE, M/T OUTPUT SHAFT 1ST SPEED GEAR |
2528A221 |
US $57.72 |
||
|
22424
|
22424
2528A070 SLEEVE, M/T OUTPUT SHAFT 2ND SPEED GEAR |
2528A070 |
US $46.62 |
||
|
22443
|
22443
MD700270 SPACER, M/T DIFF1.13 |
MD700270 |
US $6.02 |
||
|
22443
|
22443
MD700271 SPACER, M/T DIFF1.22 |
MD700271 |
from US $5.11 |
||
|
22443
|
22443
MD706572 SPACER, M/T DIFF1.49 |
MD706572 |
US $5.18 |
||
|
22443
|
22443
MD706573 SPACER, M/T DIFF1.40 |
MD706573 |
from US $4.93 |
||
|
22443
|
22443
MD706574 SPACER, M/T DIFF1.31 |
MD706574 |
US $6.84 |
||
|
22443
|
22443
MD710454 SPACER, M/T DIFF1.10 |
MD710454 |
US $6.02 |
||
|
22443
|
22443
MD710455 SPACER, M/T DIFF1.16 |
MD710455 |
US $6.02 |
||
|
22443
|
22443
MD710456 SPACER, M/T DIFF1.19 |
MD710456 |
from US $4.93 |
||
|
22443
|
22443
MD710457 SPACER, M/T DIFF1.25 |
MD710457 |
US $6.02 |
||
|
22443
|
22443
MD710458 SPACER, M/T DIFF1.28 |
MD710458 |
US $6.84 |
||
|
22443
|
22443
MD710459 SPACER, M/T DIFF1.34 |
MD710459 |
US $6.84 |
||
|
22443
|
22443
MD710460 SPACER, M/T DIFF1.37 |
MD710460 |
from US $5.11 |
||
|
22443
|
22443
MD710461 SPACER, M/T DIFF1.43 |
MD710461 |
US $15.05 |
||
|
22443
|
22443
MD710462 SPACER, M/T DIFF1.46 |
MD710462 |
US $15.05 |
||
|
22443
|
22443
MD720938 SPACER, M/T DIFF0.86 |
MD720938 |
US $6.02 |
||
|
22443
|
22443
MD720939 SPACER, M/T DIFF0.89 |
MD720939 |
from US $5.11 |
||
|
22443
|
22443
MD720940 SPACER, M/T DIFF0.92 |
MD720940 |
from US $5.11 |
||
|
22443
|
22443
MD720941 SPACER, M/T DIFF0.95 |
MD720941 |
US $6.02 |
||
|
22443
|
22443
MD720942 SPACER, M/T DIFF0.98 |
MD720942 |
from US $5.11 |
||
|
22443
|
22443
MD720943 SPACER, M/T DIFF1.01 |
MD720943 |
US $6.02 |
||
|
22443
|
22443
MD720944 SPACER, M/T DIFF1.04 |
MD720944 |
US $6.02 |
||
|
22443
|
22443
MD720945 SPACER, M/T DIFF1.07 |
MD720945 |
US $6.02 |
||
|
22513
|
22513
2551A151 HUB, M/T 1ST & 2ND SYNCH |
2551A151 |
US $202.76 |
||
|
22545A
|
22545A
2551A124 RING ASSY, M/T 1ST SPEED GEAR SYNCH |
2551A124 |
US $100.55 |
||
|
22546A
|
22546A
2551A141 RING ASSY, M/T REV GEAR SYNCH |
2551A141 |
from US $100.55 |
||
|
22557
|
22557
2551A133 SLEEVE, M/T 1ST & 2ND SYNCH |
2551A133 |
US $127.22 |
||
|
22597
|
22597
2551A074 KEY, M/T SYNCH |
2551A074 |
from US $2.93 |
||
|
22605
|
22605
3512A048 GEAR, M/T DIFF DRIVEN=75 |
3512A048 |
US $291.56 |
||
|
22615
|
22615
2522A123 SPACER, M/T DIFFT=1.07 |
2522A123 |
US $5.77 |
||
|
22615
|
22615
2522A124 SPACER, M/T DIFFT=1.10 |
2522A124 |
US $5.77 |
||
|
22615
|
22615
2522A125 SPACER, M/T DIFFT=1.13 |
2522A125 |
US $5.77 |
||
|
22615
|
22615
2522A126 SPACER, M/T DIFFT=1.16 |
2522A126 |
US $5.18 |
||
|
22615
|
22615
2522A127 SPACER, M/T DIFFT=1.19 |
2522A127 |
US $5.18 |
||
|
22615
|
22615
2522A128 SPACER, M/T DIFFT=1.22 |
2522A128 |
US $5.18 |
||
|
22615
|
22615
2522A129 SPACER, M/T DIFFT=1.25 |
2522A129 |
US $5.18 |
||
|
22615
|
22615
2522A130 SPACER, M/T DIFFT=1.28 |
2522A130 |
US $5.18 |
||
|
22615
|
22615
2522A131 SPACER, M/T DIFFT=1.31 |
2522A131 |
US $5.18 |
||
|
22615
|
22615
2522A132 SPACER, M/T DIFFT=1.34 |
2522A132 |
US $5.18 |
||
|
22615
|
22615
2522A133 SPACER, M/T DIFFT=1.37 |
2522A133 |
US $5.18 |
||
|
22615
|
22615
2522A134 SPACER, M/T DIFFT=1.40 |
2522A134 |
US $5.18 |
||
|
22615
|
22615
2522A135 SPACER, M/T DIFFT=1.43 |
2522A135 |
US $5.18 |
||
|
22615
|
22615
2522A136 SPACER, M/T DIFFT=1.46 |
2522A136 |
US $5.18 |
||
|
22615
|
22615
2522A137 SPACER, M/T DIFFT=1.49 |
2522A137 |
US $5.18 |
||
|
22615
|
22615
2522A138 SPACER, M/T DIFFT=1.52 |
2522A138 |
US $5.18 |
||
|
22615
|
22615
2522A139 SPACER, M/T DIFFT=1.55 |
2522A139 |
US $5.18 |
||
|
22630A
|
22630A
3560A003 DIFFERENTIAL & GEAR ASSY, M/T |
3560A003 |
from US $789.10 |
||
|
22967
|
22967
2537A002 COLLAR, M/T POWER TRAIN |
2537A002 |
US $13.91 |
||
|
22989
|
22989
2526A103 SNAP RING, M/T POWER TRAINT=1.31 |
2526A103 |
US $2.87 |
||
|
22989
|
22989
2526A104 SNAP RING, M/T POWER TRAINT=1.35 |
2526A104 |
US $2.96 |
||
|
22989
|
22989
2526A105 SNAP RING, M/T POWER TRAINT=1.39 |
2526A105 |
US $2.96 |
||
|
22989
|
22989
2526A106 SNAP RING, M/T POWER TRAINT=1.43 |
2526A106 |
US $2.96 |
||
|
22989
|
22989
2526A107 SNAP RING, M/T POWER TRAINT=1.47 |
2526A107 |
US $2.96 |
||
|
22989
|
22989
2526A108 SNAP RING, M/T POWER TRAINT=1.51 |
2526A108 |
US $2.96 |
||
|
22989
|
22989
2526A109 SNAP RING, M/T POWER TRAINT=1.55 |
2526A109 |
US $2.96 |
||
|
22989
|
22989
2526A110 SNAP RING, M/T POWER TRAINT=1.59 |
2526A110 |
from US $2.55 |
||
|
22989
|
22989
2526A111 SNAP RING, M/T POWER TRAINT=1.63 |
2526A111 |
US $2.96 |
||
|
22989
|
22989
2526A112 SNAP RING, M/T POWER TRAINT=1.67 |
2526A112 |
US $2.96 |
||
|
22989
|
22989
2526A113 SNAP RING, M/T POWER TRAINT=1.71 |
2526A113 |
US $2.96 |
||
|
22989P
|
22989P
2522A098 SNAP RING, M/T POWER TRAINT=2.23 |
2522A098 |
US $3.83 |
||
|
22989P
|
22989P
2522A099 SNAP RING, M/T POWER TRAINT=2.27 |
2522A099 |
US $4 |
||
|
22989P
|
22989P
2522A100 SNAP RING, M/T POWER TRAINT=2.31 |
2522A100 |
US $4 |
||
|
22989P
|
22989P
2522A101 SNAP RING, M/T POWER TRAINT=2.35 |
2522A101 |
US $4 |
||
|
22989P
|
22989P
2522A102 SNAP RING, M/T POWER TRAINT=2.39 |
2522A102 |
US $4 |
||
|
22989P
|
22989P
2522A103 SNAP RING, M/T POWER TRAINT=2.43 |
2522A103 |
US $4 |
||
|
22989P
|
22989P
2522A104 SNAP RING, M/T POWER TRAINT=2.47 |
2522A104 |
US $4 |
||
|
22989P
|
22989P
2522A105 SNAP RING, M/T POWER TRAINT=2.51 |
2522A105 |
US $4 |
||
|
22989P
|
22989P
2522A106 SNAP RING, M/T POWER TRAINT=2.55 |
2522A106 |
US $6.29 |
||
|
22989P
|
22989P
2522A107 SNAP RING, M/T POWER TRAINT=2.59 |
2522A107 |
US $4 |
||
|
22989P
|
22989P
2522A108 SNAP RING, M/T POWER TRAINT=2.63 |
2522A108 |
US $4 |
||
|
22989P
|
22989P
2522A109 SNAP RING, M/T POWER TRAINT=2.67 |
2522A109 |
US $4 |
||
|
22998U
|
22998U
MD952231 BOLT, A/T DRIVE PLATEFlange,12x29 |
MD952231 |
from US $2.91 |
