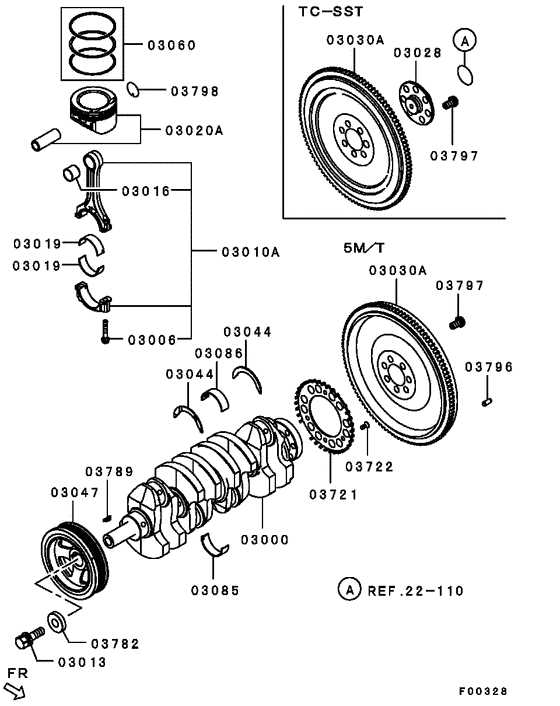

Piston & crankshaft (W/TURBO) Diagram Mitsubishi LANCER EVOLUTION
- Year
- 2008 - 2009
- Sales region
- Japan
- Note
- RALLIART EDITION(4WD),TC-SST<6MT>
- drive
- 4WD
- transmission
- <6MT>
- grade
- RALLIART EDITIO
- body
- SEDAN
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
03000
|
03000
1100A122
CRANKSHAFT
|
1100A122 |
— | ||
|
03000
|
03000
1100A139 CRANKSHAFT |
1100A139 |
US $1,199.74 |
||
|
03006
|
03006
1115A172 BOLT, CONNROD |
1115A172 |
from US $1.29 |
||
|
03006
|
03006
MN195112 BOLT, CONNROD8x41 |
MN195112 |
from US $1.50 |
||
|
03010A
|
03010A
1115A068
CONNECTING ROD ASSY
|
1115A068 |
— | ||
|
03010A
|
03010A
1115A304 CONNECTING ROD ASSY |
1115A304 |
US $123.12 |
||
|
03013
|
03013
1100A118 CENTER BOLT, CRANKSHAFT PULLEY16x52 |
1100A118 |
from US $7.18 |
||
|
03013
|
03013
1101A022 CENTER BOLT, CRANKSHAFT PULLEY14x40 |
1101A022 |
from US $9.30 |
||
|
03016
|
03016
1115A196 BUSHING, CONNROD25x20 |
1115A196 |
US $5.61 |
||
|
03019
|
03019
1115A149
BEARING, CONNROD
|
1115A149 |
— | ||
| replacement | |||||
|
03019
|
03019
1115A761 BEARINGCONNROD STD |
1115A761 |
from US $6.10 |
||
|
03019
|
03019
1115A150
BEARING, CONNROD
|
1115A150 |
— | ||
| replacement | |||||
|
03019
|
03019
1115A762 BEARINGCONNROD STD |
1115A762 |
from US $5.85 |
||
|
03019
|
03019
1115A151
BEARING, CONNROD
|
1115A151 |
— | ||
| replacement | |||||
|
03019
|
03019
1115A763 BEARINGCONNROD |
1115A763 |
from US $6.45 |
||
|
03019
|
03019
1115A352 BEARING, CONNRODPlain,std 1 |
1115A352 |
from US $6.90 |
||
|
03019
|
03019
1115A353 BEARING, CONNRODPlain,std 2 |
1115A353 |
from US $7.39 |
||
|
03019
|
03019
1115A354 BEARING, CONNRODPlain,std 3 |
1115A354 |
US $11.90 |
||
|
03020A
|
03020A
1110B478 PISTON & PIN ASSYStd a |
1110B478 |
US $79.18 |
||
|
03020A
|
03020A
1110B479 PISTON & PIN ASSYStd b |
1110B479 |
US $79.18 |
||
|
03020A
|
03020A
1110B480 PISTON & PIN ASSYStd c |
1110B480 |
US $79.18 |
||
|
03020A
|
03020A
1110B727 PISTON & PIN ASSYStd a |
1110B727 |
US $87.32 |
||
|
03020A
|
03020A
1110B728 PISTON & PIN ASSYStd b |
1110B728 |
US $87.32 |
||
|
03020A
|
03020A
1110B729 PISTON & PIN ASSYStd c |
1110B729 |
US $87.32 |
||
|
03028
|
03028
2701A043 ADAPTER, FLYWHEEL |
2701A043 |
US $75.24 |
||
|
03030A
|
03030A
1120A157 FLYWHEEL ASSY |
1120A157 |
US $273.80 |
||
|
03044
|
03044
1052A698 PLATE, CRANKSHAFT THRUST |
1052A698 |
from US $9.34 |
||
|
03044
|
03044
MN176556 PLATE, CRANKSHAFT THRUST |
MN176556 |
from US $8.39 |
||
|
03047
|
03047
1104A052
PULLEY, CRANKSHAFT
|
1104A052 |
— | ||
| replacement | |||||
|
03047
|
03047
1104A102
PULLEY, CRANKSHAFT
|
1104A102 |
— | ||
|
03047
|
03047
1104A074 PULLEY, CRANKSHAFTRibbed |
1104A074 |
US $254.45 |
||
|
03060
|
03060
1110A436 RING SET, PISTONStd |
1110A436 |
from US $29.80 |
||
|
03060
|
03060
1110B605 RING SET, PISTONStd |
1110B605 |
from US $42.45 |
||
|
03085
|
03085
1052A538 BEARING, CRANKSHAFT, LWRPlain,std 0 |
1052A538 |
from US $5.05 |
||
|
03085
|
03085
1052A539 BEARING, CRANKSHAFT, LWRPlain,std 1 |
1052A539 |
from US $8.05 |
||
|
03085
|
03085
1052A540 BEARING, CRANKSHAFT, LWRPlain,std 2 |
1052A540 |
from US $8.07 |
||
|
03085
|
03085
1052A541 BEARING, CRANKSHAFT, LWRPlain,std 3 |
1052A541 |
from US $7.74 |
||
|
03085
|
03085
1052A542 BEARING, CRANKSHAFT, LWRPlain,std 4 |
1052A542 |
US $12.58 |
||
|
03085
|
03085
1052B036 BEARING, CRANKSHAFT, LWRPlain,std 8 |
1052B036 |
from US $7.82 |
||
|
03085
|
03085
1052B037 BEARING, CRANKSHAFT, LWRPlain,std 9 |
1052B037 |
from US $7.94 |
||
|
03085
|
03085
1052B038 BEARING, CRANKSHAFT, LWRPlain,std 0 |
1052B038 |
from US $7.94 |
||
|
03085
|
03085
1052B039 BEARING, CRANKSHAFT, LWRPlain,std 1 |
1052B039 |
US $12.58 |
||
|
03085
|
03085
1052B040 BEARING, CRANKSHAFT, LWRPlain,std 2 |
1052B040 |
US $15.73 |
||
|
03085
|
03085
1052B041 BEARING, CRANKSHAFT, LWRPlain,std 3 |
1052B041 |
US $13 |
||
|
03085
|
03085
1052B042 BEARING, CRANKSHAFT, LWRPlain,std 4 |
1052B042 |
from US $7.08 |
||
|
03086
|
03086
1052A535 BEARING, CRANKSHAFT, UPRPlain,std 1 |
1052A535 |
from US $7.25 |
||
|
03086
|
03086
1052A536 BEARING, CRANKSHAFT, UPRPlain,std 2 |
1052A536 |
from US $6.03 |
||
|
03086
|
03086
1052A537 BEARING, CRANKSHAFT, UPRPlain,std 3 |
1052A537 |
from US $6.01 |
||
|
03086
|
03086
1052B032 BEARING, CRANKSHAFT, UPRPlain,std 0 |
1052B032 |
from US $7.78 |
||
|
03086
|
03086
1052B033 BEARING, CRANKSHAFT, UPRPlain,std 1 |
1052B033 |
from US $7.78 |
||
|
03086
|
03086
1052B034 BEARING, CRANKSHAFT, UPRPlain,std 2 |
1052B034 |
from US $7.94 |
||
|
03086
|
03086
1052B035 BEARING, CRANKSHAFT, UPRPlain,std 3 |
1052B035 |
from US $7.94 |
||
|
03721
|
03721
1865A004 RING, CRANKSHAFT SENSING |
1865A004 |
US $34.88 |
||
|
03721
|
03721
1865A100 RING, CRANKSHAFT SENSING |
1865A100 |
US $33.52 |
||
|
03722
|
03722
1865A047 SCREW, CRANKSHAFT |
1865A047 |
US $2.74 |
||
|
03782
|
03782
1100A116 WASHER, CRANKSHAFT PULLEY16.5 |
1100A116 |
from US $9.17 |
||
|
03782
|
03782
1101A015 WASHER, CRANKSHAFT PULLEY14.5 |
1101A015 |
from US $4.89 |
||
|
03789
|
03789
1130A024 KEY, CRANKSHAFT |
1130A024 |
from US $2.79 |
||
|
03797
|
03797
1120A062 BOLT, FLYWHEEL12x19.5 |
1120A062 |
from US $1.48 |
||
|
03797
|
03797
1120A138 BOLT, FLYWHEEL |
1120A138 |
US $2.22 |
||
|
03798
|
03798
1110A063 SNAP RING, PISTON |
1110A063 |
US $1.78 |
||
|
22 110
|
M/t case
22 110
|
||||
