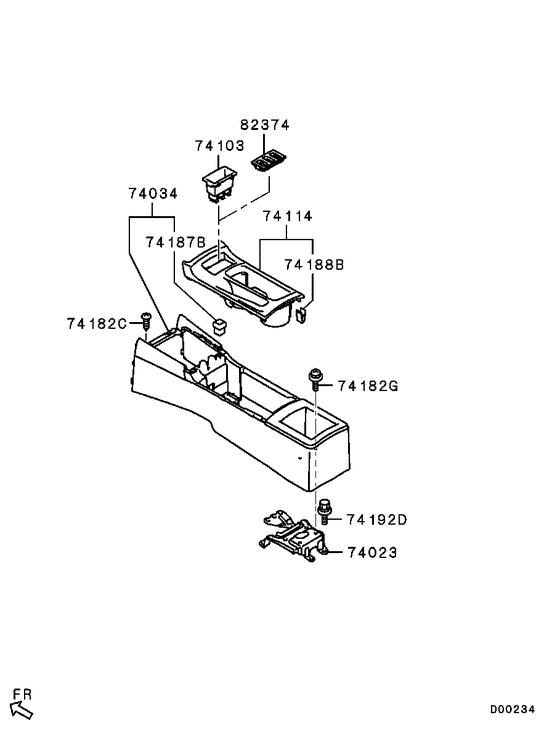

Console (REAR..W/O LID) Diagram Mitsubishi LANCER EVOLUTION
- Year
- 2007 - 2009
- Sales region
- Japan
- Note
- EVOLUTION-10/RS,5FM/T
- drive
- 4WD
- transmission
- 5FM/T
- grade
- EVOLUTION-10/RS
- body
- SEDAN
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
74023
|
74023
8011A227 BRACKET, FLOOR CONSOLE, RR |
8011A227 |
US $33.30 |
||
|
74034
|
74034
8011A370XA CONSOLE, FLOOR |
8011A370XA |
US $172.37 |
||
|
74103
|
74103
8011A266XA TRAY, FLOOR CONSOLE |
8011A266XA |
US $8.29 |
||
|
74114
|
74114
8041A022XA HOLDER, FLOOR CONSOLE BOX CUP |
8041A022XA |
US $29.60 |
||
|
74182C
|
74182C
MF453033 SCREW, TAPPING, 5x16Tapping,5x16 |
MF453033 |
from US $1.66 |
||
|
74182G
|
74182G
MS240179 BOLT, FR BUMPERWasher assembled,6x16 |
MS240179 |
from US $0.88 |
||
|
74187B
|
74187B
8011A617 GROMMET, FLOOR CONSOLE |
8011A617 |
US $2.37 |
||
|
74188B
|
74188B
MR402859 CLIP, FLOOR CONSOLE |
MR402859 |
from US $1.66 |
||
|
74192D
|
74192D
MS240027 BOLT, ENG CONTROL EQUIPWasher assembled,5x16 |
MS240027 |
US $1.92 |
||
|
74192D
|
74192D
MS240029 BOLT, FUEL FILLER LID PANELWasher assembled,5x12 |
MS240029 |
US $2.05 |
||
|
74192D
|
74192D
MS240125 BOLT, FUEL TANKWasher assembled,8x20 |
MS240125 |
from US $1.05 |
||
|
82374
|
82374
8011A267 PANEL, FLOOR CONSOLE SWITCH |
8011A267 |
from US $6.49 |
