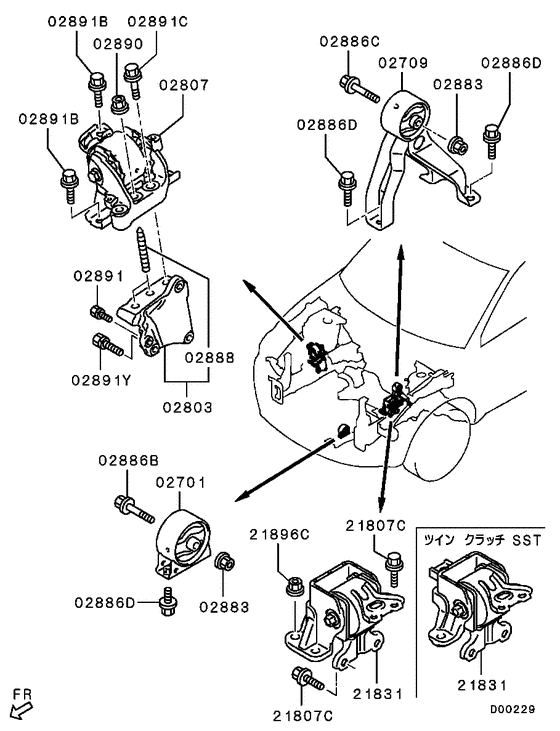

Engine mounting & support (W/TURBO) Diagram Mitsubishi LANCER EVOLUTION
- Year
- 2007 - 2009
- Sales region
- Japan
- Note
- EVOLUTION-10/RS,5FM/T
- drive
- 4WD
- transmission
- 5FM/T
- grade
- EVOLUTION-10/RS
- body
- SEDAN
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
02701
|
02701
MN184347 BRACKET, ENG ROLL STOPPER |
MN184347 |
from US $63.32 |
||
|
02709
|
02709
1092A067 BRACKET, ENG RR ROLL STOPPER |
1092A067 |
from US $63.84 |
||
|
02803
|
02803
1091A081 BRACKET, CYLINDER BLOCK ENG FR MOUNTING |
1091A081 |
US $93.98 |
||
|
02807
|
02807
MN184341 BRACKET, ENG FR MOUNTING |
MN184341 |
from US $175.10 |
||
|
02883
|
02883
MF434105 NUT, CYLINDER BLOCKFlange,10 |
MF434105 |
from US $1.19 |
||
|
02886B
|
02886B
MF140275 BOLT, EXHAUST PIPEFlange,10x85 |
MF140275 |
from US $3.30 |
||
|
02886C
|
02886C
MR235604 BOLT, ENG SUPPORT RODFlange,10x94 |
MR235604 |
from US $4.23 |
||
|
02886D
|
02886D
MF911641 BOLT, ENG SUPPORT RODFlange,10x25 |
MF911641 |
from US $1.11 |
||
|
02886D
|
02886D
MU000343 BOLT, FR SUSP STABILIZERFlange,10x25 |
MU000343 |
from US $1.48 |
||
|
02888
|
02888
MN158328 STUD, ENG MOUNTING12x70 |
MN158328 |
US $4.92 |
||
|
02890
|
02890
MU431006 NUT, ENG MOUNTING |
MU431006 |
from US $1.44 |
||
|
02891
|
02891
MF241257 BOLT, CRANKCASEWasher assembled,8x30 |
MF241257 |
from US $1.42 |
||
|
02891B
|
02891B
MF911641 BOLT, ENG SUPPORT RODFlange,10x25 |
MF911641 |
from US $1.11 |
||
|
02891B
|
02891B
MU000343 BOLT, FR SUSP STABILIZERFlange,10x25 |
MU000343 |
from US $1.48 |
||
|
02891C
|
02891C
MU140060 BOLT, FR WHEEL HUB12x50 |
MU140060 |
from US $2.63 |
||
|
02891Y
|
02891Y
MF241289 BOLT, ENG SUPPORT RODWasher assembled,10x45 |
MF241289 |
US $3.83 |
||
|
21807C
|
21807C
MF911641 BOLT, ENG SUPPORT RODFlange,10x25 |
MF911641 |
from US $1.11 |
||
|
21807C
|
21807C
MU000343 BOLT, FR SUSP STABILIZERFlange,10x25 |
MU000343 |
from US $1.48 |
||
|
21831
|
21831
2910A086 BRACKET, T/M MOUNTING BODY SIDE |
2910A086 |
US $108.04 |
||
|
21896C
|
21896C
MF434106 NUT, ENG RR MOUNTINGFlange,12 |
MF434106 |
from US $1.17 |
