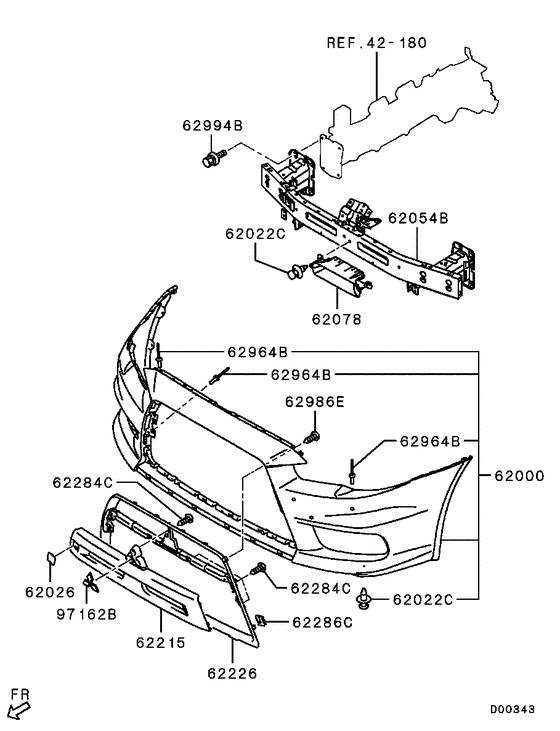

Front bumper & support (BUMPER FACE,RADIATOR GRILLE,ETC) Diagram Mitsubishi LANCER EVOLUTION
- Year
- 2007 - 2009
- Sales region
- Japan
- Note
- EVOLUTION-10/RS,5FM/T
- drive
- 4WD
- transmission
- 5FM/T
- grade
- EVOLUTION-10/RS
- body
- SEDAN
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
62000
|
62000
6400C166RA
FACE KIT, FR BUMPER
|
6400C166RA |
— | ||
|
62000
|
62000
6400C166WB FACE KIT, FR BUMPER |
6400C166WB |
US $831.38 |
||
|
62022C
|
62022C
MR200300 CLIP, FR BUMPER |
MR200300 |
from US $1.37 |
||
|
62026
|
62026
7450A361 COVER, FR BUMPER |
7450A361 |
US $10.81 |
||
|
62054B
|
62054B
6400B095 REINFORCEMENT, FR BUMPER |
6400B095 |
US $551.62 |
||
|
62078
|
62078
6405A101 DUCT, FR BUMPER AIR GUIDE, CTR |
6405A101 |
from US $13.34 |
||
|
62215
|
62215
7450A360 GARNISH, RADIATOR GRILLE |
7450A360 |
from US $119.83 |
||
|
62226
|
62226
7450A359 GUARD, RADIATOR GRILLE |
7450A359 |
from US $229.82 |
||
|
62284C
|
62284C
MF453017 SCREWTapping,4x12 |
MF453017 |
from US $1.46 |
||
|
62286C
|
62286C
MR384276 NUT, FR BUMPERSpring,5 |
MR384276 |
US $1.78 |
||
|
62964B
|
62964B
MU001319 RIVET, FR BUMPER |
MU001319 |
from US $1.70 |
||
|
62986E
|
62986E
MS450156 SCREW, CRUISE CONTROL ELECTRICALSTapping(flange head),5x12 |
MS450156 |
from US $3.16 |
||
|
62994B
|
62994B
MS240616 BOLT, BODY LOOSE PANELWasher assembled,8x25 |
MS240616 |
US $1.78 |
||
|
97162B
|
97162B
7415A148
MARK, THREE-DIA
|
7415A148 |
— | ||
| replacement | |||||
|
97162B
|
97162B
7415A603 MARK, THREE-DIA |
7415A603 |
from US $30.19 |
||
|
42 180
|
Front end panel
42 180
|
||||
