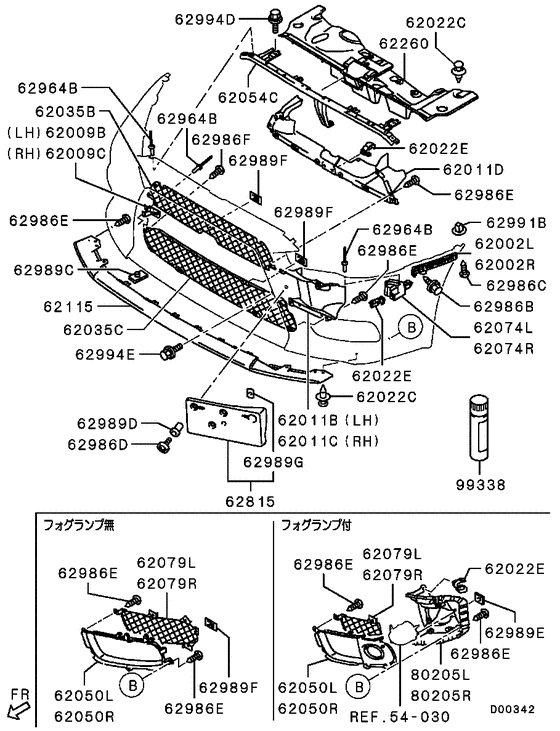

Front bumper & support (BUMPER INSTALLATION PARTS) Diagram Mitsubishi LANCER EVOLUTION
- Year
- 2007 - 2009
- Sales region
- Japan
- Note
- EVOLUTION-10/RS,5FM/T
- drive
- 4WD
- transmission
- 5FM/T
- grade
- EVOLUTION-10/RS
- body
- SEDAN
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
62002L
|
62002L
6400B107 BRACKET, FR BUMPER SIDE, LH |
6400B107 |
from US $7.98 |
||
|
62002R
|
62002R
6400B108 BRACKET, FR BUMPER SIDE, RH |
6400B108 |
from US $8.07 |
||
|
62009B
|
62009B
6400B821 BRACKET, FR BUMPER |
6400B821 |
from US $5.52 |
||
|
62009C
|
62009C
6400B822 BRACKET, FR BUMPER |
6400B822 |
from US $5.23 |
||
|
62011B
|
62011B
5379A173 COVER, FR BUMPER GRILLE |
5379A173 |
from US $12.59 |
||
|
62011C
|
62011C
5379A174 COVER, FR BUMPER GRILLE |
5379A174 |
from US $12.59 |
||
|
62011D
|
62011D
5379A171 COVER, FR BUMPER GRILLE |
5379A171 |
from US $26.19 |
||
|
62022C
|
62022C
MR200300 CLIP, FR BUMPER |
MR200300 |
from US $1.37 |
||
|
62035B
|
62035B
6402A109 NET, FR BUMPER |
6402A109 |
US $102.12 |
||
|
62035C
|
62035C
6402A110 NET, FR BUMPER |
6402A110 |
from US $125.86 |
||
|
62050L
|
62050L
6405A103 GARNISH, FR BUMPER, LH |
6405A103 |
from US $7.45 |
||
|
62050R
|
62050R
6405A104 GARNISH, FR BUMPER, RH |
6405A104 |
from US $7.41 |
||
|
62054C
|
62054C
6400A832 REINFORCEMENT, FR BUMPER |
6400A832 |
from US $89.88 |
||
|
62074L
|
62074L
6400A851 SUPPORT, FR BUMPER, LH |
6400A851 |
from US $4.84 |
||
|
62074R
|
62074R
6400A852 SUPPORT, FR BUMPER, RH |
6400A852 |
from US $4.82 |
||
|
62079L
|
62079L
6402A139 COVER, FR BUMPER AIR INTAKE, LH |
6402A139 |
from US $50.90 |
||
|
62079R
|
62079R
6402A140 COVER, FR BUMPER AIR INTAKE, RH |
6402A140 |
from US $48.01 |
||
|
62115
|
62115
6512A126 PANEL, AIR DAM SKIRT |
6512A126 |
from US $263.16 |
||
|
62260
|
62260
6400C085 COVER, HEADLAMP SUPPORT UPR PANEL |
6400C085 |
from US $34.71 |
||
|
62815
|
62815
6430A160 GARNISH, FR LICENSE PLATE |
6430A160 |
US $26.68 |
||
|
62964B
|
62964B
MU001319 RIVET, FR BUMPER |
MU001319 |
from US $1.70 |
||
|
62986B
|
62986B
MS452353 SCREW, P/S OIL PUMP6x16 |
MS452353 |
from US $1.64 |
||
|
62986C
|
62986C
MS452393 SCREW, OVERFENDERWasher assembled,6x20 |
MS452393 |
from US $2.73 |
||
|
62986D
|
62986D
MS350014 SCREW, FR BUMPERWasher assembled,6x30 |
MS350014 |
from US $2.40 |
||
|
62986E
|
62986E
MS450156 SCREW, CRUISE CONTROL ELECTRICALSTapping(flange head),5x12 |
MS450156 |
from US $3.16 |
||
|
62986F
|
62986F
MS450157 SCREW, ENG CONTROL EQUIPTapping,5x16 |
MS450157 |
from US $2.81 |
||
|
62989C
|
62989C
MS440191 NUT, CRUISE CONTROL ELECTRICALSSpring,6 |
MS440191 |
from US $1.66 |
||
|
62989D
|
62989D
MU435004 NUT, FR BUMPERRubber nut,6 |
MU435004 |
from US $1.74 |
||
|
62989E
|
62989E
MU432003 NUT, RR LAMPSpeed,4 |
MU432003 |
from US $1.48 |
||
|
62989F
|
62989F
MF445803 NUT, ENG STOP CONTROL LINKAGEPush-on spring,4 |
MF445803 |
US $2.46 |
||
|
62989G
|
62989G
MR971002 NUT, FR BUMPER6 |
MR971002 |
from US $1.77 |
||
|
62991B
|
62991B
MR393386 GROMMET, FR BUMPER6 |
MR393386 |
from US $1.68 |
||
|
62994D
|
62994D
MS240141 BOLT, FUEL FILLER LID PANELWasher assembled,6x16 |
MS240141 |
from US $1.25 |
||
|
62994E
|
62994E
MS240155 BOLT, WINDSHIELDWasher assembled,6x16 |
MS240155 |
from US $0.99 |
||
|
99338
|
99338
MZ103094 TOUCH-UP PAINT |
MZ103094 |
US $10.36 |
||
|
99338
|
99338
MZ103099 TOUCH-UP PAINT |
MZ103099 |
US $10.36 |
||
|
