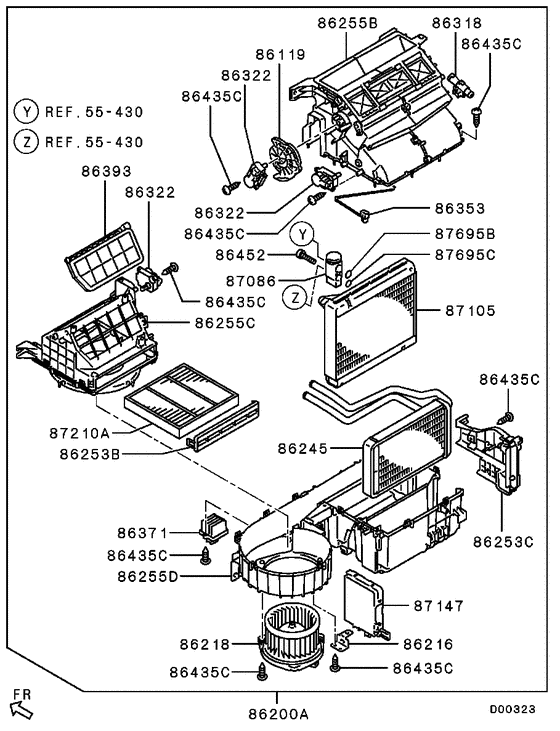

Heater unit & piping (DISASSEMBLED PARTS) Diagram Mitsubishi LANCER EVOLUTION
- Year
- 2007 - 2009
- Sales region
- Japan
- Note
- EVOLUTION-10/RS,5FM/T
- drive
- 4WD
- transmission
- 5FM/T
- grade
- EVOLUTION-10/RS
- body
- SEDAN
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
86119
|
86119
7820A176
LINK, HEATER AIR CONTROL DAMPER
|
7820A176 |
— | ||
|
86200A
|
86200A
7800A037
HEATER ASSY
|
7800A037 |
— | ||
|
86216
|
86216
7820A175
BRACKET, HEATER
|
7820A175 |
— | ||
|
86218
|
86218
7802A164
FAN & MOTOR KIT, HEATER
|
7802A164 |
— | ||
| replacements | |||||
|
86218
|
86218
7802A352 motor heater |
7802A352 |
from US $83.16 |
||
|
86218
|
86218
CSA431D248A FAN & MOTOR KIT, HEATER only for D:5 |
CSA431D248A |
US $83.16 |
||
|
86218
|
86218
7802A216
FAN & MOTOR KIT, HEATER
|
7802A216 |
— | ||
|
86245
|
86245
7801A009
CORE, HEATER
|
7801A009 |
— | ||
|
86253B
|
86253B
7803A029 COVER, HEATER SIDE |
7803A029 |
US $6.14 |
||
| replacement | |||||
|
86253B
|
86253B
CAB132A013
COVER, HEATER SIDE
|
CAB132A013 |
— | ||
|
86253C
|
86253C
7801A357
COVER, HEATER SIDE
|
7801A357 |
— | ||
|
86255B
|
86255B
7801A355
CASE, HEATER
|
7801A355 |
— | ||
|
86255C
|
86255C
7802A099
CASE, HEATER
|
7802A099 |
— | ||
|
86255D
|
86255D
7801A356
CASE, HEATER
|
7801A356 |
— | ||
|
86318
|
86318
7823A006 ASPIRATOR, HEATER CONTROL VACUUM |
7823A006 |
from US $8.06 |
||
|
86322
|
86322
7820A080 MOTOR, HEATER CONTROL |
7820A080 |
US $201.95 |
||
|
86353
|
86353
7825A037 THERMISTOR, A/C |
7825A037 |
US $19.46 |
||
| replacement | |||||
|
86353
|
86353
CSA551A038 THERMISTOR, A/C |
CSA551A038 |
US $20.59 |
||
|
86371
|
86371
7802A006 TRANSISTOR, HEATER CONTROL |
7802A006 |
US $49.12 |
||
| replacement | |||||
|
86371
|
86371
CSA555D057A TRANSISTOR, HEATER CONTROL |
CSA555D057A |
US $39.60 |
||
|
86393
|
86393
7802A100 DAMPER, HEATER BLOWER INSIDE AIR |
7802A100 |
US $12.10 |
||
|
86435C
|
86435C
7801A380
SCREW, HEATER
|
7801A380 |
— | ||
|
86452
|
86452
MR460368 BOLT, HEATER5x35 |
MR460368 |
from US $1.77 |
||
|
87086
|
87086
7810A126 VALVE, A/C EXPANSION |
7810A126 |
US $56.20 |
||
|
87105
|
87105
7810A125
EVAPORATOR, A/C
|
7810A125 |
— | ||
|
87147
|
87147
7820A209
CONTROL UNIT, A/C
|
7820A209 |
— | ||
|
87147
|
87147
7820A337
CONTROL UNIT, A/C
|
7820A337 |
— | ||
|
87210A
|
87210A
7803A043 AIR REFRESHER ASSY |
7803A043 |
US $52.56 |
||
| replacement | |||||
|
87210A
|
87210A
7803A005 AIR REFRESHER ASSY |
7803A005 |
from US $48.84 |
||
|
87695B
|
87695B
MR146634 O-RING, A/C PIPING5/8 |
MR146634 |
from US $1.10 |
||
|
87695C
|
87695C
MB946605 O-RING, RR A/C1/2 |
MB946605 |
from US $1.56 |
||
|
