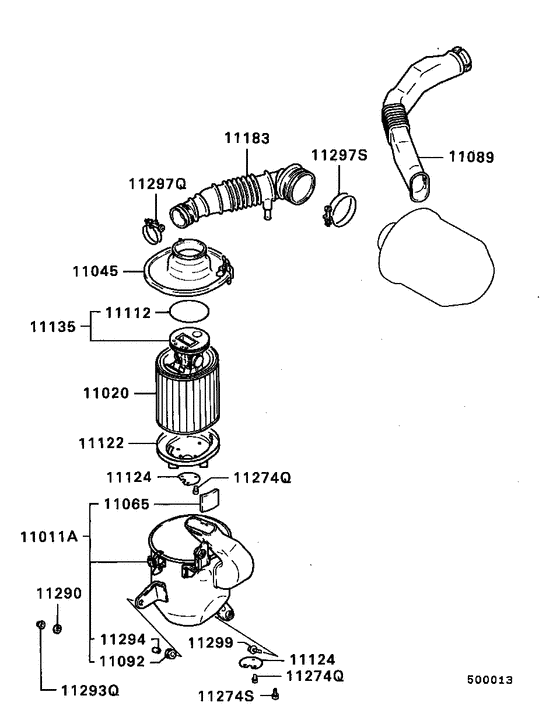

Air cleaner (ALL) Diagram Mitsubishi LANCER FIORE
- Year
- 1983 - 1985
- Sales region
- Japan
- Note
- GSR,3FA/T,4DR SEDAN
- transmission
- 3FA/T
- grade
- GSR
- body
- SEDAN
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11011A
|
11011A
MD603560 BODY ASSY, AIR CLEANER |
MD603560 |
US $358.18 |
||
|
11020
|
11020
MD607648
ELEMENT, AIR CLEANER
|
MD607648 |
— | ||
|
11045
|
11045
MD603569 COVER, AIR CLEANER |
MD603569 |
US $113.22 |
||
|
11065
|
11065
MD607707 FILTER, AIR CLEANER CRANKCASE VENTILATION |
MD607707 |
US $6.07 |
||
|
11089
|
11089
MD073645 DUCT, AIR CLEANER INTAKE |
MD073645 |
US $34.78 |
||
|
11089
|
11089
MD091667 DUCT, AIR CLEANER INTAKE |
MD091667 |
US $49.58 |
||
|
11092
|
11092
MD040886 INSULATOR, AIR CLEANER SUPPORT |
MD040886 |
US $3.83 |
||
|
11112
|
11112
MD607711 O-RING, AIR CLEANER |
MD607711 |
US $13.47 |
||
|
11122
|
11122
MD607702 PLATE, AIR CLEANER ELEMENT SUPPORT |
MD607702 |
US $39.22 |
||
|
11124
|
11124
MD607703 PLATE, AIR CLEANER DRAIN HOLE |
MD607703 |
US $6.36 |
||
|
11135
|
11135
MD077635 SENSOR, AIR CLEANER AIR FLOW |
MD077635 |
US $608.61 |
||
|
11183
|
11183
MD073646 DUCT, AIR CLEANER TO T/C |
MD073646 |
US $204.24 |
||
|
11274Q
|
11274Q
MF350744 SCREW, ENG BREATHERWasher assembled,4x10 |
MF350744 |
US $2.05 |
||
|
11274S
|
11274S
MF350747 SCREW, FUEL VAPOR CONTROL LINEWasher assembled,4x16 |
MF350747 |
US $1.92 |
||
|
11290
|
11290
MF450271 WASHER, FUEL LINEPlain,6 |
MF450271 |
US $2.60 |
||
|
11293Q
|
11293Q
MS440522 NUT, FUEL TANKWasher assembled,6 |
MS440522 |
from US $0.96 |
||
|
11294
|
11294
MT206583 COLLAR, AIR CLEANER |
MT206583 |
US $2.74 |
||
|
11297Q
|
11297Q
MF661026 CLAMP, FUEL TANKD=56 |
MF661026 |
US $3.40 |
||
|
11297S
|
11297S
MF661041 CLAMP, AIR CLEANERD=90 |
MF661041 |
US $4.38 |
||
|
11299
|
11299
MD041968 BOLT, AIR CLEANERWasher assembled,6x25 |
MD041968 |
US $3.97 |
