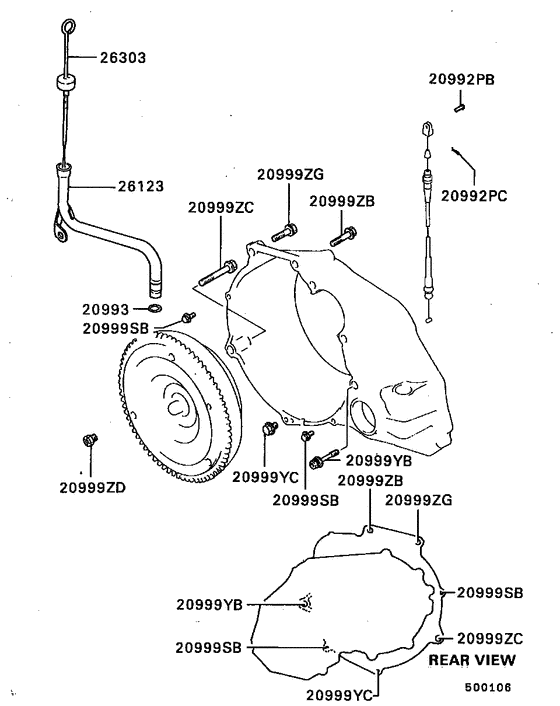

A/t case (ALL (CONNECTING PARTS)) Diagram Mitsubishi LANCER STATION WAGON
- Year
- 1988 - 1992
- Sales region
- EUR
- Note
- GLX(MPI/ANTI-POLL),3FA/T LHD
- drive
- 2WD
- transmission
- 3FA/T
- grade
- GLX
- body
- VAN
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
20992PB
|
20992PB
MD003071
PIN, CARB
|
MD003071 |
— | ||
|
20992PC
|
20992PC
MF472302 PIN, CARBSnap,5x17.9 |
MF472302 |
US $1.48 |
||
|
20993
|
20993
MD955612 O-RING, T/M CONNECTING12 |
MD955612 |
US $6.02 |
||
|
20999SB
|
20999SB
MF241223 BOLT, ROCKER COVERWasher assembled,6x12 |
MF241223 |
from US $1.05 |
||
|
20999YB
|
20999YB
MD706012 BOLT, T/M CONNECTINGWasher assembled,8x60 |
MD706012 |
from US $2.87 |
||
|
20999YC
|
20999YC
MF140021 BOLT, ACCEL CABLE SUPPORTFlange,8x12 |
MF140021 |
from US $0.43 |
||
|
20999ZB
|
20999ZB
MF140266 BOLT, TIMING BELT TRAINFlange,10x40 |
MF140266 |
from US $1.48 |
||
|
20999ZC
|
20999ZC
MF140271 BOLT, STARTERFlange,10x65 |
MF140271 |
US $3.83 |
||
|
20999ZD
|
20999ZD
MD952169 BOLT, T/M CONNECTINGSpecial,10x11 |
MD952169 |
US $7.25 |
||
|
20999ZG
|
20999ZG
MD740892 BOLT, T/M CONNECTINGFlange,10x43.5 |
MD740892 |
US $4.74 |
||
|
20999ZG
|
20999ZG
MF140266 BOLT, TIMING BELT TRAINFlange,10x40 |
MF140266 |
from US $1.48 |
||
|
26123
|
26123
MD731610
TUBE,A/T OIL FILLER...
|
MD731610 |
— | ||
|
26123
|
26123
MD738694
TUBE,A/T OIL FILLER...
|
MD738694 |
— | ||
|
26303
|
26303
MD732520
GAUGE, A/T OIL LEVEL
|
MD732520 |
— | ||
|
26303
|
26303
MD732522 GAUGE, A/T OIL LEVEL |
MD732522 |
US $34.04 |
||
|
26303
|
26303
MD738696
GAUGE,A/T OIL LEVEL
|
MD738696 |
— |
