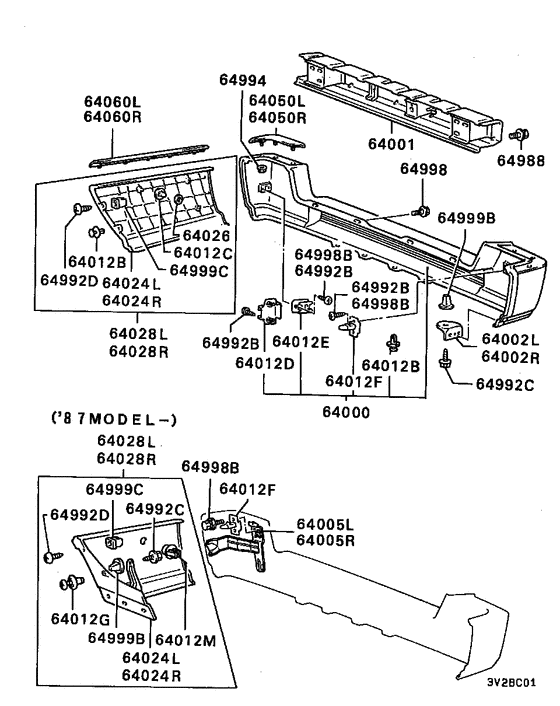

Rear bumper & support Diagram Mitsubishi LANCER STATION WAGON
- Year
- 1985 - 1992
- Sales region
- EUR
- Note
- GL,5FM/T RHD
- drive
- 2WD
- transmission
- 5FM/T
- grade
- GL
- body
- VAN
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
64000
|
64000
MB597838 FACE KIT, RR BUMPER |
MB597838 |
US $704.70 |
||
|
64001
|
64001
MB408391 REINFORCEMENT, RR BUMPER |
MB408391 |
US $109.52 |
||
|
64002L
|
64002L
MB481061 BRACKET, RR BUMPER, LH |
MB481061 |
US $7.10 |
||
|
64002R
|
64002R
MB481062 BRACKET, RR BUMPER, RH |
MB481062 |
US $7.10 |
||
|
64012B
|
64012B
MB253964 CLIP, FR BUMPER |
MB253964 |
from US $1.52 |
||
|
64012C
|
64012C
MB254937 CLIP, QTR PILLAR GARNISH6.6x8 |
MB254937 |
US $5.03 |
||
|
64012D
|
64012D
MB271692 CLIP, RR BUMPER |
MB271692 |
US $21.46 |
||
|
64012E
|
64012E
MB271691 CLIP, RR BUMPER14.3 |
MB271691 |
US $5.18 |
||
|
64012F
|
64012F
MB271690 CLIP, RR BUMPER13.7x13.7 |
MB271690 |
US $7.55 |
||
|
64012G
|
64012G
MB397515 CLIP, FR BUMPER7 |
MB397515 |
US $3.83 |
||
|
64012M
|
64012M
MB613412 CLIP, RR BUMPER |
MB613412 |
US $8.58 |
||
|
64024L
|
64024L
MB465697 EXTENSION, RR BUMPER, LH |
MB465697 |
US $62.16 |
||
|
64024L
|
64024L
MB481509 EXTENSION, RR BUMPER, LH |
MB481509 |
US $149.48 |
||
|
64024L
|
64024L
MB693095 EXTENSION, RR BUMPER, LH |
MB693095 |
US $148 |
||
|
64024R
|
64024R
MB465699 EXTENSION, RR BUMPER, RH |
MB465699 |
US $62.16 |
||
|
64024R
|
64024R
MB481510 EXTENSION, RR BUMPER, RH |
MB481510 |
US $149.48 |
||
|
64024R
|
64024R
MB693096 EXTENSION, RR BUMPER, RH |
MB693096 |
US $148 |
||
|
64026
|
64026
MB403135 GASKET, RR BUMPER |
MB403135 |
US $2.07 |
||
|
64028L
|
64028L
MB860429 EXTENSION KIT, RR BUMPER, LH |
MB860429 |
US $164.28 |
||
|
64028R
|
64028R
MB860430 EXTENSION KIT, RR BUMPER, RH |
MB860430 |
US $164.28 |
||
|
64050L
|
64050L
MB271761 GARNISH, RR BUMPER, LH |
MB271761 |
US $54.02 |
||
|
64050R
|
64050R
MB271762 GARNISH, RR BUMPER, RH |
MB271762 |
US $54.02 |
||
|
64060L
|
64060L
MB271763 GARNISH, RR BUMPER EXTENSION, LH |
MB271763 |
US $43.66 |
||
|
64060R
|
64060R
MB271764 GARNISH, RR BUMPER EXTENSION, RH |
MB271764 |
US $43.66 |
||
|
64988
|
64988
MS240129 BOLT, FUEL TANKWasher assembled,10x25 |
MS240129 |
US $3.01 |
||
|
64992B
|
64992B
MF453030 SCREW, ENG CONTROL EQUIPTapping,5x10 |
MF453030 |
from US $0.18 |
||
|
64992C
|
64992C
MS452347 SCREW, SPLASH SHIELDTapping washer assembled,6x16 |
MS452347 |
US $2.87 |
||
|
64992C
|
64992C
MS452356 SCREW, SPLASH SHIELDTapping washer assembled,6x16 |
MS452356 |
from US $2.37 |
||
|
64992D
|
64992D
MB088339 SCREW, FR FENDERTapping,5x16 |
MB088339 |
US $3.40 |
||
|
64994
|
64994
MS440501 NUT, FUEL TANKWasher assembled,5 |
MS440501 |
from US $1.03 |
||
|
64998
|
64998
MB369297
BOLT, FR BUMPER
|
MB369297 |
— | ||
|
64998B
|
64998B
MS240030 BOLT, ENG WIRINGWasher assembled,5x10 |
MS240030 |
US $1.63 |
||
|
64999B
|
64999B
MU480033 GROMMET, SPLASH SHIELD6 |
MU480033 |
from US $0.88 |
||
|
64999C
|
64999C
MS480001 GROMMET4,HOLE=6.7X6.7 |
MS480001 |
from US $1.07 |
