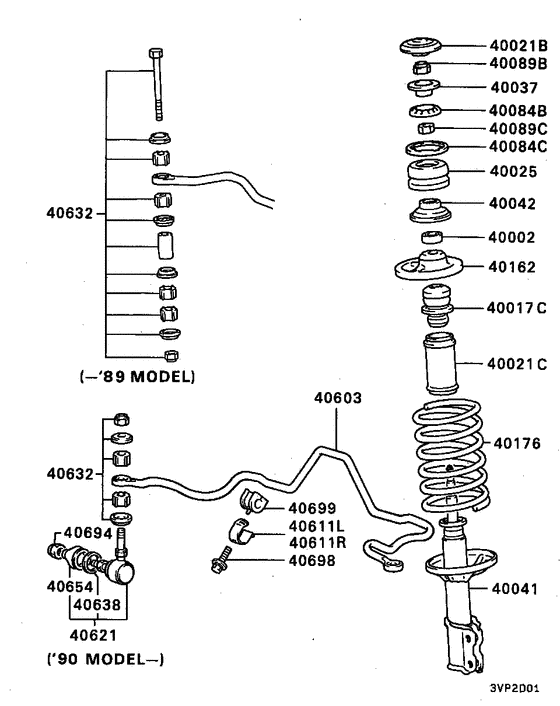

Front susp strut & spring (4WD) Diagram Mitsubishi LANCER STATION WAGON
- Year
- 1986 - 1989
- Sales region
- EUR
- Note
- GL 4WD(AUSTRIA),5FM/T LHD
- drive
- 4WD/4WD
- transmission
- 5FM/T
- grade
- GL
- body
- VAN
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
40002
|
40002
MB303072 BEARING, FR SUSP STRUT |
MB303072 |
from US $7.47 |
||
|
40017C
|
40017C
MB303069 DAMPER, FR SUSP STRUT |
MB303069 |
US $25.08 |
||
|
40021B
|
40021B
MB109960 COVER, FR SUSP STRUT31.5 |
MB109960 |
from US $2.87 |
||
|
40021B
|
40021B
MB573180 COVER, FR SUSP STRUT |
MB573180 |
US $4.46 |
||
|
40021C
|
40021C
MB303070 COVER, FR SUSP STRUT |
MB303070 |
US $6.44 |
||
|
40025
|
40025
MB430357 INSULATOR, FR SUSP STRUT |
MB430357 |
US $30.96 |
||
|
40037
|
40037
MB518551 STOPPER, FR SUSP STRUT |
MB518551 |
US $7.49 |
||
|
40041
|
40041
MB430665 STRUT, FR SUSP |
MB430665 |
US $440.64 |
||
|
40041
|
40041
MB573456 STRUT, FR SUSP |
MB573456 |
US $440.64 |
||
|
40042
|
40042
MB303065 SUPPORT, FR SUSP STRUT |
MB303065 |
US $9.07 |
||
|
40084B
|
40084B
MB518530 CUSHION, FR SUSP STRUT |
MB518530 |
US $7.49 |
||
|
40084C
|
40084C
MB518552 CUSHION, FR SUSP STRUT |
MB518552 |
US $9.94 |
||
|
40089B
|
40089B
MS440003 NUT, FR SUSP STRUTSelf locking,12 |
MS440003 |
US $5.94 |
||
|
40089C
|
40089C
MF431823 NUT, SPARE TIRE CARRIERLarge,12 |
MF431823 |
US $2.59 |
||
|
40162
|
40162
MB518000 SEAT, FR SUSP SPRING, UPR |
MB518000 |
US $22.32 |
||
|
40176
|
40176
MB518320 SPRING, FR SUSP COIL |
MB518320 |
US $125.28 |
||
|
40176
|
40176
MB518321 SPRING, FR SUSP COIL |
MB518321 |
US $131.04 |
||
|
40603
|
40603
MB430656 BAR, FR SUSP STABILIZER20 |
MB430656 |
US $275.04 |
||
|
40603
|
40603
MB573672 BAR, FR SUSP STABILIZER18 |
MB573672 |
US $280.80 |
||
|
40611L
|
40611L
MB430660 BRACKET, FR SUSP STABILIZER BAR, LH |
MB430660 |
US $7.34 |
||
|
40611L
|
40611L
MB573522 BRACKET, FR SUSP STABILIZER BAR, LH |
MB573522 |
US $10.22 |
||
|
40611R
|
40611R
MB430661 BRACKET, FR SUSP STABILIZER BAR, RH |
MB430661 |
US $7.34 |
||
|
40611R
|
40611R
MB573523 BRACKET, FR SUSP STABILIZER BAR, RH |
MB573523 |
from US $10.22 |
||
|
40621
|
40621
MB573210 LINK ASSY, RR SUSP STABILIZER BAR |
MB573210 |
US $54 |
||
| replacement | |||||
|
40621
|
40621
4056A039 LINK, FR SUSP STABILIZER |
4056A039 |
US $50.40 |
||
|
40632
|
40632
MB241974
LINK KIT, FR SUSP STABILIZER
|
MB241974 |
— | ||
| replacement | |||||
|
40632
|
40632
MR954888 LINK KIT, FR SUSP STABILIZER |
MR954888 |
from US $26.40 |
||
|
40632
|
40632
MB597604 LINK KIT, FR SUSP STABILIZER |
MB597604 |
US $20.16 |
||
|
40638
|
40638
MB633060
RING, FR SUSP STABILIZER LINK DUST COVER
|
MB633060 |
— | ||
| replacement | |||||
|
40638
|
40638
MB892989 RING, SUSP STABILIZER LINK DUST COVER |
MB892989 |
US $7.39 |
||
|
40654
|
40654
MB518785 COVER, FR SUSP STABILIZER LINK BALL JOINT DUST |
MB518785 |
from US $7.52 |
||
|
40694
|
40694
MB573546
NUT, FR SUSP STABILIZER
|
MB573546 |
— | ||
| replacement | |||||
|
40694
|
40694
MS440002 NUT, ENG RR MOUNTINGSelf locking,10 |
MS440002 |
from US $2.28 |
||
|
40698
|
40698
MB142761 BOLT, FR SUSP STABILIZERWasher assembled,8x25 |
MB142761 |
from US $1.48 |
||
|
40699
|
40699
MB430658 BUSHING, FR SUSP STABILIZER20 |
MB430658 |
US $12.53 |
||
|
40699
|
40699
MB573214 BUSHING, FR SUSP STABILIZER18 |
MB573214 |
US $7.06 |
||
