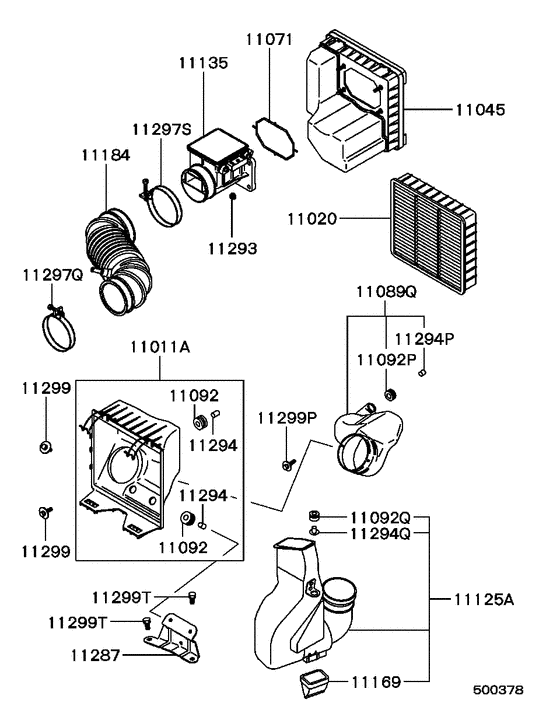

Air cleaner (9606.1- WITH PRE AIR CLEANER) Diagram Mitsubishi LANCER STATION WAGON
- Year
- 1992 - 1993
- Sales region
- EUR
- Note
- GLI,5FM/T RHD
- drive
- 2WD
- transmission
- 5FM/T
- grade
- GLI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11011A
|
11011A
MD620733
BODY ASSY, AIR CLEANER
|
MD620733 |
— | ||
|
11020
|
11020
MD620737 ELEMENT, AIR CLEANERNon woven |
MD620737 |
US $69.12 |
||
|
11020
|
11020
MR571472 ELEMENT, AIR CLEANERNon woven |
MR571472 |
US $54 |
||
|
11045
|
11045
MD620735 COVER, AIR CLEANER |
MD620735 |
US $101.52 |
||
|
11071
|
11071
MD151672 GASKET, AIR CLEANER AIR FLOW SENSOR |
MD151672 |
from US $8.28 |
||
|
11089Q
|
11089Q
MD188260 DUCT, AIR CLEANER INTAKE |
MD188260 |
US $102.96 |
||
|
11092
|
11092
MD620528 INSULATOR, AIR CLEANER SUPPORT |
MD620528 |
US $6.73 |
||
|
11092P
|
11092P
MT206580 INSULATOR, AIR CLEANER SUPPORT |
MT206580 |
US $2.51 |
||
|
11135
|
11135
MD172449 SENSOR, AIR CLEANER AIR FLOW |
MD172449 |
US $806.40 |
||
|
11135
|
11135
MD357332 SENSOR, AIR CLEANER AIR FLOW |
MD357332 |
US $937.44 |
||
|
11184
|
11184
MD172988
DUCT, AIR CLEANER TO CARB
|
MD172988 |
— | ||
|
11287
|
11287
MD168385
BRACKET, AIR CLEANER
|
MD168385 |
— | ||
|
11293
|
11293
M945407 NUT, CRUISE CONTROL EQUIPFlange,6 |
M945407 |
US $2.11 |
||
|
11293
|
11293
MF434103 NUT, ENG OIL PANFlange,6 |
MF434103 |
from US $0.11 |
||
|
11294
|
11294
MD620469 COLLAR, AIR CLEANER |
MD620469 |
US $4.03 |
||
|
11294P
|
11294P
MT206583 COLLAR, AIR CLEANER |
MT206583 |
US $2.38 |
||
|
11297Q
|
11297Q
MF661136 CLAMP, AIR CLEANER78 |
MF661136 |
US $5.04 |
||
|
11297Q
|
11297Q
MF661138 CLAMP, AIR CLEANER83 |
MF661138 |
from US $4.07 |
||
|
11297S
|
11297S
MF661141 CLAMP, AIR CLEANER90 |
MF661141 |
US $5.28 |
||
|
11299
|
11299
MD171250
BOLT, AIR CLEANER
|
MD171250 |
— | ||
|
11299P
|
11299P
MD041968 BOLT, AIR CLEANERWasher assembled,6x25 |
MD041968 |
US $2.64 |
||
|
11299P
|
11299P
MD300358 BOLT, AIR CLEANERWasher assembled,6x30 |
MD300358 |
from US $1.90 |
||
|
11299T
|
11299T
MS240125 BOLT, FUEL TANKWasher assembled,8x20 |
MS240125 |
from US $1.10 |
