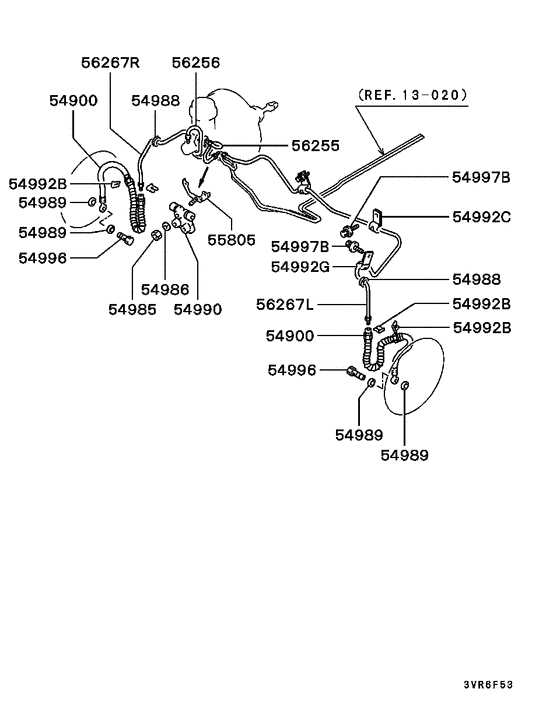

Brake line (FRONT..RHD(EXC.ABS)) Diagram Mitsubishi LANCER STATION WAGON
- Year
- 1992 - 1993
- Sales region
- EUR
- Note
- GLI,5FM/T RHD
- drive
- 2WD
- transmission
- 5FM/T
- grade
- GLI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
54900
|
54900
MB857426 HOSE, FR BRAKE BODY SIDE242+190 |
MB857426 |
US $41.04 |
||
|
54900
|
54900
MR129799 HOSE, FR BRAKE BODY SIDE242+190 |
MR129799 |
US $42.92 |
||
|
54900
|
54900
MR129882 HOSE, FR BRAKE252+200 |
MR129882 |
US $49.93 |
||
|
54985
|
54985
MF430005 NUT, ROCKER COVER8 |
MF430005 |
from US $1.01 |
||
|
54986
|
54986
MF450405 WASHER, CYLINDER HEADSpring,8 |
MF450405 |
from US $0.43 |
||
|
54988
|
54988
MB316561 GROMMET, FRAME BRAKE FLUID LINE24.5 |
MB316561 |
US $3.28 |
||
|
54989
|
54989
MA111832 GASKET, CLUTCH M/CYL10.2 |
MA111832 |
from US $1.07 |
||
|
54990
|
54990
MB238686
JOINT,BRAKE FLUID LINE
|
MB238686 |
— | ||
|
54992B
|
54992B
MA431825 CLIP, BRAKE FLUID LINE13 |
MA431825 |
from US $1.83 |
||
|
54992C
|
54992C
MB344587 CLIP, RR AXLE BRAKE TUBE4.76 |
MB344587 |
US $4.38 |
||
|
54992G
|
54992G
MB500569 CLIP, FRAME BRAKE FLUID LINE4.76 |
MB500569 |
US $2.96 |
||
|
54996
|
54996
MB082326 EYEBOLT, RR AXLE BRAKE TUBE10x21 |
MB082326 |
from US $5.58 |
||
|
54996
|
54996
MR249625
EYEBOLT, BRAKE FLUID LINE
|
MR249625 |
— | ||
| replacement | |||||
|
54996
|
54996
MU001458 EYEBOLT, RR AXLE BRAKE TUBE |
MU001458 |
from US $3.37 |
||
|
54997B
|
54997B
MS240121 BOLT, CONNRODWasher assembled,6x16 |
MS240121 |
from US $1.70 |
||
|
55805
|
55805
MB277015
BRACKET, BRAKE FLUID LINE VALVE
|
MB277015 |
— | ||
|
56255
|
56255
MB316894 TUBE, BRAKE M/CYL PRIMARY |
MB316894 |
US $8.62 |
||
|
56256
|
56256
MB534023 TUBE, BRAKE M/CYL SECONDARY |
MB534023 |
US $8.76 |
||
|
56267L
|
56267L
MB857040
TUBE,FR BRAKE,LH
|
MB857040 |
— | ||
|
56267R
|
56267R
MB857041
TUBE,FR BRAKE,RH
|
MB857041 |
— | ||
|
