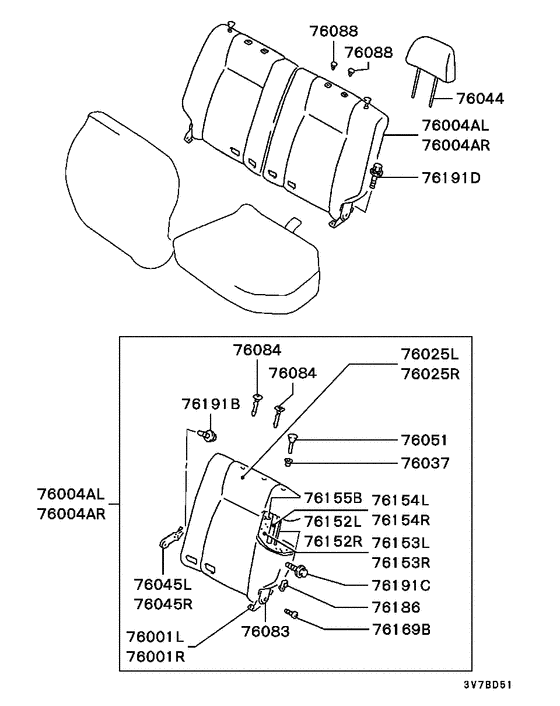

Rear seat (BACK) Diagram Mitsubishi LANCER STATION WAGON
- Year
- 1992 - 1993
- Sales region
- EUR
- Note
- GLI,5FM/T RHD
- drive
- 2WD
- transmission
- 5FM/T
- grade
- GLI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
76001L
|
76001L
MB915083 ADJUSTER, RR SEAT RECLINING, LH |
MB915083 |
US $219.04 |
||
|
76001R
|
76001R
MB915084 ADJUSTER, RR SEAT RECLINING, RH |
MB915084 |
US $219.04 |
||
|
76004AL
|
76004AL
MR703894
BACK ASSY,RR SEAT,LH
|
MR703894 |
— | ||
|
76004AR
|
76004AR
MR703895
BACK ASSY,RR SEAT,RH
|
MR703895 |
— | ||
|
76025L
|
76025L
MR703906
COVER,RR SEAT BACK,LH
|
MR703906 |
— | ||
|
76025R
|
76025R
MR703907
COVER,RR SEAT BACK,RH
|
MR703907 |
— | ||
|
76037
|
76037
MB131317 GARNISH, RR SEAT FOLDING KNOB |
MB131317 |
US $3.26 |
||
|
76037
|
76037
MB916574 GARNISH, RR SEAT FOLDING KNOB |
MB916574 |
US $3.85 |
||
|
76045L
|
76045L
MB874637 HINGE, RR SEAT, CTR LH |
MB874637 |
US $13.32 |
||
|
76045R
|
76045R
MB874638 HINGE, RR SEAT, CTR RH |
MB874638 |
US $13.32 |
||
|
76051
|
76051
MB495142 KNOB, RR SEAT FOLDING |
MB495142 |
US $6.51 |
||
|
76051
|
76051
MB916571 KNOB, RR SEAT FOLDING |
MB916571 |
US $5.18 |
||
|
76083
|
76083
MR202000 COVER, 2ND SEAT RECLINING ADJUSTER |
MR202000 |
US $8.88 |
||
|
76088
|
76088
MB974341
CAP,RR SEAT HEADREST GUIDE
|
MB974341 |
— | ||
|
76152L
|
76152L
MB915079 ROD, RR SEAT RECLINING ADJUSTER, LH |
MB915079 |
US $11.99 |
||
|
76152R
|
76152R
MB915080 ROD, RR SEAT RECLINING ADJUSTER, RH |
MB915080 |
US $11.99 |
||
|
76153L
|
76153L
MB915073 PAD, RR SEAT BACK, LH |
MB915073 |
US $279.72 |
||
|
76153R
|
76153R
MB915074 PAD, RR SEAT BACK, RH |
MB915074 |
US $279.72 |
||
|
76154L
|
76154L
MB940737
FRAME,RR SEAT BACK,LH
|
MB940737 |
— | ||
|
76154R
|
76154R
MB940738
FRAME,RR SEAT BACK,RH
|
MB940738 |
— | ||
|
76155B
|
76155B
MB130813 WIRE, RR SEAT TRIMMING2.0x340 |
MB130813 |
US $2.07 |
||
|
76155B
|
76155B
MB410590 WIRE, RR SEAT TRIMMING1.6x460 |
MB410590 |
US $2.37 |
||
|
76169B
|
76169B
MB323057 SCREW, RR SEAT6x6 |
MB323057 |
US $2.07 |
||
|
76186
|
76186
MB372130 BUSHING, RR SEAT |
MB372130 |
US $3.11 |
||
|
76191B
|
76191B
MF240051 BOLT, ROCKER COVERWasher assembled,8x16 |
MF240051 |
from US $0.96 |
||
|
76191C
|
76191C
MF241279 BOLT, ENG RR MOUNTINGWasher assembled,10x18 |
MF241279 |
US $1.50 |
||
|
76191D
|
76191D
MB131256 BOLT, BODY LOOSE PANELWasher assembled,8x25 |
MB131256 |
US $4.38 |
