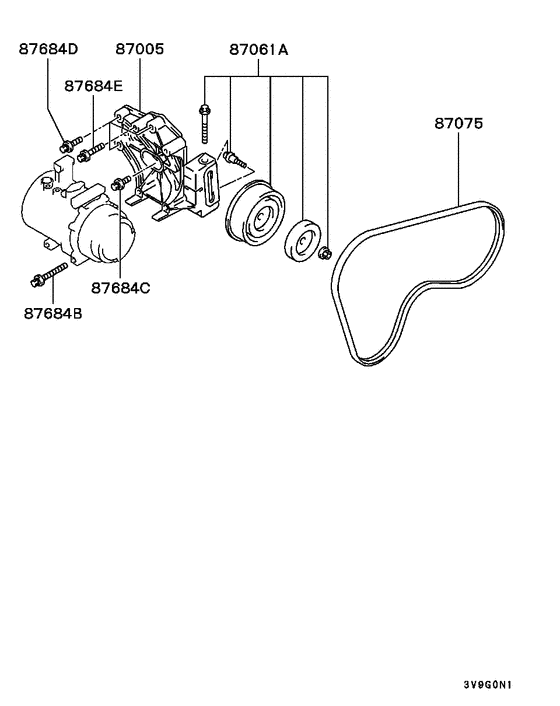

A/c condenser, piping (A/C COMPRESSOR BRACKET) Diagram Mitsubishi LANCER STATION WAGON
- Year
- 1992 - 2000
- Sales region
- EUR
- Note
- GLI-4,5FM/T LHD
- drive
- 4WD
- transmission
- 5FM/T
- grade
- GLI-4
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
87005
|
87005
MB813071
BRACKET, A/C COMPRESSOR
|
MB813071 |
— | ||
|
87005
|
87005
MB958516
BRACKET, A/C COMPRESSOR
|
MB958516 |
— | ||
|
87061A
|
87061A
MB813415
PULLEY ASSY, A/C COMPRESSOR TENSION
|
MB813415 |
— | ||
|
87061A
|
87061A
MR117429
PULLEY ASSY, A/C COMPRESSOR TENSION
|
MR117429 |
— | ||
|
87061A
|
87061A
MR315434
PULLEY ASSY, A/C COMPRESSOR TENSION
|
MR315434 |
— | ||
|
87075
|
87075
MB813251
V-RIBBED-BELT, A/C COMPRESSOR(87075)
|
MB813251 |
— | ||
|
87684B
|
87684B
MF244870 BOLT, A/C COMPRESSORWasher assembled,8x100 |
MF244870 |
from US $2.05 |
||
|
87684C
|
87684C
MF244880 BOLT, ENG RR MOUNTINGWasher assembled,10x25 |
MF244880 |
from US $1.50 |
||
|
87684D
|
87684D
MF244887 BOLT, T/CWasher assembled,10x45 |
MF244887 |
US $3.11 |
||
|
87684E
|
87684E
MF244863 BOLT, A/C COMPRESSORWasher assembled,8x60 |
MF244863 |
US $3.11 |
