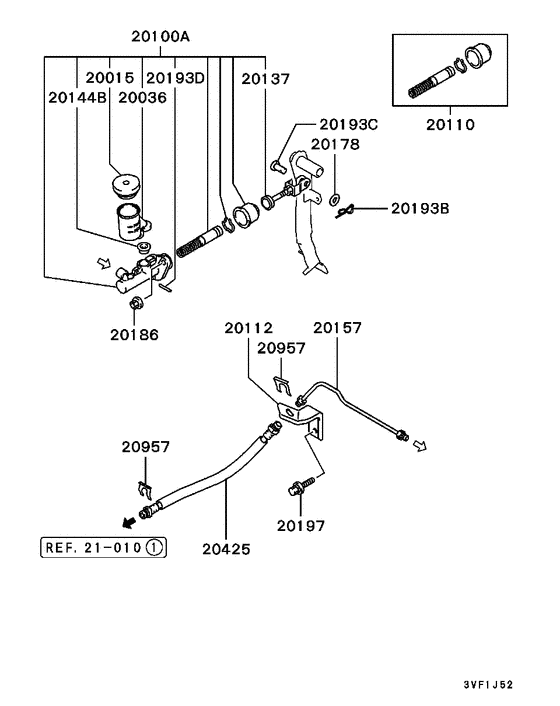

Clutch control (LHD..(9604.1-)) Diagram Mitsubishi LANCER STATION WAGON
- Year
- 1992 - 2000
- Sales region
- EUR
- Note
- GLI-4,5FM/T LHD
- drive
- 4WD
- transmission
- 5FM/T
- grade
- GLI-4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
20015
|
20015
MB555135 CAP, CLUTCH FLUID RESERVOIR |
MB555135 |
from US $8.17 |
||
|
20036
|
20036
MA115416 RESERVOIR, CLUTCH FLUID |
MA115416 |
from US $6.75 |
||
|
20036
|
20036
MR272776
RESERVOIR, CLUTCH FLUID
|
MR272776 |
— | ||
|
20100A
|
20100A
MB555274
CYLINDER ASSY,CLUTCH MASTER
|
MB555274 |
— | ||
|
20100A
|
20100A
MR244839 CYLINDER ASSY, CLUTCH MASTER |
MR244839 |
from US $198 |
||
|
20110
|
20110
MB012161 CYLINDER KIT, CLUTCH MASTER |
MB012161 |
from US $64.68 |
||
|
20112
|
20112
MB871470
BRACKET,CLUTCH M/CYL TUBE
|
MB871470 |
— | ||
|
20137
|
20137
MB555388 PUSH ROD,CLUTCH M/CYL |
MB555388 |
US $62.16 |
||
|
20137
|
20137
MR235340 PUSH ROD, CLUTCH M/CYL |
MR235340 |
US $47.36 |
||
|
20144B
|
20144B
MR244929 SEAL, CLUTCH M/CYL |
MR244929 |
from US $2.09 |
||
|
20157
|
20157
MB555417
TUBE,CLUTCH M/CYL
|
MB555417 |
— | ||
|
20178
|
20178
MB151106 WASHER, CLUTCH M/CYL10 |
MB151106 |
US $2.74 |
||
|
20186
|
20186
MS440503 NUT, ENG FR MOUNTINGWasher assembled,8 |
MS440503 |
from US $0.84 |
||
|
20193B
|
20193B
MB858800 PIN, BRAKE BOOSTERSnap,10 |
MB858800 |
from US $1.13 |
||
|
20193B
|
20193B
MF472040 PIN, CLUTCH M/CYLSplit,2x25 |
MF472040 |
US $0.96 |
||
|
20193C
|
20193C
MB555172 PIN, CLUTCH M/CYLClevis,10x23.3 |
MB555172 |
US $3.26 |
||
|
20193C
|
20193C
MF473492 PIN, CLUTCH M/CYLClevis,10x23 |
MF473492 |
from US $2.67 |
||
|
20193D
|
20193D
MR244930 PIN, CLUTCH M/CYL |
MR244930 |
US $2.07 |
||
|
20197
|
20197
MS240081 BOLT, FUEL RETURN LINEWasher assembled,6x16 |
MS240081 |
US $3.01 |
||
|
20197
|
20197
MS240122 BOLT, ENG FR MOUNTINGWasher assembled,6x20 |
MS240122 |
from US $0.84 |
||
|
20425
|
20425
MB871471
HOSE,CLUTCH RELEASE CYLINDER
|
MB871471 |
— | ||
|
20425
|
20425
MR151548
HOSE,CLUTCH RELEASE CYLINDER
|
MR151548 |
— | ||
|
20957
|
20957
MA431825 CLIP, BRAKE FLUID LINE13 |
MA431825 |
from US $1.83 |
||
|
21 010
|
Clutch & clutch release
21 010
|
||||
