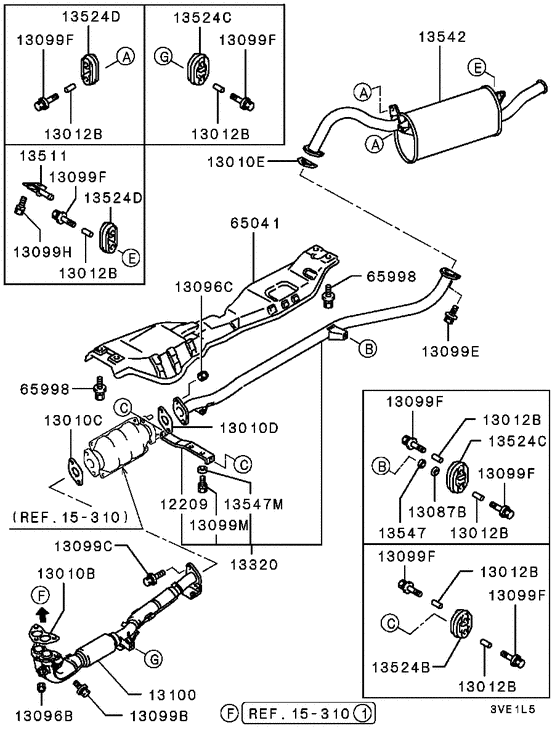

Exhaust pipe & muffler (ALL) Diagram Mitsubishi LANCER STATION WAGON
- Year
- 1992 - 2000
- Sales region
- EUR
- Note
- GLI-4,5FM/T LHD
- drive
- 4WD
- transmission
- 5FM/T
- grade
- GLI-4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
12209
|
12209
MB810976 BRACKET, UNDER CATALYTIC CONVERTER HANGER |
MB810976 |
US $30.34 |
||
|
13010B
|
13010B
MB687021 GASKET, EXHAUST PIPE |
MB687021 |
from US $6.16 |
||
|
13010C
|
13010C
MB687002 GASKET, EXHAUST PIPE |
MB687002 |
from US $5.73 |
||
|
13010D
|
13010D
MB687001 GASKET, EXHAUST PIPE |
MB687001 |
from US $7.88 |
||
|
13010E
|
13010E
MB687012 GASKET, EXHAUST PIPE |
MB687012 |
from US $6.20 |
||
|
13012B
|
13012B
MB514690 COLLAR, EXHAUST PIPE |
MB514690 |
from US $1.85 |
||
|
13087B
|
13087B
MF450154 WASHER, ENG FR MOUNTINGPlain,8 |
MF450154 |
from US $0.84 |
||
|
13096B
|
13096B
MB059333 NUT, EXHAUST PIPESelf locking,10 |
MB059333 |
from US $1.74 |
||
|
13096C
|
13096C
MB059359 NUT, CATALYTIC CONVERTERSelf locking,6t,12 |
MB059359 |
from US $1.66 |
||
|
13096C
|
13096C
MR571083 NUT, EXHAUST PIPE |
MR571083 |
from US $1.27 |
||
|
13099B
|
13099B
MF244882 BOLT, ENG RR MOUNTINGWasher assembled,10x30 |
MF244882 |
from US $1.05 |
||
|
13099C
|
13099C
MS240118 BOLT, ENG SUPPORT RODWasher assembled,12x30 |
MS240118 |
from US $1.62 |
||
|
13099E
|
13099E
MF241286 BOLT, COOLING FANWasher assembled,10x35 |
MF241286 |
from US $1.07 |
||
|
13099F
|
13099F
MF243660 BOLT, RADIATORWasher assembled,8x45 |
MF243660 |
from US $1.58 |
||
|
13099H
|
13099H
MF240053 BOLT, CYLINDER HEADWasher assembled,8x20 |
MF240053 |
from US $1.33 |
||
|
13099M
|
13099M
MF240051 BOLT, ROCKER COVERWasher assembled,8x16 |
MF240051 |
from US $0.96 |
||
|
13100
|
13100
MB857380
PIPE,EXHAUST,FR
|
MB857380 |
— | ||
|
13320
|
13320
MB868873 PIPE,EXHAUST,CTR |
MB868873 |
US $540.18 |
||
|
13320
|
13320
MR299185
PIPE,EXHAUST,CTR
|
MR299185 |
— | ||
|
13511
|
13511
MB890387 BRACKET, EXHAUST MUFFLER |
MB890387 |
US $13.62 |
||
|
13524B
|
13524B
MB906128 HANGER, EXHAUST MUFFLER |
MB906128 |
from US $6.20 |
||
|
13524C
|
13524C
MB906124 HANGER, EXHAUST MUFFLER |
MB906124 |
from US $10.02 |
||
|
13524D
|
13524D
MB906121 HANGER, EXHAUST MUFFLER |
MB906121 |
US $7.39 |
||
|
13542
|
13542
MB838133 MUFFLER, EXHAUST MAIN |
MB838133 |
US $374.19 |
||
|
13542
|
13542
MB925848
MUFFLER,EXHAUST MAIN
|
MB925848 |
— | ||
|
13547
|
13547
MB651931 SEAT, EXHAUST MUFFLER HANGER |
MB651931 |
from US $2.52 |
||
|
13547M
|
13547M
MB651931 SEAT, EXHAUST MUFFLER HANGER |
MB651931 |
from US $2.52 |
||
|
65041
|
65041
MB826323
PROTECTOR, UNDER FR FLOOR HEAT, FR
|
MB826323 |
— | ||
|
65041
|
65041
MR288974 PROTECTOR, UNDER FR FLOOR HEAT, FR |
MR288974 |
US $91.76 |
||
|
65998
|
65998
MS240121 BOLT, CONNRODWasher assembled,6x16 |
MS240121 |
from US $1.70 |
||
|
