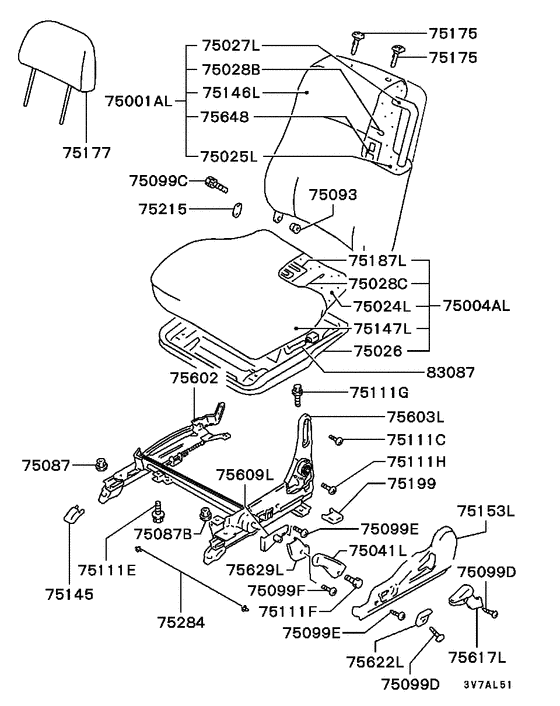

Front seat (LH..LOWBACK(W/HEIGHT)) Diagram Mitsubishi LANCER STATION WAGON
- Year
- 1992 - 2000
- Sales region
- EUR
- Note
- GLI-4,5FM/T LHD
- drive
- 4WD
- transmission
- 5FM/T
- grade
- GLI-4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
75001AL
|
75001AL
MB975007 BACK ASSY, FR SEAT, LH |
MB975007 |
US $693.06 |
||
|
75001AL
|
75001AL
MB975039
BACK ASSY,FR SEAT,LH
|
MB975039 |
— | ||
|
75001AL
|
75001AL
MR613212
BACK ASSY,FR SEAT,LH
|
MR613212 |
— | ||
|
75001AL
|
75001AL
MR613214
BACK ASSY,FR SEAT,LH
|
MR613214 |
— | ||
|
75001AL
|
75001AL
MR724409 BACK ASSY, FR SEAT, LH |
MR724409 |
US $762.94 |
||
|
75001AL
|
75001AL
MR729314
BACK ASSY,FR SEAT,LH
|
MR729314 |
— | ||
|
75001AL
|
75001AL
MR771798
BACK ASSY,FR SEAT,LH
|
MR771798 |
— | ||
|
75001AL
|
75001AL
MR771803
BACK ASSY,FR SEAT,LH
|
MR771803 |
— | ||
|
75001AL
|
75001AL
MR788527 BACK ASSY, FR SEAT, LH |
MR788527 |
US $904.18 |
||
|
75001AL
|
75001AL
MR788532
BACK ASSY,FR SEAT,LH
|
MR788532 |
— | ||
|
75004AL
|
75004AL
MB974956
CUSHION ASSY,FR SEAT,LH
|
MB974956 |
— | ||
|
75004AL
|
75004AL
MB974974
CUSHION ASSY,FR SEAT,LH
|
MB974974 |
— | ||
|
75004AL
|
75004AL
MR613203
CUSHION ASSY,FR SEAT,LH
|
MR613203 |
— | ||
|
75004AL
|
75004AL
MR613207
CUSHION ASSY,FR SEAT,LH
|
MR613207 |
— | ||
|
75004AL
|
75004AL
MR729298
CUSHION ASSY,FR SEAT,LH
|
MR729298 |
— | ||
|
75004AL
|
75004AL
MR729302
CUSHION ASSY,FR SEAT,LH
|
MR729302 |
— | ||
|
75004AL
|
75004AL
MR771786
CUSHION ASSY,FR SEAT,LH
|
MR771786 |
— | ||
|
75004AL
|
75004AL
MR771792
CUSHION ASSY,FR SEAT,LH
|
MR771792 |
— | ||
|
75004AL
|
75004AL
MR788508
CUSHION ASSY,FR SEAT,LH
|
MR788508 |
— | ||
|
75004AL
|
75004AL
MR788514
CUSHION ASSY,FR SEAT,LH
|
MR788514 |
— | ||
|
75024L
|
75024L
MB916367
PAD,FR SEAT CUSHION,LH
|
MB916367 |
— | ||
|
75024L
|
75024L
MB916377
PAD,FR SEAT CUSHION,LH
|
MB916377 |
— | ||
|
75024L
|
75024L
MR219789 PAD, FR SEAT CUSHION, LH |
MR219789 |
US $253.08 |
||
|
75025L
|
75025L
MB916395 PAD, FR SEAT BACK, LH |
MB916395 |
US $158.36 |
||
|
75025L
|
75025L
MB916399
PAD,FR SEAT BACK,LH
|
MB916399 |
— | ||
|
75025L
|
75025L
MR219791 PAD, FR SEAT BACK, LH |
MR219791 |
US $174.64 |
||
|
75026
|
75026
MB915750 FRAME, FR SEAT CUSHION |
MB915750 |
US $62.24 |
||
|
75027L
|
75027L
MB916383 FRAME, FR SEAT BACK, LH |
MB916383 |
US $148 |
||
|
75027L
|
75027L
MR251095 FRAME, FR SEAT BACK, LH |
MR251095 |
US $148 |
||
|
75028B
|
75028B
MB130812 WIRE, FR SEAT TRIMMING2.0x320 |
MB130812 |
US $2.07 |
||
|
75028B
|
75028B
MB592073 WIRE, FR SEAT TRIMMING1.6x420 |
MB592073 |
US $2.07 |
||
|
75028C
|
75028C
MB130811 WIRE, RR SEAT TRIMMING2.0x300 |
MB130811 |
US $1.48 |
||
|
75028C
|
75028C
MB144642 WIRE, FR SEAT TRIMMING2.0x400 |
MB144642 |
US $2.37 |
||
|
75041L
|
75041L
MB792731 LEVER, FR SEAT LIFTER, LH |
MB792731 |
US $34.88 |
||
|
75041L
|
75041L
MR759762 LEVER, FR SEAT LIFTER, LH |
MR759762 |
US $22.94 |
||
|
75041L
|
75041L
MR788544 LEVER, FR SEAT LIFTER, LH |
MR788544 |
US $34.04 |
||
|
75087
|
75087
MU431010 NUT, FR SEATCap,washer assembled |
MU431010 |
US $2.60 |
||
|
75087B
|
75087B
MS440504 NUTWasher assembled,10 |
MS440504 |
from US $0.66 |
||
|
75093
|
75093
MB158706 BUSHING, FR SEAT12x6 |
MB158706 |
from US $1.42 |
||
|
75099C
|
75099C
MB902325 SCREW, FR SEATWasher assembled,6x12 |
MB902325 |
US $2.52 |
||
|
75099D
|
75099D
MB410568 SCREW, FR SEAT4x6 |
MB410568 |
US $3.56 |
||
|
75099E
|
75099E
MF455497 SCREW, RR PILLAR GARNISHTapping,4x12 |
MF455497 |
from US $0.20 |
||
|
75099F
|
75099F
MF350743 SCREW, ENG GOVERNORWasher assembled,4x8 |
MF350743 |
US $2.60 |
||
|
75111C
|
75111C
MB144649 BOLT, FR SEAT10x21 |
MB144649 |
US $3.69 |
||
|
75111E
|
75111E
MF240051 BOLT, ROCKER COVERWasher assembled,8x16 |
MF240051 |
from US $0.96 |
||
|
75111F
|
75111F
MF247223 BOLT, FUEL FILLER LID PANELWasher assembled,6x14 |
MF247223 |
US $1.63 |
||
|
75111G
|
75111G
MS240188 BOLT, FR BUMPERWasher assembled,10x30 |
MS240188 |
from US $1.44 |
||
|
75111G
|
75111G
MS240189 BOLT, BRAKE PEDALWasher assembled,10x25 |
MS240189 |
US $3.28 |
||
|
75111H
|
75111H
MB902324 BOLT, FR SEATM10x18 |
MB902324 |
US $3.56 |
||
|
75145
|
75145
MB778517
COVER, FR SEAT ANCHOR
|
MB778517 |
— | ||
|
75145
|
75145
MR759757 COVER, FR SEAT ANCHOR |
MR759757 |
US $3.69 |
||
|
75146L
|
75146L
MB975164 COVER, FR SEAT BACK, LH |
MB975164 |
US $349.44 |
||
|
75146L
|
75146L
MR613228
COVER,FR SEAT BACK,LH
|
MR613228 |
— | ||
|
75146L
|
75146L
MR724486 COVER, FR SEAT BACK, LH |
MR724486 |
US $384.38 |
||
|
75146L
|
75146L
MR771814
COVER,FR SEAT BACK,LH
|
MR771814 |
— | ||
|
75146L
|
75146L
MR788572 COVER, FR SEAT BACK, LH |
MR788572 |
US $468.83 |
||
|
75147L
|
75147L
MB975113
COVER,FR SEAT CUSHION,LH
|
MB975113 |
— | ||
|
75147L
|
75147L
MB975131
COVER,FR SEAT CUSHION,LH
|
MB975131 |
— | ||
|
75147L
|
75147L
MR613217
COVER,FR SEAT CUSHION,LH
|
MR613217 |
— | ||
|
75147L
|
75147L
MR613223
COVER,FR SEAT CUSHION,LH
|
MR613223 |
— | ||
|
75147L
|
75147L
MR725644
COVER,FR SEAT CUSHION,LH
|
MR725644 |
— | ||
|
75147L
|
75147L
MR729344
COVER,FR SEAT CUSHION,LH
|
MR729344 |
— | ||
|
75147L
|
75147L
MR771806
COVER,FR SEAT CUSHION,LH
|
MR771806 |
— | ||
|
75147L
|
75147L
MR771810
COVER,FR SEAT CUSHION,LH
|
MR771810 |
— | ||
|
75147L
|
75147L
MR788551
COVER,FR SEAT CUSHION,LH
|
MR788551 |
— | ||
|
75147L
|
75147L
MR788559
COVER,FR SEAT CUSHION,LH
|
MR788559 |
— | ||
|
75153L
|
75153L
MB975081 COVER, FR SEAT SIDE SHIELD, LH |
MB975081 |
US $22.94 |
||
|
75153L
|
75153L
MR759795 COVER, FR SEAT SIDE SHIELD, LH |
MR759795 |
US $22.94 |
||
|
75175
|
75175
MB965579 GUIDE, FR SEAT HEADRESTW/lock |
MB965579 |
US $9.32 |
||
|
75175
|
75175
MB965581 GUIDE, FR SEAT HEADRESTW/o lock |
MB965581 |
US $9.32 |
||
|
75175
|
75175
MR753562 GUIDE, FR SEAT HEADRESTW/lock |
MR753562 |
US $9.03 |
||
|
75175
|
75175
MR753563 GUIDE, FR SEAT HEADRESTW/o lock |
MR753563 |
US $9.17 |
||
|
75177
|
75177
MB974428 HEADREST, FR SEAT |
MB974428 |
US $236.80 |
||
|
75177
|
75177
MR724512 HEADREST, FR SEAT |
MR724512 |
US $211.64 |
||
|
75177
|
75177
MR762967
HEADREST,FR SEAT
|
MR762967 |
— | ||
|
75177
|
75177
MR788494 HEADREST, FR SEAT |
MR788494 |
US $208.68 |
||
|
75187L
|
75187L
MB916747 HEATER, FR SEAT CUSHION, LH |
MB916747 |
from US $279.72 |
||
|
75199
|
75199
MB873969 COVER, FR SEAT ANCHOR |
MB873969 |
US $4.59 |
||
|
75199
|
75199
MR748265 COVER, FR SEAT ANCHOR |
MR748265 |
US $4.59 |
||
|
75215
|
75215
MB874501
PROTECTOR, FR SEAT FREE HINGE
|
MB874501 |
— | ||
|
75284
|
75284
MB874502 WIRE, FR SEAT |
MB874502 |
US $4 |
||
|
75602
|
75602
MB902439 ADJUSTER, FR SEAT HEIGHT |
MB902439 |
US $502.32 |
||
|
75602
|
75602
MR219703 ADJUSTER, FR SEAT HEIGHT |
MR219703 |
US $413.50 |
||
|
75603L
|
75603L
MB592793 ADJUSTER, FR SEAT RECLINING, LH |
MB592793 |
US $179.08 |
||
|
75609L
|
75609L
MB975088 COVER, FR SEAT SLIDE RAIL BRACKET, LH |
MB975088 |
US $22.94 |
||
|
75609L
|
75609L
MR759796 COVER, FR SEAT SLIDE RAIL BRACKET, LH |
MR759796 |
US $22.94 |
||
|
75617L
|
75617L
MB797367 KNOB, FR SEAT RECLINING ADJUSTER, LH |
MB797367 |
US $7.40 |
||
|
75617L
|
75617L
MR734688
KNOB, FR SEAT RECLINING ADJUSTER, LH
|
MR734688 |
— | ||
|
75622L
|
75622L
MB797363 KNOB, FR SEAT SLIDE ADJUSTER, LH |
MB797363 |
US $13.47 |
||
|
75622L
|
75622L
MR734686 KNOB, FR SEAT SLIDE ADJUSTER, LH |
MR734686 |
US $13.47 |
||
|
75629L
|
75629L
MB792725
LEVER, FR SEAT HEIGHT ADJUSTER, LH
|
MB792725 |
— | ||
|
75629L
|
75629L
MR759761 LEVER, FR SEAT HEIGHT ADJUSTER, LH |
MR759761 |
US $7.40 |
||
|
75629L
|
75629L
MR788539 LEVER, FR SEAT HEIGHT ADJUSTER, LH |
MR788539 |
US $4.59 |
||
|
75648
|
75648
MB916749 HEATER, FR SEAT BACK |
MB916749 |
US $264.92 |
||
|
83087
|
83087
MB874551 HARNESS, SEAT HEATER |
MB874551 |
US $55.50 |
