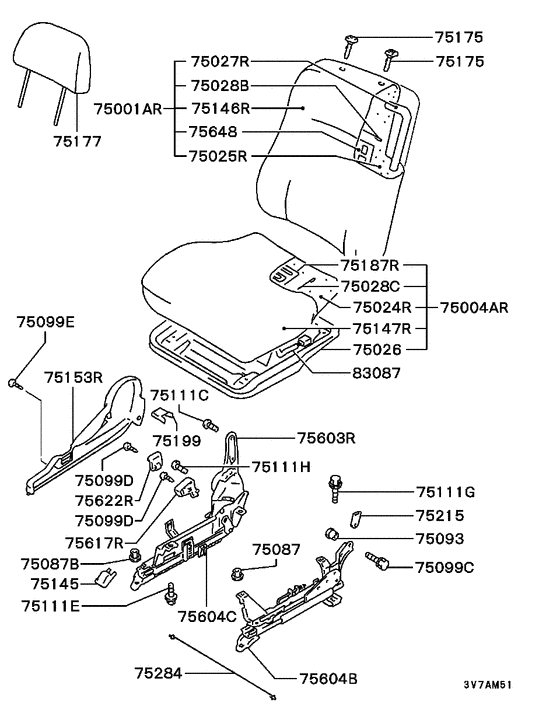

Front seat (RH..LOWBACK(W/HEATER)) Diagram Mitsubishi LANCER STATION WAGON
- Year
- 1992 - 2000
- Sales region
- EUR
- Note
- GLI-4,5FM/T LHD
- drive
- 4WD
- transmission
- 5FM/T
- grade
- GLI-4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
75001AR
|
75001AR
MB975010 BACK ASSY, FR SEAT, RH |
MB975010 |
US $693.06 |
||
|
75001AR
|
75001AR
MB975042
BACK ASSY,FR SEAT,RH
|
MB975042 |
— | ||
|
75001AR
|
75001AR
MR613213
BACK ASSY,FR SEAT,RH
|
MR613213 |
— | ||
|
75001AR
|
75001AR
MR613215
BACK ASSY,FR SEAT,RH
|
MR613215 |
— | ||
|
75001AR
|
75001AR
MR724411 BACK ASSY, FR SEAT, RH |
MR724411 |
US $762.94 |
||
|
75001AR
|
75001AR
MR729316
BACK ASSY,FR SEAT,RH
|
MR729316 |
— | ||
|
75001AR
|
75001AR
MR771801
BACK ASSY,FR SEAT,RH
|
MR771801 |
— | ||
|
75001AR
|
75001AR
MR771804
BACK ASSY,FR SEAT,RH
|
MR771804 |
— | ||
|
75001AR
|
75001AR
MR788530 BACK ASSY, FR SEAT, RH |
MR788530 |
US $904.18 |
||
|
75001AR
|
75001AR
MR788533
BACK ASSY,FR SEAT,RH
|
MR788533 |
— | ||
|
75004AR
|
75004AR
MB974961
CUSHION ASSY,FR SEAT,RH
|
MB974961 |
— | ||
|
75004AR
|
75004AR
MB974979
CUSHION ASSY,FR SEAT,RH
|
MB974979 |
— | ||
|
75004AR
|
75004AR
MR613205
CUSHION ASSY,FR SEAT,RH
|
MR613205 |
— | ||
|
75004AR
|
75004AR
MR613209
CUSHION ASSY,FR SEAT,RH
|
MR613209 |
— | ||
|
75004AR
|
75004AR
MR729300
CUSHION ASSY,FR SEAT,RH
|
MR729300 |
— | ||
|
75004AR
|
75004AR
MR729304
CUSHION ASSY,FR SEAT,RH
|
MR729304 |
— | ||
|
75004AR
|
75004AR
MR771790
CUSHION ASSY,FR SEAT,RH
|
MR771790 |
— | ||
|
75004AR
|
75004AR
MR771794
CUSHION ASSY,FR SEAT,RH
|
MR771794 |
— | ||
|
75004AR
|
75004AR
MR788512
CUSHION ASSY,FR SEAT,RH
|
MR788512 |
— | ||
|
75004AR
|
75004AR
MR788516
CUSHION ASSY,FR SEAT,RH
|
MR788516 |
— | ||
|
75024R
|
75024R
MB916368
PAD,FR SEAT CUSHION,RH
|
MB916368 |
— | ||
|
75024R
|
75024R
MB916378
PAD,FR SEAT CUSHION,RH
|
MB916378 |
— | ||
|
75024R
|
75024R
MR219790 PAD, FR SEAT CUSHION, RH |
MR219790 |
US $253.08 |
||
|
75025R
|
75025R
MB916396 PAD, FR SEAT BACK, RH |
MB916396 |
US $158.36 |
||
|
75025R
|
75025R
MB916400
PAD,FR SEAT BACK,RH
|
MB916400 |
— | ||
|
75025R
|
75025R
MR219792 PAD, FR SEAT BACK, RH |
MR219792 |
US $174.64 |
||
|
75026
|
75026
MB915750 FRAME, FR SEAT CUSHION |
MB915750 |
US $62.24 |
||
|
75027R
|
75027R
MB916384 FRAME, FR SEAT BACK, RH |
MB916384 |
US $148 |
||
|
75027R
|
75027R
MR251096 FRAME, FR SEAT BACK, RH |
MR251096 |
US $148 |
||
|
75028B
|
75028B
MB130812 WIRE, FR SEAT TRIMMING2.0x320 |
MB130812 |
US $2.07 |
||
|
75028B
|
75028B
MB592073 WIRE, FR SEAT TRIMMING1.6x420 |
MB592073 |
US $2.07 |
||
|
75028C
|
75028C
MB130811 WIRE, RR SEAT TRIMMING2.0x300 |
MB130811 |
US $1.48 |
||
|
75028C
|
75028C
MB144642 WIRE, FR SEAT TRIMMING2.0x400 |
MB144642 |
US $2.37 |
||
|
75087
|
75087
MU431010 NUT, FR SEATCap,washer assembled |
MU431010 |
US $2.60 |
||
|
75087B
|
75087B
MS440504 NUTWasher assembled,10 |
MS440504 |
from US $0.66 |
||
|
75093
|
75093
MB158706 BUSHING, FR SEAT12x6 |
MB158706 |
from US $1.42 |
||
|
75099C
|
75099C
MB902325 SCREW, FR SEATWasher assembled,6x12 |
MB902325 |
US $2.52 |
||
|
75099D
|
75099D
MB410568 SCREW, FR SEAT4x6 |
MB410568 |
US $3.56 |
||
|
75099E
|
75099E
MF455497 SCREW, RR PILLAR GARNISHTapping,4x12 |
MF455497 |
from US $0.20 |
||
|
75111C
|
75111C
MB144649 BOLT, FR SEAT10x21 |
MB144649 |
US $3.69 |
||
|
75111E
|
75111E
MF240051 BOLT, ROCKER COVERWasher assembled,8x16 |
MF240051 |
from US $0.96 |
||
|
75111G
|
75111G
MS240188 BOLT, FR BUMPERWasher assembled,10x30 |
MS240188 |
from US $1.44 |
||
|
75111G
|
75111G
MS240189 BOLT, BRAKE PEDALWasher assembled,10x25 |
MS240189 |
US $3.28 |
||
|
75111H
|
75111H
MB902324 BOLT, FR SEATM10x18 |
MB902324 |
US $3.56 |
||
|
75145
|
75145
MB778517
COVER, FR SEAT ANCHOR
|
MB778517 |
— | ||
|
75145
|
75145
MR759757 COVER, FR SEAT ANCHOR |
MR759757 |
US $3.69 |
||
|
75146R
|
75146R
MB975167 COVER, FR SEAT BACK, RH |
MB975167 |
US $349.44 |
||
|
75146R
|
75146R
MR613229
COVER,FR SEAT BACK,RH
|
MR613229 |
— | ||
|
75146R
|
75146R
MR724488 COVER, FR SEAT BACK, RH |
MR724488 |
US $384.38 |
||
|
75146R
|
75146R
MR771817
COVER,FR SEAT BACK,RH
|
MR771817 |
— | ||
|
75146R
|
75146R
MR788574 COVER, FR SEAT BACK, RH |
MR788574 |
US $468.83 |
||
|
75147R
|
75147R
MB975118
COVER,FR SEAT CUSHION,RH
|
MB975118 |
— | ||
|
75147R
|
75147R
MB975136
COVER,FR SEAT CUSHION,RH
|
MB975136 |
— | ||
|
75147R
|
75147R
MR613220
COVER,FR SEAT CUSHION,RH
|
MR613220 |
— | ||
|
75147R
|
75147R
MR613225
COVER,FR SEAT CUSHION,RH
|
MR613225 |
— | ||
|
75147R
|
75147R
MR725646
COVER,FR SEAT CUSHION,RH
|
MR725646 |
— | ||
|
75147R
|
75147R
MR729346
COVER,FR SEAT CUSHION,RH
|
MR729346 |
— | ||
|
75147R
|
75147R
MR771808
COVER,FR SEAT CUSHION,RH
|
MR771808 |
— | ||
|
75147R
|
75147R
MR771812
COVER,FR SEAT CUSHION,RH
|
MR771812 |
— | ||
|
75147R
|
75147R
MR788556
COVER,FR SEAT CUSHION,RH
|
MR788556 |
— | ||
|
75147R
|
75147R
MR788561
COVER,FR SEAT CUSHION,RH
|
MR788561 |
— | ||
|
75153R
|
75153R
MB969477 COVER, FR SEAT SIDE SHIELD, RH |
MB969477 |
US $33.52 |
||
|
75153R
|
75153R
MR734697 COVER, FR SEAT SIDE SHIELD, RH |
MR734697 |
US $22.94 |
||
|
75175
|
75175
MB965579 GUIDE, FR SEAT HEADRESTW/lock |
MB965579 |
US $9.32 |
||
|
75175
|
75175
MB965581 GUIDE, FR SEAT HEADRESTW/o lock |
MB965581 |
US $9.32 |
||
|
75175
|
75175
MR753562 GUIDE, FR SEAT HEADRESTW/lock |
MR753562 |
US $9.03 |
||
|
75175
|
75175
MR753563 GUIDE, FR SEAT HEADRESTW/o lock |
MR753563 |
US $9.17 |
||
|
75177
|
75177
MB974428 HEADREST, FR SEAT |
MB974428 |
US $236.80 |
||
|
75177
|
75177
MR724512 HEADREST, FR SEAT |
MR724512 |
US $211.64 |
||
|
75177
|
75177
MR762967
HEADREST,FR SEAT
|
MR762967 |
— | ||
|
75177
|
75177
MR788494 HEADREST, FR SEAT |
MR788494 |
US $208.68 |
||
|
75187R
|
75187R
MB916748 HEATER, FR SEAT CUSHION, RH |
MB916748 |
US $279.72 |
||
|
75199
|
75199
MB873969 COVER, FR SEAT ANCHOR |
MB873969 |
US $4.59 |
||
|
75199
|
75199
MR748265 COVER, FR SEAT ANCHOR |
MR748265 |
US $4.59 |
||
|
75215
|
75215
MB874501
PROTECTOR, FR SEAT FREE HINGE
|
MB874501 |
— | ||
|
75284
|
75284
MB874502 WIRE, FR SEAT |
MB874502 |
US $4 |
||
|
75603R
|
75603R
MB592749 ADJUSTER, FR SEAT RECLINING, RH |
MB592749 |
US $208.68 |
||
|
75603R
|
75603R
MB592795
ADJUSTER, FR SEAT RECLINING, RH
|
MB592795 |
— | ||
|
75604B
|
75604B
MB874484
ADJUSTER, FR SEAT SLIDE
|
MB874484 |
— | ||
|
75604B
|
75604B
MR219698
ADJUSTER, FR SEAT SLIDE
|
MR219698 |
— | ||
|
75604C
|
75604C
MB874482 ADJUSTER, FR SEAT SLIDE |
MB874482 |
US $86.58 |
||
|
75617R
|
75617R
MB797369 KNOB, FR SEAT RECLINING ADJUSTER, RH |
MB797369 |
US $7.40 |
||
|
75617R
|
75617R
MR734689 KNOB, FR SEAT RECLINING ADJUSTER, RH |
MR734689 |
from US $5.60 |
||
|
75622R
|
75622R
MB797365 KNOB, FR SEAT SLIDE ADJUSTER, RH |
MB797365 |
US $13.32 |
||
|
75622R
|
75622R
MR734687 KNOB, FR SEAT SLIDE ADJUSTER, RH |
MR734687 |
US $13.32 |
||
|
75648
|
75648
MB916749 HEATER, FR SEAT BACK |
MB916749 |
US $264.92 |
||
|
83087
|
83087
MB874551 HARNESS, SEAT HEATER |
MB874551 |
US $55.50 |
