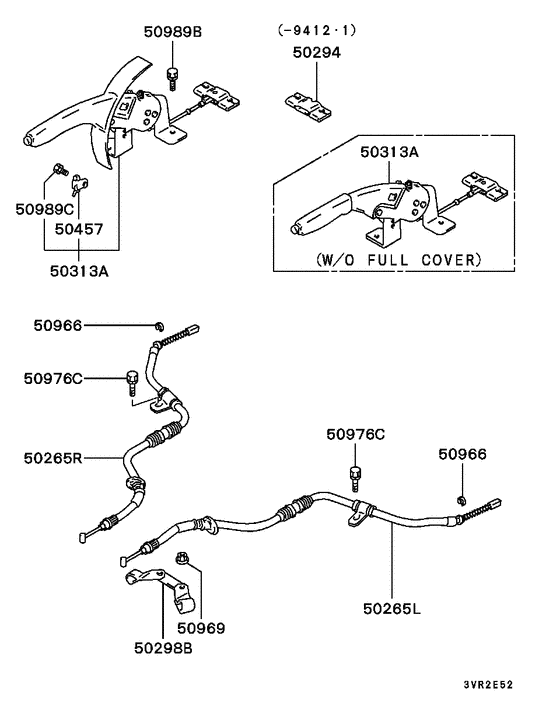

Parking brake control (ALL) Diagram Mitsubishi LANCER STATION WAGON
- Year
- 1992 - 2000
- Sales region
- EUR
- Note
- GLI-4,5FM/T LHD
- drive
- 4WD
- transmission
- 5FM/T
- grade
- GLI-4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
50265L
|
50265L
MB857034 CABLE, PARKING BRAKE, RR LH |
MB857034 |
US $93.98 |
||
|
50265R
|
50265R
MB857035 CABLE, PARKING BRAKE, RR RH |
MB857035 |
US $93.98 |
||
|
50294
|
50294
MB520377 EQUALIZER, PARKING BRAKE CABLE |
MB520377 |
US $9.62 |
||
|
50298B
|
50298B
MB857038 CLAMP, PARKING BRAKE CABLE |
MB857038 |
US $9.32 |
||
|
50313A
|
50313A
MB794208 LEVER ASSY, PARKING BRAKE |
MB794208 |
US $122.44 |
||
|
50457
|
50457
MB895092 SWITCH, PARKING BRAKE |
MB895092 |
US $18.47 |
||
|
50966
|
50966
MF522406 SNAP RING, ENG MECHANICAL GOVERNOR8 |
MF522406 |
from US $0.27 |
||
|
50969
|
50969
4815A048 NUT, PARKING BRAKE CABLESelf lock,6 |
4815A048 |
US $1.33 |
||
|
50969
|
50969
MS440503 NUT, ENG FR MOUNTINGWasher assembled,8 |
MS440503 |
from US $0.84 |
||
|
50976C
|
50976C
MS240085 BOLT, ENG OIL LINEWasher assembled,8x20 |
MS240085 |
from US $1.07 |
||
|
50989B
|
50989B
MS240085 BOLT, ENG OIL LINEWasher assembled,8x20 |
MS240085 |
from US $1.07 |
||
|
50989C
|
50989C
MF240001 BOLT, PARKING BRAKE LEVERWasher assembled,5x10 |
MF240001 |
US $1.63 |
