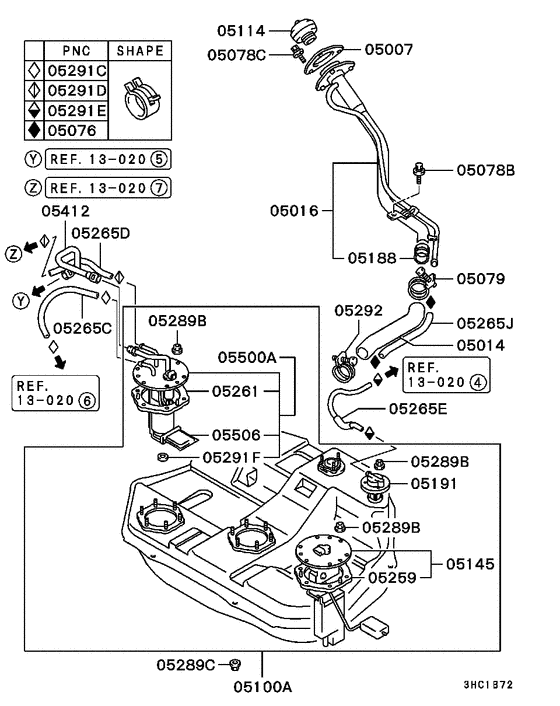

Fuel tank (-9705.3) Diagram Mitsubishi LEGNUM
- Year
- 1997 - 1998
- Sales region
- Japan
- Note
- ST-TOURING,S4FA/T
- drive
- 2WD
- transmission
- S4FA/T
- grade
- ST-TOURING
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
05007
|
05007
MB504238 GASKET, FUEL FILLER NECK |
MB504238 |
from US $3.74 |
||
|
05014
|
05014
MR135653 HOSE, FUEL FILLER |
MR135653 |
US $64.98 |
||
|
05016
|
05016
MR135238
NECK, FUEL FILLER
|
MR135238 |
— | ||
| replacement | |||||
|
05016
|
05016
MR134520 NECK, FUEL FILLER |
MR134520 |
US $198.36 |
||
|
05076
|
05076
MS660173 CLIP, FUEL TANKD=18.5 |
MS660173 |
from US $1.54 |
||
|
05078B
|
05078B
MS240125 BOLT, FUEL TANKWasher assembled,8x20 |
MS240125 |
from US $1.05 |
||
|
05078C
|
05078C
MB400550 BOLT, FUEL LINEWasher assembled,6x16 |
MB400550 |
from US $1.68 |
||
|
05079
|
05079
MS660271 CLAMP, FUEL TANK45 |
MS660271 |
from US $2.91 |
||
|
05100A
|
05100A
MR135999 FUEL TANK ASSY |
MR135999 |
US $1,291.47 |
||
|
05100A
|
05100A
MR342525 FUEL TANK ASSY |
MR342525 |
US $1,291.47 |
||
|
05114
|
05114
MB595689
CAP, FUEL TANK
|
MB595689 |
— | ||
| replacement | |||||
|
05114
|
05114
MB400395 CAP, FUEL TANK |
MB400395 |
from US $33.52 |
||
|
05114
|
05114
MR342330
CAP, FUEL TANK
|
MR342330 |
— | ||
| replacement | |||||
|
05114
|
05114
MN106160 CAP, FUEL TANK |
MN106160 |
from US $23.48 |
||
|
05145
|
05145
MR241078 GAUGE UNIT, FUEL TANK |
MR241078 |
from US $158.69 |
||
|
05145
|
05145
MR414910 GAUGE UNIT, FUEL TANK |
MR414910 |
US $176.47 |
||
|
05188
|
05188
MR135439 VALVE, FUEL FILLER NECK |
MR135439 |
from US $6.86 |
||
|
05191
|
05191
MR187855 VALVE, FUEL TANK SAFETY |
MR187855 |
US $38.99 |
||
|
05259
|
05259
MB400461 GASKET, FUEL TANK GAUGE |
MB400461 |
from US $5.54 |
||
|
05261
|
05261
MB400461 GASKET, FUEL TANK GAUGE |
MB400461 |
from US $5.54 |
||
|
05265C
|
05265C
MU601260 HOSE, FUEL TANK6x600 |
MU601260 |
US $15.54 |
||
|
05265D
|
05265D
MU601260 HOSE, FUEL TANK6x600 |
MU601260 |
US $15.54 |
||
|
05265E
|
05265E
MB923791
HOSE, FUEL TANK
|
MB923791 |
— | ||
|
05265J
|
05265J
MR100453
HOSE, FUEL TANK
|
MR100453 |
— | ||
|
05265J
|
05265J
MR342156 HOSE, FUEL TANK |
MR342156 |
US $16.42 |
||
|
05289B
|
05289B
MS440501 NUT, FUEL TANKWasher assembled,5 |
MS440501 |
from US $1.03 |
||
|
05289C
|
05289C
MS440504 NUTWasher assembled,10 |
MS440504 |
from US $0.66 |
||
|
05291C
|
05291C
MS660163 CLIP, ROCKER COVERD=11.6 |
MS660163 |
from US $0.84 |
||
|
05291D
|
05291D
MB329606 CLIP, FUEL RETURN LINE |
MB329606 |
US $4.51 |
||
|
05291E
|
05291E
MS660169 CLIP, FUEL TANKD=10 |
MS660169 |
from US $0.92 |
||
|
05291F
|
05291F
MB595890 CLIP, FUEL TANK |
MB595890 |
US $3.97 |
||
|
05292
|
05292
MF661023 CLAMP, ENG BREATHERD=48 |
MF661023 |
from US $2.60 |
||
|
05412
|
05412
MR212201 HOSE, FUEL HIGH PRESSURE |
MR212201 |
US $74 |
||
|
05500A
|
05500A
MR271067 FUEL PUMP ASSY |
MR271067 |
US $966.78 |
||
|
05506
|
05506
MR204495 FILTER, FUEL PUMP |
MR204495 |
from US $31.84 |
||
|
