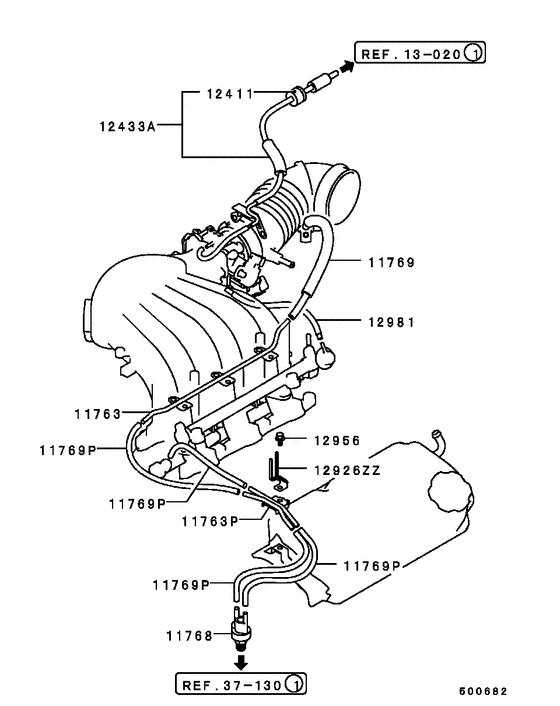

Emission control (ALL) Diagram Mitsubishi LEGNUM
- Year
- 1996 - 1997
- Sales region
- Japan
- Note
- 20ST,5FM/T
- drive
- 2WD
- transmission
- 5FM/T
- grade
- 20ST
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11763
|
11763
MD335598 PIPE, P/S IDLE UP AIR CONTROL VALVE |
MD335598 |
US $24.42 |
||
|
11763P
|
11763P
MD335600 PIPE, P/S IDLE UP AIR CONTROL VALVE |
MD335600 |
US $24.42 |
||
|
11768
|
11768
MD318203
VALVE, P/S IDLE UP AIR CONTROL
|
MD318203 |
— | ||
|
11769
|
11769
MD326317 SNAP RING, T/C INR |
MD326317 |
US $25.16 |
||
|
11769P
|
11769P
MD336408 HOSE, P/S IDLE UP AIR CONTROL VALVE |
MD336408 |
US $10.95 |
||
|
12411
|
12411
MD041839 CHECK VALVE, EMISSION CONTROL |
MD041839 |
US $20.72 |
||
|
12433A
|
12433A
MR340298 HOSE & PIPE ASSY, EMISSION CONTROL |
MR340298 |
US $40.70 |
||
|
12926ZZ
|
12926ZZ
MD336909 CLIP, INLET MANIFOLD |
MD336909 |
US $3.70 |
||
|
12956
|
12956
MF140003 BOLT, ACCEL CABLE SUPPORTFlange,6x12 |
MF140003 |
from US $0.88 |
||
|
12956
|
12956
MF140203 BOLT, ACCEL CABLE SUPPORTFlange,6x12 |
MF140203 |
from US $0.78 |
||
|
12981
|
12981
MR299373 HOSE ASSY, EMISSION VACUUM CONTROL |
MR299373 |
US $37 |
||
|
13 020
|
Fuel line & vapor gas control
13 020
|
||||
|
13 020
|
Fuel line & vapor gas control
13 020
|
||||
|
37 130
|
Power steering oil line
37 130
|
||||
