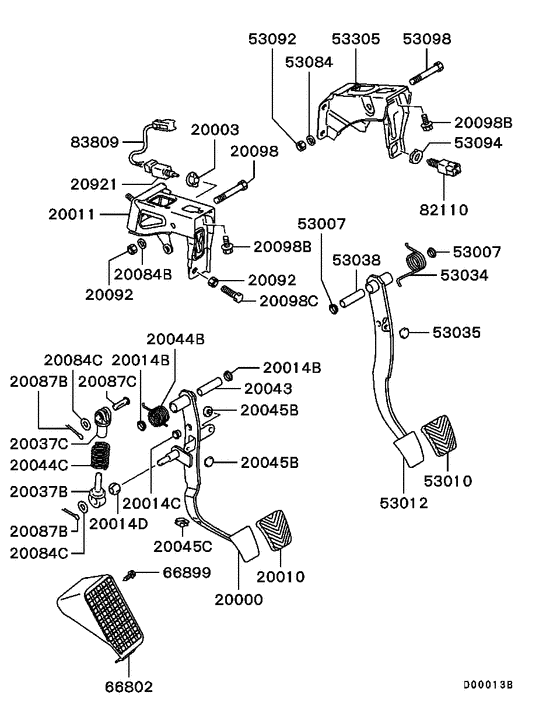

Brake & clutch pedal (M/T..0005.1-) Diagram Mitsubishi LEGNUM
- Year
- 1996 - 2002
- Sales region
- Japan
- Note
- VR-4 TYPE-S,5FM/T
- drive
- 4WD
- transmission
- 5FM/T
- grade
- VR-4 TYPE-S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
20000
|
20000
MR249035 PEDAL, CLUTCH |
MR249035 |
US $70.30 |
||
|
20000
|
20000
MR307606 PEDAL, CLUTCH |
MR307606 |
US $85.84 |
||
|
20003
|
20003
MR329959 CLIP, BRAKE PEDAL |
MR329959 |
US $3.70 |
||
|
20010
|
20010
MB193884 PAD, BRAKE PEDAL62x58-40 |
MB193884 |
from US $3.26 |
||
|
20011
|
20011
MR249033
BRACKET, CLUTCH PEDAL
|
MR249033 |
— | ||
| replacement | |||||
|
20011
|
20011
MR307605
BRACKET, CLUTCH PEDAL
|
MR307605 |
— | ||
|
20011
|
20011
MR307605
BRACKET, CLUTCH PEDAL
|
MR307605 |
— | ||
|
20014B
|
20014B
MR131206 BUSHING, BRAKE PEDAL14x10 |
MR131206 |
from US $4.79 |
||
|
20014C
|
20014C
MB555171 BUSHING, CLUTCH PEDAL10x8 |
MB555171 |
from US $4.11 |
||
|
20014D
|
20014D
MB807054 BUSHING, CLUTCH PEDAL10x16 |
MB807054 |
US $2.87 |
||
|
20037B
|
20037B
MB807046 ROD, CLUTCH PEDAL RETURN SPRING |
MB807046 |
US $23.26 |
||
|
20037C
|
20037C
MB807045 ROD, CLUTCH PEDAL RETURN SPRING |
MB807045 |
US $18.47 |
||
|
20043
|
20043
MR171374 SPACER, CLUTCH PEDAL14x49.3 |
MR171374 |
US $4.51 |
||
|
20044B
|
20044B
MR235337 SPRING, CLUTCH PEDAL RETURN |
MR235337 |
US $5.33 |
||
|
20044C
|
20044C
MB807307 SPRING, CLUTCH PEDAL RETURN |
MB807307 |
US $9.03 |
||
|
20045B
|
20045B
MR235515 STOPPER, CLUTCH PEDAL |
MR235515 |
US $4.65 |
||
|
20045C
|
20045C
MR289922 STOPPER, CLUTCH PEDAL |
MR289922 |
US $3.55 |
||
|
20084B
|
20084B
MF450406 WASHERSpring,10 |
MF450406 |
from US $0.43 |
||
|
20084C
|
20084C
MB151106 WASHER, CLUTCH M/CYL10 |
MB151106 |
US $2.74 |
||
|
20087B
|
20087B
MF472052 PIN, FUEL TANKSplit,2.5x20 |
MF472052 |
US $0.96 |
||
|
20087C
|
20087C
MB844735 PIN, CLUTCH PEDALClevis,10x30 |
MB844735 |
US $4.79 |
||
|
20092
|
20092
MF430006 NUT10 |
MF430006 |
from US $1.35 |
||
|
20098
|
20098
MF104896 BOLT, RR SUSP SPRING10x65 |
MF104896 |
from US $1.97 |
||
|
20098B
|
20098B
MS240125 BOLT, FUEL TANKWasher assembled,8x20 |
MS240125 |
from US $1.05 |
||
|
20098C
|
20098C
MS100135 BOLT, CLUTCH PEDAL10x35 |
MS100135 |
US $2.87 |
||
|
20921
|
20921
MR329955 SWITCH, CLUTCH |
MR329955 |
US $10.53 |
||
|
53007
|
53007
MR131206 BUSHING, BRAKE PEDAL14x10 |
MR131206 |
from US $4.79 |
||
|
53010
|
53010
MA152260 PAD, BRAKE PEDAL61x112 |
MA152260 |
from US $5.19 |
||
|
53010
|
53010
MB193884 PAD, BRAKE PEDAL62x58-40 |
MB193884 |
from US $3.26 |
||
|
53012
|
53012
MR235770 PEDAL, BRAKE |
MR235770 |
US $44.40 |
||
|
53012
|
53012
MR235772 PEDAL, BRAKE |
MR235772 |
US $54.02 |
||
|
53034
|
53034
MR103616 SPRING, BRAKE PEDAL RETURN |
MR103616 |
US $6.29 |
||
|
53035
|
53035
MR235515 STOPPER, CLUTCH PEDAL |
MR235515 |
US $4.65 |
||
|
53038
|
53038
MR171374 SPACER, CLUTCH PEDAL14x49.3 |
MR171374 |
US $4.51 |
||
|
53084
|
53084
MF450406 WASHERSpring,10 |
MF450406 |
from US $0.43 |
||
|
53092
|
53092
MF430006 NUT10 |
MF430006 |
from US $1.35 |
||
|
53094
|
53094
MR172162 CLIP, BRAKE PEDAL |
MR172162 |
from US $2.15 |
||
|
53098
|
53098
MF104896 BOLT, RR SUSP SPRING10x65 |
MF104896 |
from US $1.97 |
||
|
53305
|
53305
MR235767 MEMBER, PEDAL SUPPORT |
MR235767 |
US $31.08 |
||
|
53305
|
53305
MR235768 MEMBER, PEDAL SUPPORT |
MR235768 |
US $31.82 |
||
|
66802
|
66802
MB946522 FOOTREST |
MB946522 |
US $15.54 |
||
|
66899
|
66899
MS240055 BOLT, RR BUMPERWasher assembled,6x20 |
MS240055 |
US $2.07 |
||
|
82110
|
82110
MR228924 SWITCH, STOP LAMP |
MR228924 |
from US $14.08 |
||
|
83809
|
83809
MR329962 HARNESS, CLUTCH SWITCH |
MR329962 |
US $9.62 |
||
