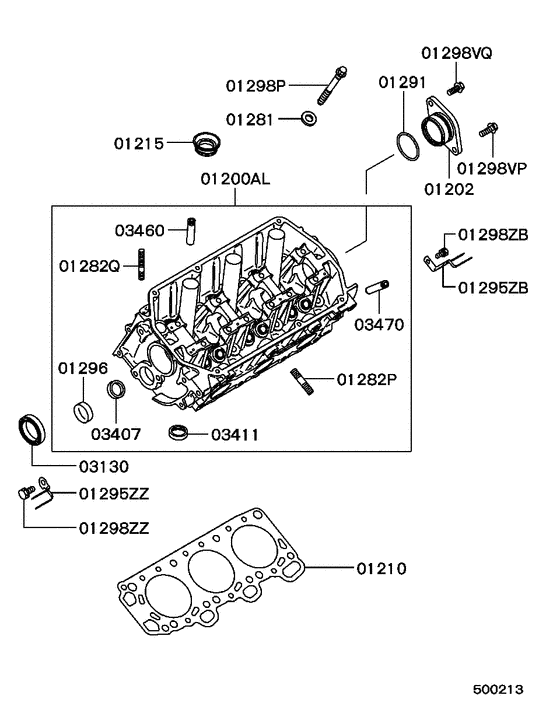

Cylinder head (ALL (LEFT SIDE)) Diagram Mitsubishi LEGNUM
- Year
- 1996 - 1998
- Sales region
- Japan
- Note
- 25ST,S4FA/T
- drive
- 4WD
- transmission
- S4FA/T
- grade
- 25ST
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01200AL
|
01200AL
MD332653 HEAD ASSY, ENG CYLINDER, LH |
MD332653 |
US $2,001.60 |
||
|
01200AL
|
01200AL
MD332674 HEAD ASSY, ENG CYLINDER, LH |
MD332674 |
US $1,497.60 |
||
|
01202
|
01202
MD172231 CASE, CYLINDER HEAD CAMSHAFT THRUST |
MD172231 |
US $40.70 |
||
|
01210
|
01210
MD333227 GASKET, CYLINDER HEAD |
MD333227 |
US $69.56 |
||
|
01210
|
01210
MD342320 GASKET, CYLINDER HEAD |
MD342320 |
from US $97.13 |
||
|
01215
|
01215
MD198128 SEAL, CYLINDER HEAD SPARK PLUG GUIDERubber |
MD198128 |
from US $6.18 |
||
|
01281
|
01281
MD000436 WASHERPlain,10 |
MD000436 |
from US $2.15 |
||
|
01282P
|
01282P
MD122521 STUD, CYLINDER HEAD10x32 |
MD122521 |
from US $2.71 |
||
|
01282Q
|
01282Q
MS401433 STUD, CYLINDER HEAD8x40 |
MS401433 |
US $3.11 |
||
|
01291
|
01291
MF520031
O-RING, CYLINDER HEAD
|
MF520031 |
— | ||
| replacement | |||||
|
01291
|
01291
MN176208 O-RING, CYLINDER HEAD43.7 |
MN176208 |
from US $1.97 |
||
|
01295ZZ
|
01295ZZ
MD342188 CLIP, CYLINDER HEAD40 |
MD342188 |
US $2.22 |
||
|
01296
|
01296
MD166517 CAP, CYLINDER HEADSealing,32 |
MD166517 |
from US $2.73 |
||
|
01298P
|
01298P
MD164738 BOLT, CYLINDER HEADFlange,10x95 |
MD164738 |
from US $6.20 |
||
|
01298VP
|
01298VP
MF140225 BOLT, ENG WATER COOLERFlange,8x20 |
MF140225 |
from US $0.98 |
||
|
01298VQ
|
01298VQ
MF241256 BOLT, ENG OIL PANWasher assembled,8x28 |
MF241256 |
US $2.74 |
||
|
01298ZZ
|
01298ZZ
MF241250 BOLT, ELECTRIC FUEL PUMPWasher assembled,8x14 |
MF241250 |
US $2.46 |
||
|
03130
|
03130
MD153103
OIL SEAL, CAMSHAFT
|
MD153103 |
— | ||
| replacement | |||||
|
03130
|
03130
MD372536 OIL SEAL, CAMSHAFT |
MD372536 |
from US $7.33 |
||
|
03407
|
03407
MD182227 SEAT, EXHAUST VALVEO/size 0.30 |
MD182227 |
US $34.04 |
||
|
03407
|
03407
MD182228 SEAT, EXHAUST VALVEO/size 0.60 |
MD182228 |
US $34.04 |
||
|
03407
|
03407
MD183887 SEAT, EXHAUST VALVEO/size 0.30 |
MD183887 |
US $31.08 |
||
|
03407
|
03407
MD183888 SEAT, EXHAUST VALVEO/size 0.60 |
MD183888 |
US $31.08 |
||
|
03411
|
03411
MD180395 SEAT, INLET VALVEO/size 0.30 |
MD180395 |
US $34.04 |
||
|
03411
|
03411
MD180396 SEAT, INLET VALVEO/size 0.60 |
MD180396 |
US $34.04 |
||
|
03411
|
03411
MD183881 SEAT, INLET VALVEO/size 0.30 |
MD183881 |
US $31.08 |
||
|
03411
|
03411
MD183882 SEAT, INLET VALVEO/size 0.60 |
MD183882 |
US $31.08 |
||
|
03460
|
03460
MD337622 GUIDE, INLET VALVEO/size 0.05 |
MD337622 |
from US $24.45 |
||
|
03460
|
03460
MD337623 GUIDE, INLET VALVEO/size 0.25 |
MD337623 |
US $28.86 |
||
|
03460
|
03460
MD337624 GUIDE, INLET VALVEO/size 0.50 |
MD337624 |
US $28.86 |
||
|
03470
|
03470
MD337625 GUIDE, EXHAUST VALVEO/size 0.05 |
MD337625 |
from US $25.90 |
||
|
03470
|
03470
MD337626 GUIDE, EXHAUST VALVEO/size 0.25 |
MD337626 |
US $28.86 |
||
|
03470
|
03470
MD337627 GUIDE, EXHAUST VALVEO/size 0.50 |
MD337627 |
US $28.86 |
||
