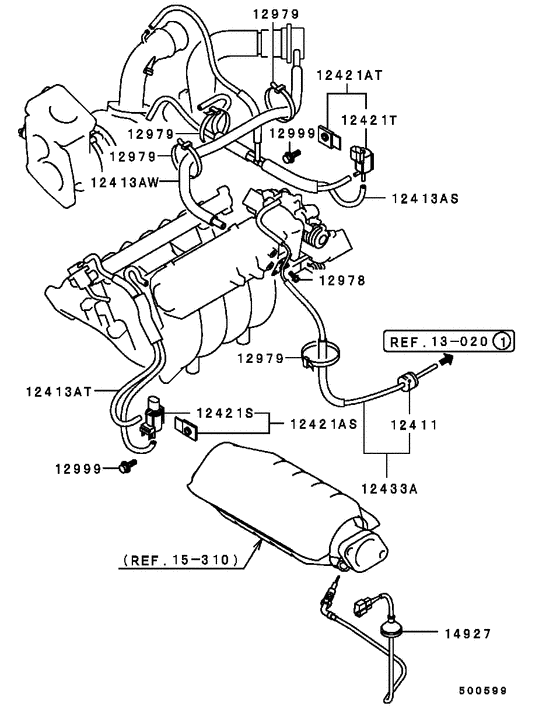

Emission control (9509.1- W/TURBO) Diagram Mitsubishi LIBERO
- Year
- 1993 - 2000
- Sales region
- Japan
- Note
- GT(4WD,I/C-TURBO),5FM/T
- drive
- 4WD/4WD
- transmission
- 5FM/T
- grade
- GT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
12411
|
12411
MD041839 CHECK VALVE, EMISSION CONTROL |
MD041839 |
US $20.16 |
||
|
12413AS
|
12413AS
MR126708 HOSE ASSY, EMISSION VACUUM CONTROL |
MR126708 |
US $63.36 |
||
|
12413AS
|
12413AS
MR266311 HOSE ASSY, EMISSION VACUUM CONTROL |
MR266311 |
US $59.76 |
||
|
12413AT
|
12413AT
MD174407 HOSE ASSY, EMISSION VACUUM CONTROL |
MD174407 |
US $15.84 |
||
|
12413AW
|
12413AW
MB924497 HOSE ASSY, EMISSION VACUUM CONTROL |
MB924497 |
US $25.20 |
||
|
12421AS
|
12421AS
MD121719 VALVE, EMISSION SOLENOID |
MD121719 |
US $73.44 |
||
|
12421AT
|
12421AT
MB925905 VALVE ASSY, EMISSION SOLENOID |
MB925905 |
US $82.08 |
||
|
12421S
|
12421S
MD113721 VALVE, EMISSION SOLENOID |
MD113721 |
US $75.90 |
||
|
12421T
|
12421T
MD145201 VALVE, EMISSION SOLENOID |
MD145201 |
US $77.22 |
||
|
12433A
|
12433A
MD173476 HOSE & PIPE ASSY, EMISSION CONTROL |
MD173476 |
US $38.88 |
||
|
12433A
|
12433A
MR266061 HOSE & PIPE ASSY, EMISSION CONTROL |
MR266061 |
US $41.76 |
||
|
12978
|
12978
MF140202 BOLT, FLANGE (6x10)Flange,6x10 |
MF140202 |
from US $1.73 |
||
|
12979
|
12979
MB249337 BAND, ROCKER COVERL=290 |
MB249337 |
US $2.30 |
||
|
12979
|
12979
MB249338 BAND, ROCKER COVERL=129.5 |
MB249338 |
US $2.77 |
||
|
12999
|
12999
MF244826 BOLTWasher assembled,6x20 |
MF244826 |
from US $1.12 |
||
|
14927
|
14927
MD155654 SENSOR, EXHAUST HIGH TEMPERATURE |
MD155654 |
US $230.40 |
||
|
13 020
|
Fuel line & vapor gas control
13 020
|
||||
|
15 310
|
Exhaust manifold
15 310
|
||||
|
15 310
|
Exhaust manifold
15 310
|
||||
