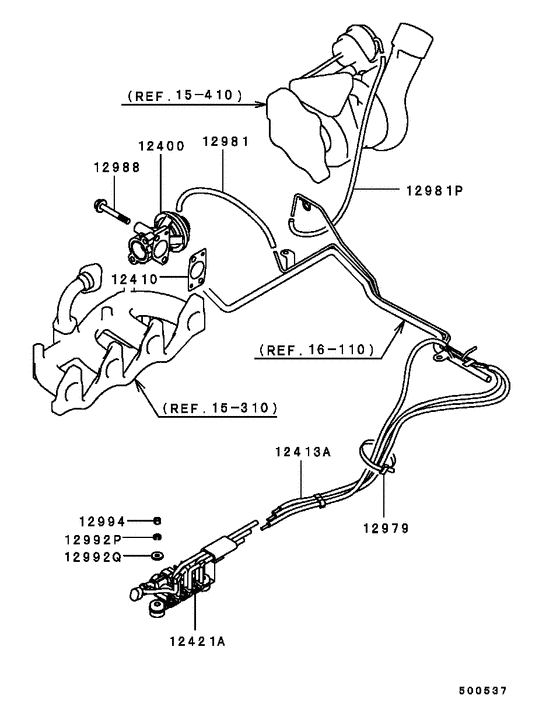

Emission control (W/TURBO) Diagram Mitsubishi LIBERO
- Year
- 1994 - 2002
- Sales region
- Japan
- Note
- E(4WD/TURBO),4FA/T
- drive
- 4WD/4WD
- transmission
- 4FA/T
- grade
- E
- body
- VAN
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
12400
|
12400
MD126977 VALVE, EGR |
MD126977 |
US $272.23 |
||
|
12410
|
12410
MD072289
GASKET, EGR VALVE
|
MD072289 |
— | ||
| replacement | |||||
|
12410
|
12410
MD300522 GASKET, EGR VALVE |
MD300522 |
from US $1.81 |
||
|
12410
|
12410
MD300522 GASKET, EGR VALVE |
MD300522 |
from US $1.81 |
||
|
12413A
|
12413A
MR188699 HOSE ASSY, EMISSION VACUUM CONTROL |
MR188699 |
US $35.52 |
||
|
12421A
|
12421A
MR187667 VALVE ASSY, EMISSION SOLENOID |
MR187667 |
US $260.48 |
||
|
12979
|
12979
MB249339 BAND, ENG BREATHERL=169.5 |
MB249339 |
from US $1.50 |
||
|
12981
|
12981
MR577074 HOSE, EMISSION CONTROL EQUIP3x140 |
MR577074 |
US $3.70 |
||
|
12981
|
12981
MS632992 HOSE, EMISSION VACUUM CONTROL EQUIP3x2000 |
MS632992 |
from US $35.10 |
||
|
12981P
|
12981P
MS632792 HOSE, EMISSION SOLENOID VALVE3x2000 |
MS632792 |
US $54.04 |
||
|
12988
|
12988
MD075967 BOLT, EGR EQUIPWasher assembled,8x60 |
MD075967 |
US $5.92 |
||
|
12992P
|
12992P
MF450404 WASHER, ENG OIL PANSpring,6 |
MF450404 |
from US $0.62 |
||
|
12992Q
|
12992Q
MF450153 WASHER, TIMING POWER TRAIN CASEPlain,6 |
MF450153 |
from US $0.25 |
||
|
12994
|
12994
MF430004 NUT, ENG OIL PAN6 |
MF430004 |
from US $0.99 |
||
|
12994
|
12994
MS440522 NUT, FUEL TANKWasher assembled,6 |
MS440522 |
from US $0.96 |
||
|
