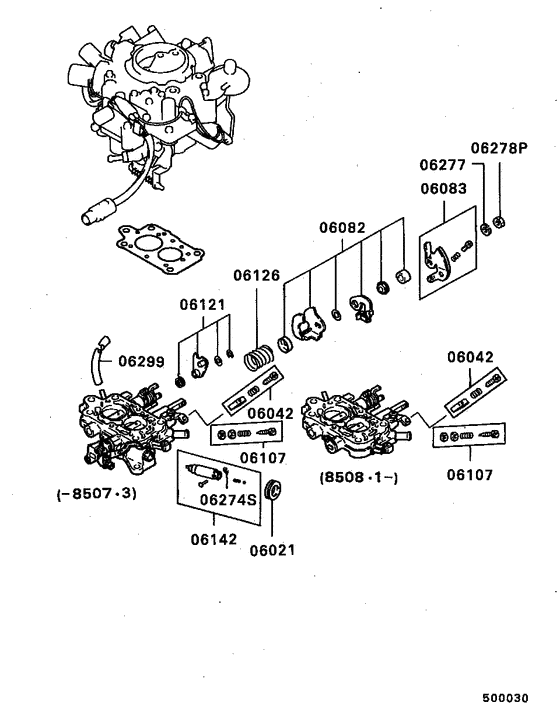

Carburetor (W/TURBO (INNER PARTS LOWER)) Diagram Mitsubishi MINICA
- Year
- 1983 - 1986
- Sales region
- Japan
- Note
- TURBO,5FM/T
- drive
- 2WD
- transmission
- 5FM/T
- body
- SEDAN
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
06021
|
06021
MD606651 CAP, CARB SUB EGR VALVE |
MD606651 |
US $30.34 |
||
|
06082
|
06082
MD612030 LEVER KIT, CARB THROTTLE CONTROL LINK |
MD612030 |
US $82.14 |
||
|
06083
|
06083
MD612024 LEVER KIT, CARB THROTTLE |
MD612024 |
US $40.70 |
||
|
06107
|
06107
MD612051 SCREW, CARB INR |
MD612051 |
US $19.24 |
||
|
06121
|
06121
MD608417 SPRING KIT, CARB SECONDARY THROTTLE |
MD608417 |
US $22.20 |
||
|
06126
|
06126
MD608424 SPRING, CARB THROTTLE RETURN |
MD608424 |
US $14.06 |
||
|
06142
|
06142
MD608415 VALVE KIT, CARB SUB EGR |
MD608415 |
US $213.12 |
||
|
06274S
|
06274S
MD606522 SNAP RING, CARB INR |
MD606522 |
US $4.44 |
||
|
06277
|
06277
MF450405 WASHER, CYLINDER HEADSpring,8 |
MF450405 |
from US $0.43 |
||
|
06278P
|
06278P
MD600059 NUT, CARB INR |
MD600059 |
US $3.26 |
||
|
06299
|
06299
MD612052 HOSE, CARB INR |
MD612052 |
US $20.72 |
