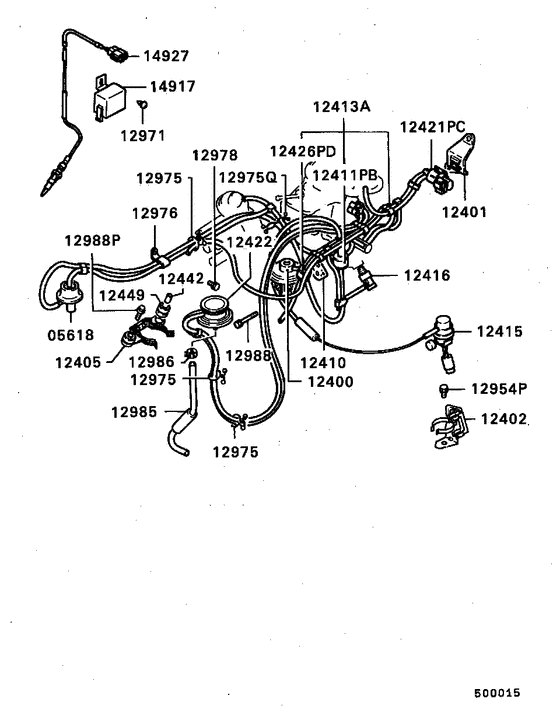

Emission control (8508.1- W/O TURBO) Diagram Mitsubishi MINICA
- Year
- 1985 - 1986
- Sales region
- Japan
- Note
- XG OPENTOP(SENSHUKAI),5FM/T
- drive
- 2WD
- transmission
- 5FM/T
- grade
- XG OPENTOP
- body
- SEDAN
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
05618
|
05618
MD026678 VALVE, PURGE CONTROL |
MD026678 |
US $25.90 |
||
|
12400
|
12400
MD102784 VALVE, EGR |
MD102784 |
US $139.12 |
||
|
12401
|
12401
MD079670 BRACKET, EMISSION CONTROL EQUIP |
MD079670 |
US $20.72 |
||
|
12405
|
12405
MD102487 BRACKET, EMISSION VACUUM CONTROL REGULATOR VALVE |
MD102487 |
US $46.62 |
||
|
12410
|
12410
MD088604
GASKET, EGR VALVE
|
MD088604 |
— | ||
| replacement | |||||
|
12410
|
12410
MD119127 GASKET, EGR VALVE |
MD119127 |
from US $2.44 |
||
|
12411PB
|
12411PB
MD041839 CHECK VALVE, EMISSION CONTROL |
MD041839 |
US $20.72 |
||
|
12413A
|
12413A
MD098707 HOSE ASSY, EMISSION VACUUM CONTROL |
MD098707 |
US $189.44 |
||
|
12416
|
12416
MD009228 THERMO-VALVE, EMISSION CONTROL |
MD009228 |
US $56.98 |
||
|
12421PC
|
12421PC
MD074898 VALVE, EMISSION SOLENOID |
MD074898 |
US $68.08 |
||
|
12422
|
12422
MD104266 VALVE, EMISSION VACUUM CONTROL REGULATOR |
MD104266 |
US $59.94 |
||
|
12426PD
|
12426PD
MD062579 VALVE, EMISSION CONTROL DELAY |
MD062579 |
US $31.08 |
||
|
12954P
|
12954P
MF243648 BOLT, ENG SUPPORT RODWasher assembled,8x14 |
MF243648 |
from US $0.88 |
||
|
12971
|
12971
MF453031 SCREW 5x12Tapping,5x12 |
MF453031 |
from US $1.50 |
||
|
12975
|
12975
MD006478 CLIP, FUEL VAPOR CONTROL LINE25 |
MD006478 |
US $2.66 |
||
|
12975Q
|
12975Q
MS470372 CLIP, FUEL FILLER LID LOCKING14.5-17 |
MS470372 |
US $2.81 |
||
|
12976
|
12976
MD104516 CLAMP, EMISSION CONTROL EQUIP |
MD104516 |
US $6.81 |
||
|
12978
|
12978
MS240141 BOLT, FUEL FILLER LID PANELWasher assembled,6x16 |
MS240141 |
from US $1.25 |
||
|
12985
|
12985
MD094304 HOSE, EGR EQUIP |
MD094304 |
US $32.56 |
||
|
12986
|
12986
MS660169 CLIP, FUEL TANKD=10 |
MS660169 |
from US $0.92 |
||
|
12988
|
12988
MF241236 BOLT, ENG OIL PUMPWasher assembled,6x45 |
MF241236 |
US $1.78 |
||
|
12988
|
12988
MF241263 BOLT, BALANCER BELT TRAINWasher assembled,8x50 |
MF241263 |
US $1.50 |
||
|
12988P
|
12988P
MF140003 BOLT, ACCEL CABLE SUPPORTFlange,6x12 |
MF140003 |
from US $0.88 |
||
|
12988P
|
12988P
MF247230 BOLT, ENG OIL COOLER LINEWasher assembled,6x30 |
MF247230 |
US $2.74 |
||
|
12988P
|
12988P
MF247232 BOLT, ELECTRIC FUEL PUMPWasher assembled,6x35 |
MF247232 |
US $2.66 |
||
|
14917
|
14917
MD080671 RELAY, HIGH TEMPERATURE LAMPK8t51071 |
MD080671 |
US $39.22 |
||
|
14927
|
14927
MD080672 SENSOR, EXHAUST HIGH TEMPERATURE |
MD080672 |
US $244.20 |
||
