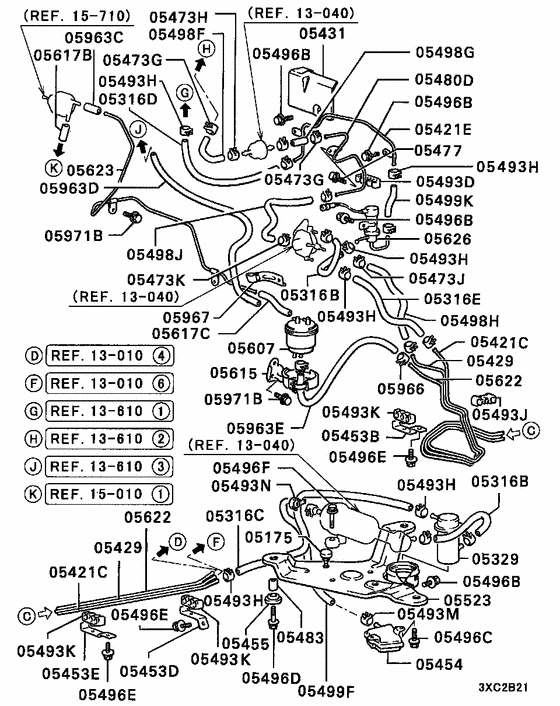

Fuel line & vapor gas control (-8612.3 TURBO) Diagram Mitsubishi MINICA
- Year
- 1985 - 1986
- Sales region
- Japan
- Note
- TURBO(OPENTOP),5FM/T
- drive
- 2WD
- transmission
- 5FM/T
- grade
- OPENTOP
- body
- SEDAN
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
05175
|
05175
MB348879 STOPPER, FUEL TANK PROTECTOR |
MB348879 |
US $3.70 |
||
|
05316B
|
05316B
MB248905 HOSE, FUEL FILTER HIGH PRESSURE |
MB248905 |
US $34.78 |
||
|
05316C
|
05316C
MB248906 HOSE, FUEL FILTER HIGH PRESSURE |
MB248906 |
US $45.88 |
||
|
05316D
|
05316D
MB248903 HOSE, FUEL FILTER HIGH PRESSURE |
MB248903 |
US $36.26 |
||
|
05316E
|
05316E
MB248908 HOSE, FUEL FILTER HIGH PRESSURE |
MB248908 |
US $35.52 |
||
|
05329
|
05329
MB329957 FUEL FILTER ASSY |
MB329957 |
US $66.60 |
||
|
05421C
|
05421C
MB329990 TUBE, FUEL MAIN |
MB329990 |
US $60.68 |
||
|
05421E
|
05421E
MB329995 TUBE, FUEL MAIN |
MB329995 |
US $49.58 |
||
|
05429
|
05429
MB329991 TUBE, FUEL LINE |
MB329991 |
US $58.46 |
||
|
05431
|
05431
MB316985 PROTECTOR, FUEL PIPE |
MB316985 |
US $9.18 |
||
|
05453B
|
05453B
MB248477 SUPPORT, FUEL LINE |
MB248477 |
US $4.74 |
||
|
05453D
|
05453D
MB329940 SUPPORT, FUEL LINE |
MB329940 |
US $4.74 |
||
|
05453D
|
05453D
MB503824 SUPPORT, FUEL LINE |
MB503824 |
US $7.99 |
||
|
05453E
|
05453E
MB329947 SUPPORT, FUEL LINE |
MB329947 |
US $3.85 |
||
|
05454
|
05454
MB348880 CASE, FUEL LINE |
MB348880 |
US $60.68 |
||
|
05455
|
05455
MB247172 CUSHION, FUEL TANK |
MB247172 |
US $6.81 |
||
|
05473G
|
05473G
MB329606 CLIP, FUEL RETURN LINE |
MB329606 |
US $4.51 |
||
|
05473H
|
05473H
MB348710 CLIP, FUEL RETURN LINE11 |
MB348710 |
US $3.55 |
||
|
05473J
|
05473J
MB248923 CLIP, FUEL TANK13.1 |
MB248923 |
from US $2.36 |
||
|
05473K
|
05473K
MS660163 CLIP, ROCKER COVERD=11.6 |
MS660163 |
from US $0.84 |
||
|
05477
|
05477
MS240041 BOLT, ENG OIL COOLER LINEWasher assembled,6x16 |
MS240041 |
from US $1.01 |
||
|
05477
|
05477
MS240121 BOLT, CONNRODWasher assembled,6x16 |
MS240121 |
from US $1.70 |
||
|
05480D
|
05480D
MB329996 TUBE, FUEL LINE |
MB329996 |
US $58.46 |
||
|
05483
|
05483
MB043435 SPACER, FUEL TANK8x17 |
MB043435 |
US $10.80 |
||
|
05493D
|
05493D
MB329945 CLIP, FUEL LINE |
MB329945 |
US $2.52 |
||
|
05493H
|
05493H
MB248923 CLIP, FUEL TANK13.1 |
MB248923 |
from US $2.36 |
||
|
05493J
|
05493J
MB348709 CLIP, FUEL LINE7.8x2,6.2 |
MB348709 |
US $4.74 |
||
|
05493K
|
05493K
MB329956 CLIP, FUEL LINE8x2,6.4 |
MB329956 |
US $4.74 |
||
|
05493M
|
05493M
MS660168 CLIP, ROCKER COVERD=17.8 |
MS660168 |
from US $1.74 |
||
|
05493N
|
05493N
MB348755 CLIP, FUEL LINE19,14 |
MB348755 |
US $4.74 |
||
|
05496B
|
05496B
MS240041 BOLT, ENG OIL COOLER LINEWasher assembled,6x16 |
MS240041 |
from US $1.01 |
||
|
05496C
|
05496C
MF240023 BOLT, FUEL TANKWasher assembled,6x12 |
MF240023 |
from US $0.60 |
||
|
05496C
|
05496C
MF243622 BOLT, ROCKER COVERWasher assembled,6x12 |
MF243622 |
from US $1.33 |
||
|
05496D
|
05496D
MF247230 BOLT, ENG OIL COOLER LINEWasher assembled,6x30 |
MF247230 |
US $2.74 |
||
|
05496E
|
05496E
MS240121 BOLT, CONNRODWasher assembled,6x16 |
MS240121 |
from US $1.70 |
||
|
05496F
|
05496F
MB133275 BOLT, FUEL LINEWasher assembled (earth),6x30 |
MB133275 |
US $2.81 |
||
|
05498F
|
05498F
MB348679 HOSE, FUEL RETURN LINE5.6 |
MB348679 |
US $14.65 |
||
|
05498G
|
05498G
MS642596 HOSE, FUEL TANK6x2000 |
MS642596 |
from US $37.97 |
||
|
05498H
|
05498H
MB503822 HOSE, FUEL RETURN LINE7.4 |
MB503822 |
US $14.36 |
||
|
05498J
|
05498J
MB348680 HOSE, FUEL RETURN LINE5.6 |
MB348680 |
US $20.72 |
||
|
05499F
|
05499F
MB329955 HOSE, FUEL LINERubber |
MB329955 |
US $53.28 |
||
|
05499K
|
05499K
MB248901 HOSE, FUEL LINERubber,7.5x160 |
MB248901 |
US $33.30 |
||
|
05523
|
05523
MB329958 SUPPORT, FUEL PUMP |
MB329958 |
US $59.20 |
||
|
05607
|
05607
MB329821 CANISTER, FUEL VAPOR |
MB329821 |
US $69.56 |
||
|
05615
|
05615
MB348008 HOLDER, FUEL VAPOR CANISTER |
MB348008 |
US $24.42 |
||
|
05617B
|
05617B
MB348449 HOSE, FUEL VAPOR PURGE |
MB348449 |
US $10.06 |
||
|
05617C
|
05617C
MS605580 HOSE, FUEL TANK11x2000 |
MS605580 |
US $72.50 |
||
|
05622
|
05622
MB248472 PIPE, FUEL VAPOR |
MB248472 |
US $35.52 |
||
|
05623
|
05623
MB348019 PIPE, FUEL VAPOR PURGE |
MB348019 |
US $45.14 |
||
|
05626
|
05626
MB348088 VALVE, MAIN FUEL LINE FUEL CUT |
MB348088 |
US $204.24 |
||
|
05963C
|
05963C
MS605599 HOSE, FUEL TANK11x10000 |
MS605599 |
US $213.12 |
||
|
05963D
|
05963D
MB348779 HOSE, FUEL VAPOR CONTROL LINE |
MB348779 |
US $37.74 |
||
|
05963E
|
05963E
MB348000 HOSE, FUEL VAPOR CONTROL LINE |
MB348000 |
US $11.84 |
||
|
05966
|
05966
MS660169 CLIP, FUEL TANKD=10 |
MS660169 |
from US $0.92 |
||
|
05967
|
05967
MS470399 CLIP, FUEL VAPOR CONTROL LINE12-16.5 |
MS470399 |
US $3.70 |
||
|
05971B
|
05971B
MS240041 BOLT, ENG OIL COOLER LINEWasher assembled,6x16 |
MS240041 |
from US $1.01 |
||
|
05971B
|
05971B
MS240121 BOLT, CONNRODWasher assembled,6x16 |
MS240121 |
from US $1.70 |
||
|
