Component List MINICA
A/t case (ALL (CASE & CONVERTER HOUSING))

Difficulties in parts search?

Parts list

Difficulties in parts search?

	Description	OEM Part #	Price
21205	21205 MD078333 BRACKET, T/M MOUNTING ROLL ROD	MD078333	US $34.78
25156	25156 MB001265 PLUG KIT, RR AXLE HOUSING	MB001265	from US $4.49
26100A	26100A MD713087 CASE ASSY, A/T	MD713087	US $995.90
26100A	26100A MD719502 CASE ASSY, A/T	MD719502	US $875.06
26106	26106 MD715645 BRACKET, A/T CASE MOUNTING	MD715645	US $22.20
26120	26120 MD713069 GASKET, A/T CASE TO CLUTCH HOUSING	MD713069	US $19.24
	replacement
26120	26120 2315A027 GASKET, A/T CASE TO CLUTCH HOUSING	2315A027	US $19.24
26133	26133 MD713086 HOUSING, A/T TORQUE CONVERTER	MD713086	US $687.23
26133	26133 MD719501 HOUSING, A/T TORQUE CONVERTER	MD719501	US $586.77
26134	26134 MD715885 OIL PAN, A/T CASE	MD715885	US $99.90
26134	26134 MD718493 OIL PAN, A/T CASE	MD718493	US $42.92
26137	26137 MD714545 PAWL, A/T CASE PARKING	MD714545	US $15.54
26148	26148 MD715889 NIPPLE, A/T CASE 4	MD715889	US $5.92
26152	26152 MD713049 26152	MD713049	US $5.77
26156	26156 MD713079 26156	MD713079	US $3.40
26172	26172 MD713093 VALVE, A/T CASE SOLENOID	MD713093	US $119.14
26176	26176 MD714774 SHAFT, A/T CONVERTER HOUSING REACTION	MD714774	US $187.96
26210	26210 MD707198 PLUG KIT, A/T CASE	MD707198	US $5.48
26269	26269 MD715349 COVER, CLUTCH HOUSING INSPECTION HOLE	MD715349	US $5.18
26277	26277 MF450406 WASHER Spring,10	MF450406	from US $0.41
26281	26281 MD711635 SCREW, A/T CASE 10x52	MD711635	US $5.92
26283XB	26283XB MD707204 SEAL RING, A/T CASE 22	MD707204	US $5.18
26285	26285 MF472405 PIN, CYLINDER BLOCK Dowel,10x20	MF472405	from US $1.31
26286PB	26286PB MD707200 O-RING, OIL FILTER	MD707200	—
	replacement
26286PB	26286PB MR486844 O-RING, A/T CASE 9.8	MR486844	from US $1.25
26286PC	26286PC MD707187 O-RING, A/T CASE	MD707187	—
	replacement
26286PC	26286PC 2502A002 PLUG KIT, A/T CASE	2502A002	US $2.46
26286UB	26286UB MD707752 O-RING, A/T CASE 13	MD707752	US $4.24
26287	26287 MF430122 NUT, ENG RR MOUNTING 10	MF430122	from US $0.99
26288	26288 MS632592 HOSE, EMISSION VACUUM CONTROL EQUIP 3x2000	MS632592	US $54.72
26289	26289 MB001294 Gasket, Drain Plug D=18.2	MB001294	from US $1.11
26291	26291 MD707199 JOINT, A/T CASE	MD707199	US $10.21
	replacement
26291	26291 2502A007 JOINT, A/T CASE	2502A007	US $6.66
26292	26292 MB043630 CLIP, CRUISE CONTROL EQUIP 8.5-40/55	MB043630	US $2.96
	replacement
26292	26292 MB305867 CLIP, SPEEDOMETER CABLE 8.5-50/65	MB305867	US $4.65
26293	26293 MS660158 CLIP, FUEL TANK D=6.8	MS660158	US $2.60
26295	26295 MS471101 BUSHING, CYLINDER HEAD 6x9	MS471101	US $3.97
26297SB	26297SB MF140203 BOLT, ACCEL CABLE SUPPORT Flange,6x12	MF140203	from US $0.68
26297SC	26297SC MF241223 BOLT, ROCKER COVER Washer assembled,6x12	MF241223	from US $1.05
26297YB	26297YB MF140224 BOLT, ENG MOUNTING Flange,8x18	MF140224	from US $0.92
26297YC	26297YC MF140222 BOLT, ENG HANGER Flange,8x14	MF140222	from US $0.98
26297YD	26297YD MF241256 BOLT, ENG OIL PAN Washer assembled,8x28	MF241256	US $2.74
26297ZB	26297ZB MF140270 BOLT, ENG SUPPORT ROD Flange,10x60	MF140270	from US $2.01
26297ZC	26297ZC MF140257 BOLT, M/T CASE Flange,10x18	MF140257	from US $1.33
26297ZD	26297ZD MF140258 BOLT, ENG WATER COOLER Flange,10x20	MF140258	from US $1.23
26298PB	26298PB MF540009 BALL, CYLINDER HEAD 9/32	MF540009	US $1.37
26298PC	26298PC MF540008 BALL, CYLINDER HEAD 1/4	MF540008	from US $1.31
26299	26299 MS661120 PLUG, CYLINDER HEAD Taper,1/8	MS661120	US $2.52
26303	26303 MD717475 GAUGE, A/T OIL LEVEL	MD717475	US $23.68
26303	26303 MD718383 GAUGE, A/T OIL LEVEL	MD718383	US $11.40
26308	26308 MD715888 GUIDE, A/T CASE OIL LEVEL GAUGE	MD715888	US $17.76
26310	26310 MD713071 GASKET, A/T OIL PAN	MD713071	US $9.77
26400	26400 MD715934 LEVER, A/T MANUAL CONTROL	MD715934	US $57.72
26400	26400 MD721272 LEVER, A/T MANUAL CONTROL	MD721272	US $51.06
26415	26415 MD712131 PISTON, A/T ACCUMULATOR	MD712131	US $33.30
26434	26434 MD716641 SWITCH, A/T CASE INHIBITOR	MD716641	US $98.42
26434	26434 MD721271 SWITCH, A/T CASE INHIBITOR	MD721271	US $113.22
26443	26443 MD711675 COVER, A/T CASE INHIBITOR SWITCH	MD711675	US $9.18
26444	26444 MD713058 LEVER, A/T PARKING, OTR	MD713058	US $39.96
26445	26445 MD713059 SPRING, A/T PARKING LEVER	MD713059	US $2.66
26446	26446 MD713080 ROLLER, A/T PARKING SHAFT	MD713080	US $2.46
26447	26447 MD715589 LEVER, A/T PARKING, INR	MD715589	US $45.88
26448	26448 MD715937 COLLAR, A/T CONTROL EQUIP	MD715937	US $7.55
26901	26901 MD715505 BRACKET, A/T CONTROL CABLE SUPPORT	MD715505	US $22.94
26966	26966 MF522005 SNAP RING, CLUTCH PEDAL 14	MF522005	US $2.22
26967	26967 MT209143 PIN, M/T POWER TRAIN Spring	MT209143	US $3.56
26969PB	26969PB MD707200 O-RING, OIL FILTER	MD707200	—
	replacement
26969PB	26969PB MR486844 O-RING, A/T CASE 9.8	MR486844	from US $1.25
26969PC	26969PC MD711687 O-RING, A/T CONTROL EQUIP 9.8	MD711687	US $2.81
26976	26976 MF140215 BOLT, TIMING BELT COVER Flange,6x40	MF140215	from US $0.78
26976	26976 MF140216 BOLT, TIMING BELT COVER Flange,6x45	MF140216	US $2.87
27011	27011 MD707575 OIL SEAL, A/T OIL PUMP BODY	MD707575	from US $10.51
	replacement
27011	27011 MR967673 OIL SEAL, A/T CONVERTER HOUSING	MR967673	from US $7.98
32268	32268 MD707184 OIL SEAL,RR DIFF SIDE BEARING,LH	MD707184	from US $4.78

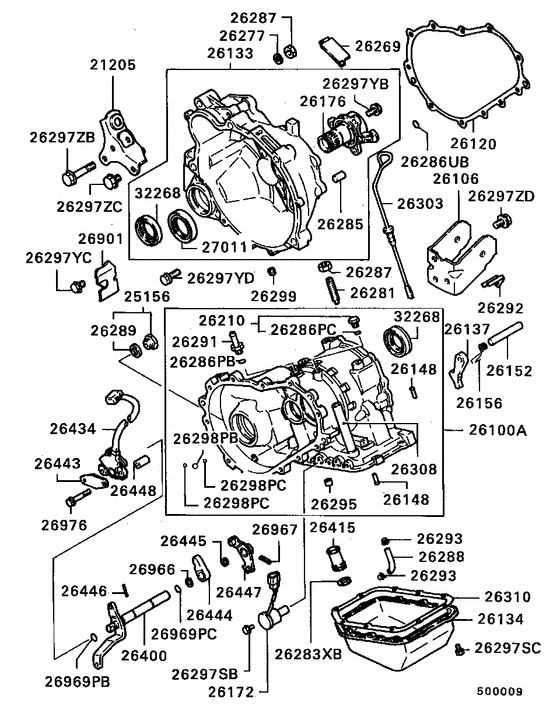

A/t case (ALL (CASE & CONVERTER HOUSING)) Diagram Mitsubishi MINICA Japan 7937379-629697

A/t case (ALL (CASE & CONVERTER HOUSING)) Diagram Mitsubishi MINICA Japan 7937379-629697
