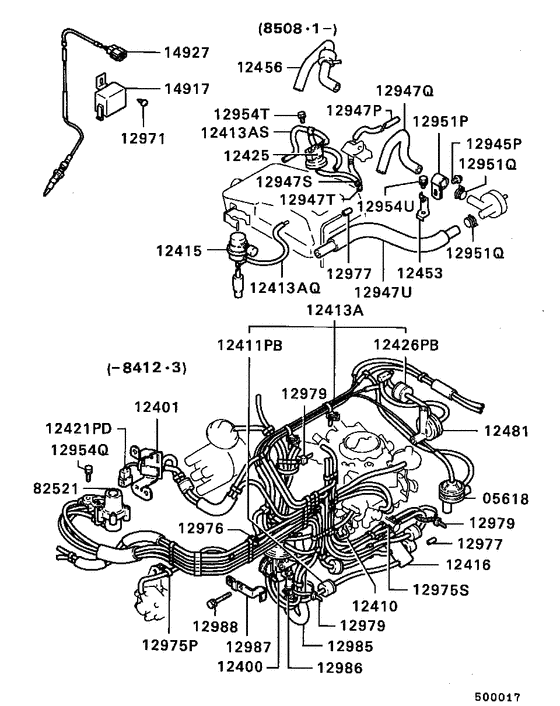

Emission control (T/C(HI TEMP SENSOR,PURGE,HOSE -8412.3)) Diagram Mitsubishi MINICA
- Year
- 1983 - 1984
- Sales region
- Japan
- Note
- TURBO-G,5FM/T(-8412)
- drive
- 2WD
- transmission
- 5FM/T
- grade
- G
- body
- VAN
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
05618
|
05618
MD011227
VALVE, PURGE CONTROL
|
MD011227 |
— | ||
|
12400
|
12400
MD076119 VALVE, EGR |
MD076119 |
US $74.74 |
||
|
12410
|
12410
MD003358
GASKET, EGR VALVE
|
MD003358 |
— | ||
| replacement | |||||
|
12410
|
12410
MD026567 GASKET, EGR VALVE |
MD026567 |
US $2.74 |
||
|
12410
|
12410
MD088604
GASKET, EGR VALVE
|
MD088604 |
— | ||
| replacement | |||||
|
12410
|
12410
MD119127 GASKET, EGR VALVE |
MD119127 |
from US $2.42 |
||
|
12411PB
|
12411PB
MD041839 CHECK VALVE, EMISSION CONTROL |
MD041839 |
US $20.72 |
||
|
12413A
|
12413A
MD084269 HOSE ASSY, EMISSION VACUUM CONTROL |
MD084269 |
US $187.96 |
||
|
12413AQ
|
12413AQ
MD084491 HOSE ASSY, EMISSION VACUUM CONTROL |
MD084491 |
US $7.84 |
||
|
12413AQ
|
12413AQ
MD085035 HOSE ASSY, EMISSION VACUUM CONTROL |
MD085035 |
US $16.28 |
||
|
12413AS
|
12413AS
MD078569 HOSE ASSY, EMISSION VACUUM CONTROL |
MD078569 |
US $19.98 |
||
|
12415
|
12415
MD079470 SWITCH, EMISSION VACUUM CONTROL |
MD079470 |
US $119.88 |
||
|
12416
|
12416
MD076114 THERMO-VALVE, EMISSION CONTROL |
MD076114 |
US $109.52 |
||
|
12425
|
12425
MD078512 VALVE, EMISSION CONTROL BOOSTK5t05175 |
MD078512 |
US $49.58 |
||
|
12426PB
|
12426PB
MD001683 VALVE, EMISSION CONTROL DELAY |
MD001683 |
US $58.46 |
||
|
12453
|
12453
MD080652 BRACKET, EMISSION CONTROL RELIEF HOSE |
MD080652 |
US $10.66 |
||
|
12481
|
12481
MD072975 VALVE, EMISSION CONTROL RELIEF |
MD072975 |
US $59.94 |
||
|
12945P
|
12945P
MF350790 SCREW, HAND STARTING EQUIPWasher assembled,6x12 |
MF350790 |
from US $0.82 |
||
|
12947P
|
12947P
MS632992 HOSE, EMISSION VACUUM CONTROL EQUIP3x2000 |
MS632992 |
from US $35.10 |
||
|
12947Q
|
12947Q
MD080650 HOSE, EMISSION VACUUM CONTROL EQUIP |
MD080650 |
US $17.02 |
||
|
12947S
|
12947S
MS633192 HOSE, EMISSION VACUUM CONTROL EQUIP3x2000 |
MS633192 |
US $48.10 |
||
|
12947T
|
12947T
MS632419 HOSE, EMISSION CONTROL EQUIP3x190 |
MS632419 |
US $5.77 |
||
|
12947T
|
12947T
MS632592 HOSE, EMISSION VACUUM CONTROL EQUIP3x2000 |
MS632592 |
US $54.72 |
||
|
12947U
|
12947U
MD080651 HOSE, EMISSION VACUUM CONTROL EQUIP |
MD080651 |
US $37.74 |
||
|
12951P
|
12951P
MF477027 CLIP, FUEL TANKD=18 |
MF477027 |
US $2.66 |
||
|
12951Q
|
12951Q
MS660168 CLIP, ROCKER COVERD=17.8 |
MS660168 |
from US $1.74 |
||
|
12954T
|
12954T
MF240022 BOLT, ROCKER COVERWasher assembled,6x10 |
MF240022 |
US $2.05 |
||
|
12954U
|
12954U
MF243623 BOLT, FLYWHEEL HOUSINGWasher assembled,6x14 |
MF243623 |
US $2.74 |
||
|
12975P
|
12975P
MB056746 CLIP, FUEL VAPOR CONTROL LINE40 |
MB056746 |
US $2.37 |
||
|
12975S
|
12975S
MS660158 CLIP, FUEL TANKD=6.8 |
MS660158 |
US $2.60 |
||
|
12976
|
12976
MD083532 CLAMP, EMISSION CONTROL EQUIP |
MD083532 |
US $5.62 |
||
|
12977
|
12977
MD026761 CAP, ROCKER COVER2.9 |
MD026761 |
from US $2.69 |
||
|
12986
|
12986
MS660169 CLIP, FUEL TANKD=10 |
MS660169 |
from US $0.92 |
||
|
12988
|
12988
MF241236 BOLT, ENG OIL PUMPWasher assembled,6x45 |
MF241236 |
US $1.78 |
||
|
12988
|
12988
MF241263 BOLT, BALANCER BELT TRAINWasher assembled,8x50 |
MF241263 |
US $1.50 |
||
