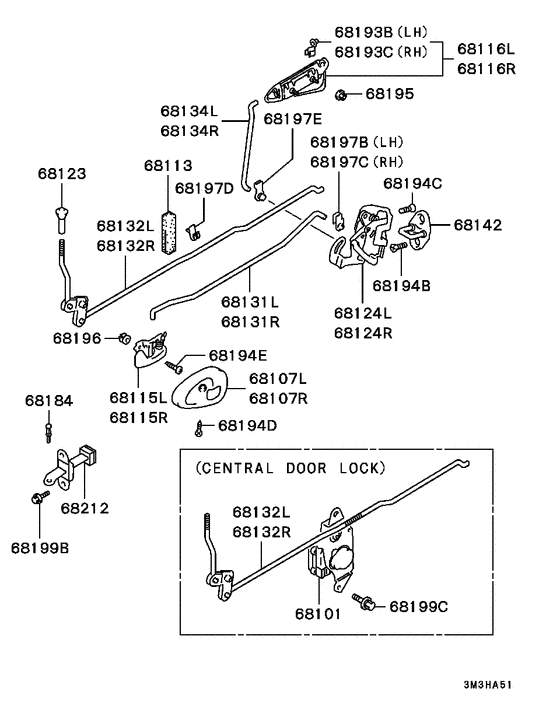

Rear door locking Diagram Mitsubishi MINICA
- Year
- 1993 - 1996
- Sales region
- Japan
- Note
- GUPPY-4WD(4DOOR/MPI),3FA/T
- drive
- 4WD/4WD
- transmission
- 3FA/T
- grade
- GUPPY
- body
- SEDAN
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
68107L
|
68107L
MR156800
COVER, RR DOOR INSIDE HANDLE, LH
|
MR156800 |
— | ||
|
68107L
|
68107L
MR156801 COVER, RR DOOR INSIDE HANDLE, LH |
MR156801 |
US $9.77 |
||
|
68107R
|
68107R
MR156802
COVER, RR DOOR INSIDE HANDLE, RH
|
MR156802 |
— | ||
|
68107R
|
68107R
MR156803 COVER, RR DOOR INSIDE HANDLE, RH |
MR156803 |
US $9.77 |
||
|
68113
|
68113
MB134382 CUSHION, FR DOOR |
MB134382 |
US $3.97 |
||
|
68115L
|
68115L
MR710454 HANDLE, FR DOOR INSIDE, LH |
MR710454 |
US $22.94 |
||
|
68115L
|
68115L
MR710455 HANDLE, FR DOOR INSIDE, LH |
MR710455 |
US $22.94 |
||
|
68115R
|
68115R
MR710456 HANDLE, FR DOOR INSIDE, RH |
MR710456 |
US $22.94 |
||
|
68115R
|
68115R
MR710457 HANDLE, FR DOOR INSIDE, RH |
MR710457 |
US $22.94 |
||
|
68116L
|
68116L
MR710739
HANDLE, RR DOOR OUTSIDE, LH
|
MR710739 |
— | ||
|
68116L
|
68116L
MR715752 HANDLE, RR DOOR OUTSIDE, LH |
MR715752 |
US $88.80 |
||
|
68116L
|
68116L
MR715755 HANDLE, RR DOOR OUTSIDE, LH |
MR715755 |
US $87.32 |
||
|
68116L
|
68116L
MR721825 HANDLE, RR DOOR OUTSIDE, LH |
MR721825 |
US $88.80 |
||
|
68116R
|
68116R
MR710740
HANDLE, RR DOOR OUTSIDE, RH
|
MR710740 |
— | ||
|
68116R
|
68116R
MR715757 HANDLE, RR DOOR OUTSIDE, RH |
MR715757 |
US $88.80 |
||
|
68116R
|
68116R
MR715760 HANDLE, RR DOOR OUTSIDE, RH |
MR715760 |
US $88.80 |
||
|
68116R
|
68116R
MR721826 HANDLE, RR DOOR OUTSIDE, RH |
MR721826 |
US $88.80 |
||
|
68123
|
68123
MB258708 KNOB, FR DOOR INSIDE LOCK |
MB258708 |
from US $3.84 |
||
|
68124L
|
68124L
MR157513 LATCH, RR DOOR, LH |
MR157513 |
US $120.62 |
||
|
68124R
|
68124R
MR157514 LATCH, RR DOOR, RH |
MR157514 |
US $120.62 |
||
|
68131L
|
68131L
MB900263 ROD, RR DOOR INSIDE HANDLE, LH |
MB900263 |
US $8.14 |
||
|
68131R
|
68131R
MB900264 ROD, RR DOOR INSIDE HANDLE, RH |
MB900264 |
US $8.14 |
||
|
68132L
|
68132L
MR157515 ROD, RR DOOR INSIDE LOCK, LH |
MR157515 |
US $15.54 |
||
|
68132R
|
68132R
MR157516 ROD, RR DOOR INSIDE LOCK, RH |
MR157516 |
US $15.54 |
||
|
68134L
|
68134L
MB900261 ROD, RR DOOR OUTSIDE HANDLE, LH |
MB900261 |
US $8.58 |
||
|
68134R
|
68134R
MB900262 ROD, RR DOOR OUTSIDE HANDLE, RH |
MB900262 |
US $8.58 |
||
|
68142
|
68142
5715A285 STRIKER, FR DOOR LATCH |
5715A285 |
US $8.73 |
||
|
68142
|
68142
MR157576 STRIKER, FR DOOR LATCH |
MR157576 |
US $13.91 |
||
|
68184
|
68184
MB632510 SPRING PIN, FR DOOR LOCKING6x27 |
MB632510 |
US $3.56 |
||
|
68193B
|
68193B
MU481090 SNAP, FR DOOR LOCKING |
MU481090 |
from US $0.82 |
||
|
68193C
|
68193C
MU481091 SNAP, FR DOOR LOCKING |
MU481091 |
from US $0.99 |
||
|
68194B
|
68194B
MB069727
SCREW, FR DOOR PANEL
|
MB069727 |
— | ||
|
68194B
|
68194B
MU000623 SCREW, FR DOOR LOCKINGMachine(plus),8x22.5 |
MU000623 |
US $4.24 |
||
|
68194B
|
68194B
MU340023 SCREW, FR DOOR LOCKINGWasher assembled(plus),8x22.5 |
MU340023 |
from US $0.96 |
||
|
68194C
|
68194C
MU340020 SCREW, FR DOOR LOCKINGWasher assembled(plus),6x12 |
MU340020 |
US $4.24 |
||
|
68194D
|
68194D
MF453075 SCREW, WINDSHIELD PANELTapping,4x8 |
MF453075 |
from US $1.77 |
||
|
68194E
|
68194E
MF453046 SCREW, FUEL LINETapping,6x14 |
MF453046 |
US $2.60 |
||
|
68195
|
68195
MS440502 NUT, FUEL TANKWasher assembled,6 |
MS440502 |
from US $1.74 |
||
|
68196
|
68196
MS480003 GROMMET, FUEL FILLER LID PANELScrew,6 |
MS480003 |
from US $1.11 |
||
|
68197B
|
68197B
MU481193 CLIP, FR DOOR LOCKING6 |
MU481193 |
from US $0.66 |
||
|
68197C
|
68197C
MU481194 CLIP, FR DOOR LOCKING6 |
MU481194 |
from US $0.80 |
||
|
68197D
|
68197D
MU481161 CLIP, RR DOOR LOCKING |
MU481161 |
US $4.38 |
||
|
68197E
|
68197E
MB590578 CLIP, RR DOOR LOCKING5.0 |
MB590578 |
from US $1.76 |
||
|
68199B
|
68199B
MS240042 BOLT, RADIATORWasher assembled,6x20 |
MS240042 |
from US $0.49 |
||
|
68212
|
68212
MB590179 CHECK, RR DOOR |
MB590179 |
US $29.60 |
