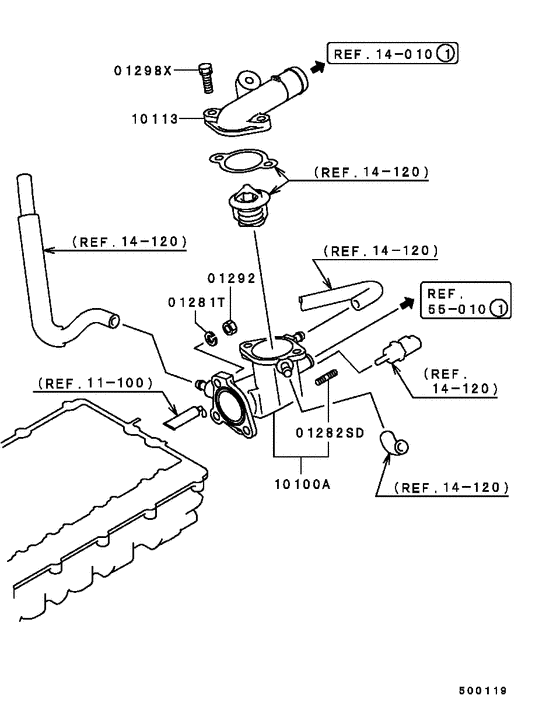

Cylinder head (DOHC (THERMOSTAT CASE)) Diagram Mitsubishi MINICA
- Year
- 1993 - 1998
- Sales region
- Japan
- Note
- DANGAN-4(2DOOR/MPI),5FM/T
- drive
- 4WD
- transmission
- 5FM/T
- grade
- DANGAN-4
- body
- SEDAN
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01281T
|
01281T
MF450405 WASHER, CYLINDER HEADSpring,8 |
MF450405 |
from US $0.43 |
||
|
01282SD
|
01282SD
MS401001 STUD, CYLINDER HEAD6x14 |
MS401001 |
US $4.59 |
||
|
01292
|
01292
MF430005 NUT, ROCKER COVER8 |
MF430005 |
from US $1.01 |
||
|
01298X
|
01298X
MF240055 BOLT, CYLINDER HEADWasher assembled,8x25 |
MF240055 |
from US $1.23 |
||
|
10100A
|
10100A
MD301418 CASE ASSY, THERMOSTAT |
MD301418 |
US $198.32 |
||
|
10113
|
10113
MD198639 FITTING, COOLING WATER OUTLET HOSE |
MD198639 |
US $54.02 |
||
|
11 100
|
Liquid gasket
11 100
|
||||
|
14 010
|
Radiator,hose & condenser tank
14 010
|
||||
|
14 010
|
Radiator,hose & condenser tank
14 010
|
||||
|
14 120
|
Water pipe & thermostat
14 120
|
||||
|
55 010
|
Heater unit & piping
55 010
|
||||
|
55 010
|
Heater unit & piping
55 010
|
||||
