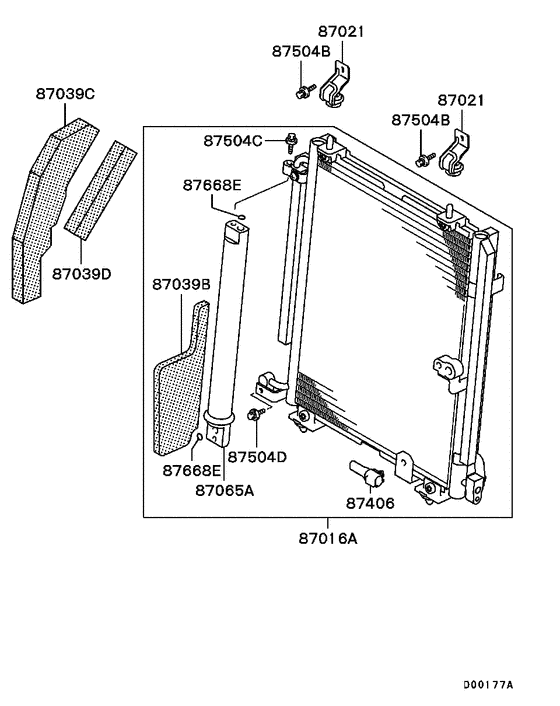

A/c condenser, piping (CONDENSER) Diagram Mitsubishi MINICA
- Year
- 1999 - 2000
- Sales region
- Japan
- Note
- PISTACHIO(2DOOR/M-LINE),5FM/T
- drive
- 2WD
- transmission
- 5FM/T
- grade
- PISTACHIO
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
87016A
|
87016A
MR500771
CONDENSER ASSY, A/C REFRIGERANT
|
MR500771 |
— | ||
|
87021
|
87021
MR500772
BRACKET, A/C CONDENSER
|
MR500772 |
— | ||
|
87039B
|
87039B
MR568410
INSULATOR, A/C CONDENSER
|
MR568410 |
— | ||
|
87039C
|
87039C
MR500773
INSULATOR, A/C CONDENSER
|
MR500773 |
— | ||
|
87039D
|
87039D
MR500774
INSULATOR, A/C CONDENSER
|
MR500774 |
— | ||
|
87065A
|
87065A
MR460615
RECEIVER ASSY, A/C
|
MR460615 |
— | ||
|
87406
|
87406
MR283903 SENSOR, A/C CONDENSER TEMPERATURE |
MR283903 |
from US $23.17 |
||
|
87504B
|
87504B
MS240121 BOLT, CONNRODWasher assembled,6x16 |
MS240121 |
from US $1.70 |
||
|
87504C
|
87504C
MF243628 BOLT, CONNRODWasher assembled,6x25 |
MF243628 |
US $0.55 |
||
|
87504D
|
87504D
MF243630 BOLT, FUEL TANKWasher assembled,6x30 |
MF243630 |
US $2.33 |
||
|
87668E
|
87668E
MB946604 O-RING, RR A/C |
MB946604 |
from US $0.80 |
