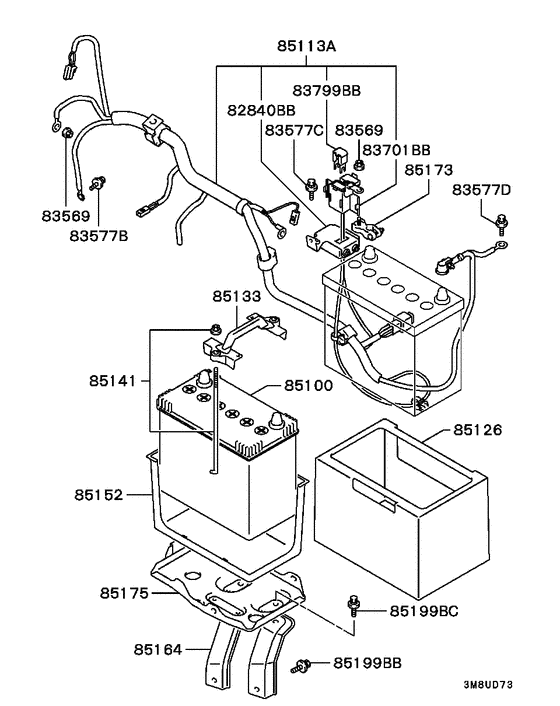

Battery cable & bracket (ALL) Diagram Mitsubishi MINICA
- Year
- 1999 - 2000
- Sales region
- Japan
- Note
- PISTACHIO(2DOOR/M-LINE),5FM/T
- drive
- 2WD
- transmission
- 5FM/T
- grade
- PISTACHIO
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82840BB
|
82840BB
MR547382 SENSOR, ELECTRIC CURRENT |
MR547382 |
US $2,246.40 |
||
|
83569
|
83569
MS440503 NUT, ENG FR MOUNTINGWasher assembled,8 |
MS440503 |
from US $0.84 |
||
|
83577B
|
83577B
MS240125 BOLT, FUEL TANKWasher assembled,8x20 |
MS240125 |
from US $1.05 |
||
|
83577C
|
83577C
MS240121 BOLT, CONNRODWasher assembled,6x16 |
MS240121 |
from US $1.70 |
||
|
83577D
|
83577D
MB133273 BOLT, FUEL LINEWasher assembled,6x16 |
MB133273 |
US $3.01 |
||
|
83701BB
|
83701BB
MR438190 BOX ASSY, FUSIBLE LINK1p,80a,battery mark |
MR438190 |
US $20.72 |
||
|
83799BB
|
83799BB
MU840021 FUSIBLE LINK80a,screw up type |
MU840021 |
from US $7.12 |
||
|
85100
|
85100
MR213300
BATTERY
|
MR213300 |
— | ||
|
85113A
|
85113A
MR515850 CABLE ASSY, BATTERY WIRING |
MR515850 |
US $279.72 |
||
|
85126
|
85126
MR203158 COVER, BATTERY |
MR203158 |
US $54.02 |
||
|
85133
|
85133
MR368849 HOLDER, BATTERY131 |
MR368849 |
US $10.06 |
||
|
85141
|
85141
MR124716 L-BOLT KIT, BATTERY6x230 |
MR124716 |
US $6.43 |
||
|
85152
|
85152
MA615867
SEAT, BATTERY
|
MA615867 |
— | ||
|
85164
|
85164
MR535968 STAY, BATTERY TRAY |
MR535968 |
US $52.54 |
||
|
85164
|
85164
MR536153 STAY, BATTERY TRAY |
MR536153 |
US $37.74 |
||
|
85173
|
85173
MU800771
TERMINAL, BATTERY
|
MU800771 |
— | ||
|
85175
|
85175
MR536145 TRAY, BATTERY |
MR536145 |
US $46.62 |
||
|
85199BB
|
85199BB
MF243649 BOLT, FLYWHEEL HOUSINGWasher assembled,8x16 |
MF243649 |
from US $0.59 |
||
|
85199BC
|
85199BC
MS240125 BOLT, FUEL TANKWasher assembled,8x20 |
MS240125 |
from US $1.05 |
