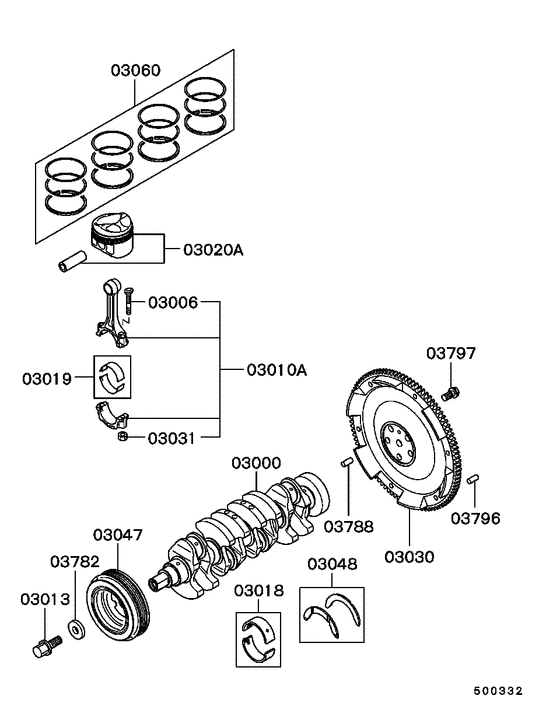

Piston & crankshaft (ALL) Diagram Mitsubishi MINICA
- Year
- 1999 - 2000
- Sales region
- Japan
- Note
- PISTACHIO(2DOOR/M-LINE),5FM/T
- drive
- 2WD
- transmission
- 5FM/T
- grade
- PISTACHIO
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
03000
|
03000
MD370917 CRANKSHAFT |
MD370917 |
US $1,432.70 |
||
|
03006
|
03006
MD179705 BOLT, CONNROD7x43.7 |
MD179705 |
from US $2.63 |
||
|
03010A
|
03010A
MD329195 CONNECTING ROD ASSY |
MD329195 |
US $128.02 |
||
|
03013
|
03013
MD185343 CENTER BOLT, CRANKSHAFT PULLEY12x30 |
MD185343 |
US $6.98 |
||
|
03018
|
03018
MD370928 BEARING, CRANKSHAFTPlain,std 1 |
MD370928 |
US $29.60 |
||
|
03018
|
03018
MD370929 BEARING, CRANKSHAFTPlain,std 2 |
MD370929 |
US $29.60 |
||
|
03018
|
03018
MD370930 BEARING, CRANKSHAFTPlain,std 3 |
MD370930 |
US $29.60 |
||
|
03018
|
03018
MD370931 BEARING, CRANKSHAFTPlain,std 4 |
MD370931 |
US $29.60 |
||
|
03018
|
03018
MD370932 BEARING, CRANKSHAFTPlain,std 5 |
MD370932 |
US $29.60 |
||
|
03019
|
03019
MD370936 BEARING, CONNRODPlain,std 1 |
MD370936 |
US $23.68 |
||
|
03019
|
03019
MD370937 BEARING, CONNRODPlain,std 2 |
MD370937 |
US $23.68 |
||
|
03019
|
03019
MD370938 BEARING, CONNRODPlain,std 3 |
MD370938 |
US $23.68 |
||
|
03020A
|
03020A
MD370885 PISTON & PIN ASSYStd a |
MD370885 |
US $82.88 |
||
|
03020A
|
03020A
MD370886 PISTON & PIN ASSYStd b |
MD370886 |
US $82.88 |
||
|
03020A
|
03020A
MD370887 PISTON & PIN ASSYStd c |
MD370887 |
US $82.88 |
||
|
03020A
|
03020A
MD371970 PISTON & PIN ASSYO/size 0.25 |
MD371970 |
US $82.88 |
||
|
03020A
|
03020A
MD371971 PISTON & PIN ASSYO/size 0.50 |
MD371971 |
US $82.88 |
||
|
03030
|
03030
MD370627 FLYWHEEL |
MD370627 |
US $264.92 |
||
|
03031
|
03031
MD195747 NUT, CONNROD7 |
MD195747 |
from US $1.03 |
||
|
03047
|
03047
MD371000 PULLEY, CRANKSHAFTRibbed |
MD371000 |
US $174.64 |
||
|
03048
|
03048
MD198954 THRUST BEARING SET, CRANKSHAFTPlain |
MD198954 |
from US $3.65 |
||
|
03060
|
03060
MD372025 RING SET, PISTONStd |
MD372025 |
US $242.72 |
||
|
03060
|
03060
MD372026 RING SET, PISTONO/size 0.25 |
MD372026 |
US $242.72 |
||
|
03060
|
03060
MD372027 RING SET, PISTONO/size 0.50 |
MD372027 |
US $242.72 |
||
|
03782
|
03782
MD016641
WASHER, CRANKSHAFT PULLEY
|
MD016641 |
— | ||
|
03788
|
03788
MF472403 PIN, CYLINDER BLOCKDowel,6x14 |
MF472403 |
from US $2.34 |
||
|
03796
|
03796
MF472404 PIN, CYLINDER BLOCKDowel,8x18 |
MF472404 |
from US $2.61 |
||
|
03797
|
03797
MD198924 BOLT, FLYWHEELFlange,10x19.5 |
MD198924 |
US $3.97 |
