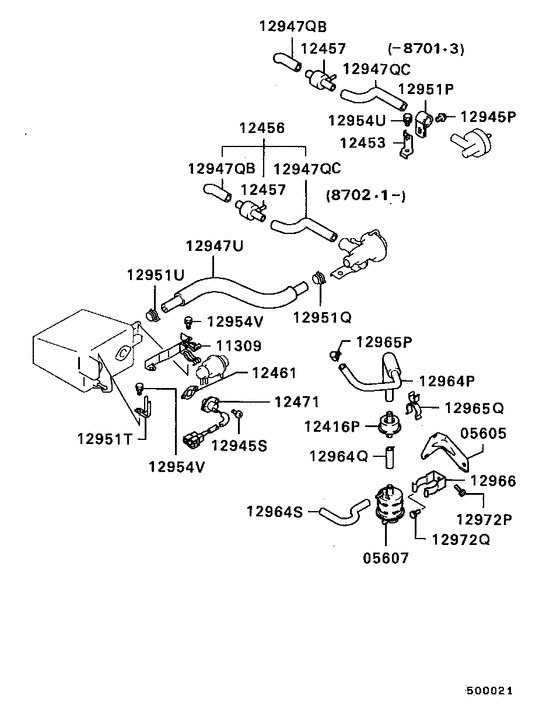

Emission control (TURBO (PURGE CONTROL)) Diagram Mitsubishi MINICA ECONO
- Year
- 1988 - 1989
- Sales region
- Japan
- Note
- TURBO ZEO(OPENTOP),5FM/T
- drive
- 2WD
- transmission
- 5FM/T
- grade
- ZEO
- body
- VAN
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
05605
|
05605
MD117413 BRACKET, FUEL VAPOR CANISTER |
MD117413 |
US $6.07 |
||
|
05607
|
05607
MB504907 CANISTER, FUEL VAPOR |
MB504907 |
US $59.94 |
||
|
05607
|
05607
MD117411 CANISTER, FUEL VAPOR |
MD117411 |
US $54.02 |
||
|
11309
|
11309
MD115365 BRACKET, SURGE TANK EMISSION CONTROL EQUIP |
MD115365 |
US $28.12 |
||
|
12416P
|
12416P
MD122971 THERMO-VALVE, EMISSION CONTROL |
MD122971 |
US $133.20 |
||
|
12456
|
12456
MD126623 HOSE & VALVE, EMISSION CONTROL RELIEF |
MD126623 |
US $109.52 |
||
|
12457
|
12457
MD124886 CHECK VALVE, EMISSION CONTROL RELIEF HOSE |
MD124886 |
US $87.32 |
||
|
12461
|
12461
MD106267 GASKET, ENG AIR INTAKE LINE |
MD106267 |
US $5.75 |
||
|
12471
|
12471
MD115268 SWITCH, EMISSION CONTROL AIR TEMPERATURE |
MD115268 |
US $139.86 |
||
|
12945P
|
12945P
MF350790 SCREW, HAND STARTING EQUIPWasher assembled,6x12 |
MF350790 |
from US $0.82 |
||
|
12945S
|
12945S
MF350745 SCREW, FUEL RETURN LINEWasher assembled,4x12 |
MF350745 |
US $0.74 |
||
|
12947QB
|
12947QB
MD124889 HOSE, EMISSION VACUUM CONTROL EQUIP |
MD124889 |
US $15.54 |
||
|
12947QC
|
12947QC
MD124888 HOSE, EMISSION VACUUM CONTROL EQUIP |
MD124888 |
US $33.30 |
||
|
12947U
|
12947U
MD124887 HOSE, EMISSION VACUUM CONTROL EQUIP |
MD124887 |
US $56.98 |
||
|
12951Q
|
12951Q
MS660172 CLIP, ENG OIL PAND=23 |
MS660172 |
from US $1.62 |
||
|
12951T
|
12951T
MB113038 CLIP, EMISSION VACUUM CONTROL EQUIP6.6-40/55 |
MB113038 |
US $3.97 |
||
|
12951U
|
12951U
MS660221 CLIP, COOLING WATER LINE19.7 |
MS660221 |
US $4.88 |
||
|
12954U
|
12954U
MF243623 BOLT, FLYWHEEL HOUSINGWasher assembled,6x14 |
MF243623 |
US $2.74 |
||
|
12954V
|
12954V
MF241224 BOLT, CYLINDER HEADWasher assembled,6x14 |
MF241224 |
from US $0.78 |
||
|
12964P
|
12964P
MD117414 HOSE, FUEL VAPOR CONTROL |
MD117414 |
US $42.92 |
||
|
12964Q
|
12964Q
MD117415 HOSE, FUEL VAPOR CONTROL8x40 |
MD117415 |
US $3.70 |
||
|
12964S
|
12964S
MS632192 HOSE, CRUISE CONTROL EQUIP3x2000 |
MS632192 |
from US $11.22 |
||
|
12965P
|
12965P
MS660164 CLAMP, T/M OIL COOLER LINED=13.1 |
MS660164 |
from US $1.13 |
||
|
12965Q
|
12965Q
MS470469 CLIP, FUEL VAPOR CONTROL12-21 |
MS470469 |
US $4.44 |
||
|
12966
|
12966
MB433062 HOLDER, FUEL VAPOR CANISTER |
MB433062 |
US $6.81 |
||
|
12972P
|
12972P
MS240121 BOLT, CONNRODWasher assembled,6x16 |
MS240121 |
from US $1.70 |
||
|
12972Q
|
12972Q
MF243622 BOLT, ROCKER COVERWasher assembled,6x12 |
MF243622 |
from US $1.33 |
