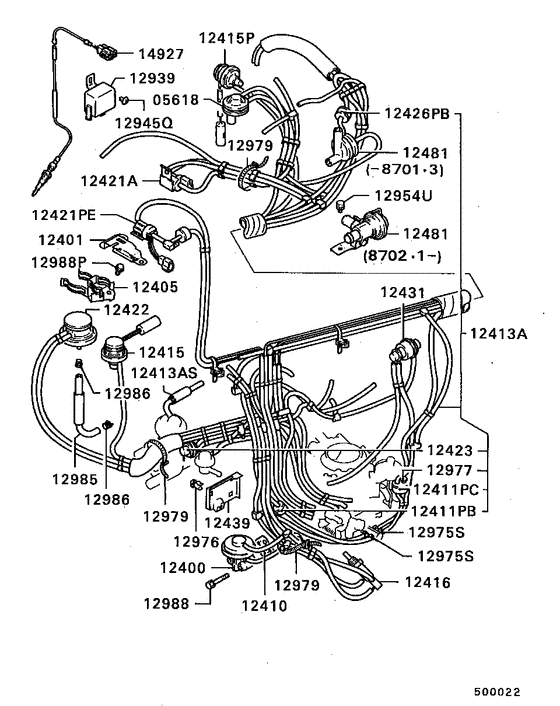

Emission control (TURBO (HIGH TEMP SENSOR,HOSE ASSEMBLY)) Diagram Mitsubishi MINICA ECONO
- Year
- 1988 - 1989
- Sales region
- Japan
- Note
- TURBO ZEO(OPENTOP),5FM/T
- drive
- 2WD
- transmission
- 5FM/T
- grade
- ZEO
- body
- VAN
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
05618
|
05618
MD120561 VALVE, PURGE CONTROL |
MD120561 |
US $59.94 |
||
|
12400
|
12400
MD122946 VALVE, EGR |
MD122946 |
US $135.42 |
||
|
12405
|
12405
MD120955 BRACKET, EMISSION VACUUM CONTROL SWITCH |
MD120955 |
US $10.80 |
||
|
12410
|
12410
MD119127 GASKET, EGR VALVE |
MD119127 |
from US $2.42 |
||
|
12411PB
|
12411PB
MD041839 CHECK VALVE, EMISSION CONTROL |
MD041839 |
US $20.72 |
||
|
12411PC
|
12411PC
MD104674 CHECK VALVE, EMISSION CONTROL |
MD104674 |
US $59.20 |
||
|
12413A
|
12413A
MD115267 HOSE ASSY, EMISSION VACUUM CONTROL |
MD115267 |
US $652.29 |
||
|
12413AS
|
12413AS
MD122751 HOSE ASSY, EMISSION VACUUM CONTROL |
MD122751 |
US $24.42 |
||
|
12415
|
12415
MD115256 SWITCH, EMISSION VACUUM CONTROL |
MD115256 |
US $70.30 |
||
|
12415P
|
12415P
MD120223 SWITCH, EMISSION VACUUM CONTROL |
MD120223 |
US $120.62 |
||
|
12416
|
12416
MD120694 THERMO-VALVE, EMISSION CONTROL |
MD120694 |
US $23.26 |
||
|
12421A
|
12421A
MD117374 VALVE, EMISSION SOLENOID |
MD117374 |
US $56.24 |
||
|
12423
|
12423
MD001347 VALVE, EMISSION VACUUM CONTROL SWITCH |
MD001347 |
US $68.08 |
||
|
12426PB
|
12426PB
MD001683 VALVE, EMISSION CONTROL DELAY |
MD001683 |
US $58.46 |
||
|
12431
|
12431
MD115259 VALVE, EMISSION VACUUM CONTROL |
MD115259 |
US $142.82 |
||
|
12439
|
12439
MD121632 PROTECTOR, EMISSION VACUUM CONTROL HOSE |
MD121632 |
US $13.32 |
||
|
12481
|
12481
MD124884 VALVE, EMISSION CONTROL RELIEF |
MD124884 |
US $119.14 |
||
|
12939
|
12939
MD115257 SENSOR, ENG SPEED |
MD115257 |
US $68.08 |
||
|
12939
|
12939
MD136326 SENSOR, ENG SPEED |
MD136326 |
US $62.90 |
||
|
12945Q
|
12945Q
MF453031 SCREW 5x12Tapping,5x12 |
MF453031 |
from US $1.50 |
||
|
12954U
|
12954U
MF243623 BOLT, FLYWHEEL HOUSINGWasher assembled,6x14 |
MF243623 |
US $2.74 |
||
|
12975S
|
12975S
MS660158 CLIP, FUEL TANKD=6.8 |
MS660158 |
US $2.60 |
||
|
12975S
|
12975S
MS660159 CLIP, VACUUM PUMPD=7.8 |
MS660159 |
from US $1.64 |
||
|
12976
|
12976
MD083532 CLAMP, EMISSION CONTROL EQUIP |
MD083532 |
US $5.62 |
||
|
12977
|
12977
MD026761 CAP, ROCKER COVER2.9 |
MD026761 |
from US $2.69 |
||
|
12979
|
12979
MB249339 BAND, ENG BREATHERL=169.5 |
MB249339 |
from US $1.50 |
||
|
12988P
|
12988P
MF140003 BOLT, ACCEL CABLE SUPPORTFlange,6x12 |
MF140003 |
from US $0.88 |
||
|
12988P
|
12988P
MF140203 BOLT, ACCEL CABLE SUPPORTFlange,6x12 |
MF140203 |
from US $0.68 |
||
|
12988P
|
12988P
MF241263 BOLT, BALANCER BELT TRAINWasher assembled,8x50 |
MF241263 |
US $1.50 |
||
|
12988P
|
12988P
MF247230 BOLT, ENG OIL COOLER LINEWasher assembled,6x30 |
MF247230 |
US $2.74 |
