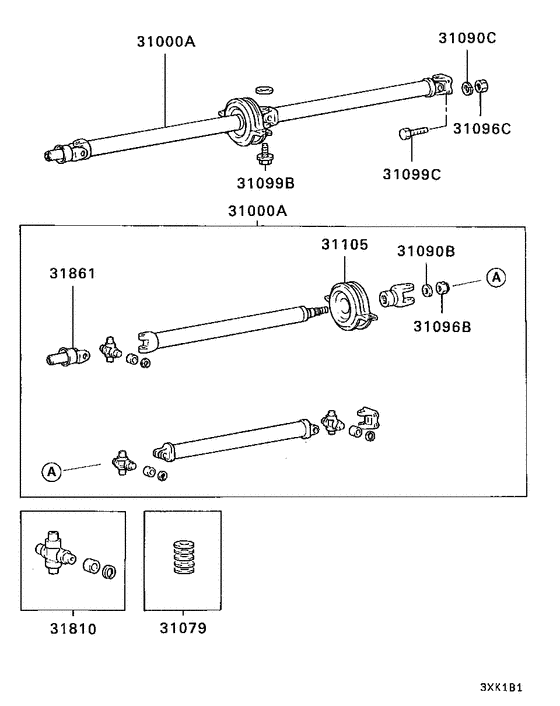

Propeller shaft (8701.1-) Diagram Mitsubishi MINICA ECONO
- Year
- 1987
- Sales region
- Japan
- Note
- 4WD,5FM/T
- drive
- 4WD/4WD
- transmission
- 5FM/T
- body
- VAN
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
31000A
|
31000A
MB505042 SHAFT ASSY, PROPELLER |
MB505042 |
US $688.69 |
||
|
31000A
|
31000A
MB505375 SHAFT ASSY, PROPELLER |
MB505375 |
US $757.12 |
||
|
31079
|
31079
MB241174 SPACER SET, PROPELLER SHAFT |
MB241174 |
US $8.62 |
||
|
31090B
|
31090B
MB154684 WASHER, PROPELLER SHAFTPlain,4.2 |
MB154684 |
US $4.14 |
||
|
31090C
|
31090C
MF450405 WASHER, CYLINDER HEADSpring,8 |
MF450405 |
from US $0.43 |
||
|
31096B
|
31096B
MF445087 NUT, ENG RR MOUNTINGSelf locking,14 |
MF445087 |
US $7.11 |
||
|
31096C
|
31096C
MB154075 NUT, PROPELLER SHAFT8 |
MB154075 |
from US $1.37 |
||
|
31099B
|
31099B
MF244880 BOLT, ENG RR MOUNTINGWasher assembled,10x25 |
MF244880 |
from US $1.50 |
||
|
31099C
|
31099C
MB000938 BOLT, PROPELLER SHAFT8x25 |
MB000938 |
from US $2.07 |
||
|
31105
|
31105
MB154685 CENTER BEARING, PROPELLER SHAFT |
MB154685 |
US $141.34 |
||
|
31810
|
31810
MB505372 SPIDER KIT, PROPELLER SHAFT UNIVERSAL JOINT |
MB505372 |
US $67.03 |
||
|
31861
|
31861
MB154481
YOKE, PROPELLER SHAFT SLEEVE
|
MB154481 |
— |
