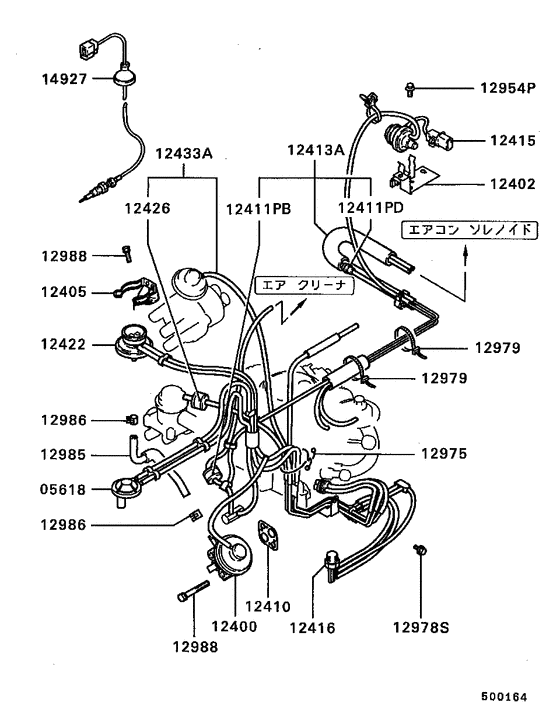

Emission control (DOHC..CARBURETOR) Diagram Mitsubishi MINICA TOPPO
- Year
- 1990 - 1991
- Sales region
- Japan
- Note
- Q-BOU(DOHC-CARB.),3FA/T
- drive
- 2WD
- transmission
- 3FA/T
- grade
- Q-BOU
- body
- SEDAN
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
05618
|
05618
MD153516 VALVE, PURGE CONTROL |
MD153516 |
US $28.12 |
||
|
12400
|
12400
MD144848 VALVE, EGR |
MD144848 |
US $176.12 |
||
|
12400
|
12400
MD165898 VALVE, EGR |
MD165898 |
US $183.52 |
||
|
12402
|
12402
MD137312 BRACKET, EMISSION VACUUM CONTROL SWITCH |
MD137312 |
US $14.65 |
||
|
12405
|
12405
MD155210 BRACKET, EMISSION VACUUM CONTROL REGULATOR VALVE |
MD155210 |
US $46.62 |
||
|
12410
|
12410
MD088604
GASKET, EGR VALVE
|
MD088604 |
— | ||
| replacement | |||||
|
12410
|
12410
MD119127 GASKET, EGR VALVE |
MD119127 |
from US $2.44 |
||
|
12411PB
|
12411PB
MD041839 CHECK VALVE, EMISSION CONTROL |
MD041839 |
US $20.72 |
||
|
12411PD
|
12411PD
MB188950 CHECK VALVE, EMISSION CONTROL |
MB188950 |
from US $13.27 |
||
|
12413A
|
12413A
MD164641 HOSE ASSY, EMISSION VACUUM CONTROL |
MD164641 |
US $112.48 |
||
|
12415
|
12415
MD132631 SWITCH, EMISSION VACUUM CONTROL |
MD132631 |
US $106.56 |
||
|
12416
|
12416
MD116701 THERMO-VALVE, EMISSION CONTROL |
MD116701 |
US $103.60 |
||
|
12422
|
12422
MD095540 VALVE, EMISSION VACUUM CONTROL REGULATOR |
MD095540 |
US $82.14 |
||
|
12426
|
12426
MD001680 VALVE, EMISSION CONTROL DELAY |
MD001680 |
US $49.58 |
||
|
12433A
|
12433A
MD164639 HOSE & PIPE ASSY, EMISSION CONTROL |
MD164639 |
US $210.16 |
||
|
12954P
|
12954P
MF140004 BOLT, FUEL VAPOR CONTROL LINEFlange,6x14 |
MF140004 |
US $2.46 |
||
|
12975
|
12975
MD006478 CLIP, FUEL VAPOR CONTROL LINE25 |
MD006478 |
US $2.66 |
||
|
12978S
|
12978S
MF140203 BOLT, ACCEL CABLE SUPPORTFlange,6x12 |
MF140203 |
from US $0.78 |
||
|
12979
|
12979
MB249338 BAND, ROCKER COVERL=129.5 |
MB249338 |
US $2.87 |
||
|
12985
|
12985
MD155211 HOSE, EGR EQUIP |
MD155211 |
US $23.68 |
||
|
12986
|
12986
MS660169 CLIP, FUEL TANKD=10 |
MS660169 |
from US $0.92 |
||
|
12988
|
12988
MF140203 BOLT, ACCEL CABLE SUPPORTFlange,6x12 |
MF140203 |
from US $0.78 |
||
|
12988
|
12988
MF241263 BOLT, BALANCER BELT TRAINWasher assembled,8x50 |
MF241263 |
US $1.50 |
||
|
14927
|
14927
MD138848 SENSOR, EXHAUST HIGH TEMPERATURE |
MD138848 |
US $248.64 |
||
