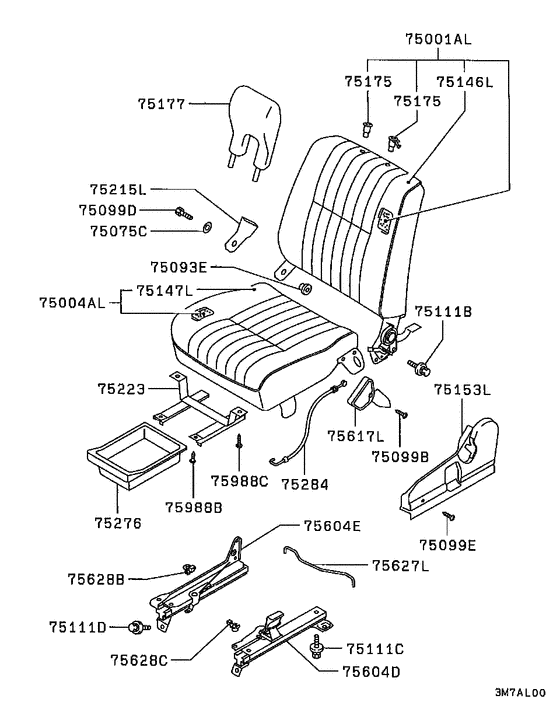

Front seat (LH..LOW BACK TYPE) Diagram Mitsubishi MINICA TOPPO
- Year
- 1991 - 1993
- Sales region
- Japan
- Note
- Q3(DOHC-MPI),3FA/T
- drive
- 2WD
- transmission
- 3FA/T
- grade
- Q3
- body
- SEDAN
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
75001AL
|
75001AL
MB964268 BACK ASSY, FR SEAT, LH |
MB964268 |
US $803.71 |
||
|
75004AL
|
75004AL
MB964261 CUSHION ASSY, FR SEAT, LH |
MB964261 |
US $803.71 |
||
|
75075C
|
75075C
MF450193 WASHER, FR FENDERPlain,6 |
MF450193 |
from US $1.40 |
||
|
75093E
|
75093E
MB158706 BUSHING, FR SEAT12x6 |
MB158706 |
from US $1.42 |
||
|
75099B
|
75099B
MB410568 SCREW, FR SEAT4x6 |
MB410568 |
US $3.56 |
||
|
75099D
|
75099D
MB074040 SCREW, FR SEAT6x12 |
MB074040 |
US $3.85 |
||
|
75099D
|
75099D
MB902325 SCREW, FR SEATWasher assembled,6x12 |
MB902325 |
US $2.52 |
||
|
75099E
|
75099E
MF456590 SCREW, FR SEATTapping,5x10 |
MF456590 |
US $2.07 |
||
|
75111B
|
75111B
MF241280 BOLT, RR SEATWasher assembled,10x20 |
MF241280 |
from US $0.98 |
||
|
75111C
|
75111C
MF240051 BOLT, ROCKER COVERWasher assembled,8x16 |
MF240051 |
from US $0.96 |
||
|
75111D
|
75111D
MS240188 BOLT, FR BUMPERWasher assembled,10x30 |
MS240188 |
from US $1.44 |
||
|
75146L
|
75146L
MB964285 COVER, FR SEAT BACK, LH |
MB964285 |
US $410.59 |
||
|
75147L
|
75147L
MB964275 COVER, FR SEAT CUSHION, LH |
MB964275 |
US $410.59 |
||
|
75153L
|
75153L
MB749963 COVER, FR SEAT SIDE SHIELD, LH |
MB749963 |
US $38.48 |
||
|
75153L
|
75153L
MB964223 COVER, FR SEAT SIDE SHIELD, LH |
MB964223 |
US $31.08 |
||
|
75175
|
75175
MB602864 GUIDE, FR SEAT HEADRESTW/lock |
MB602864 |
US $12.14 |
||
|
75175
|
75175
MB602865 GUIDE, FR SEAT HEADRESTW/o lock |
MB602865 |
US $9.92 |
||
|
75177
|
75177
MB964292 HEADREST, FR SEAT |
MB964292 |
US $207.20 |
||
|
75215L
|
75215L
MB602869 PROTECTOR, FR SEAT FREE HINGE, LH |
MB602869 |
US $8.73 |
||
|
75223
|
75223
MB558040 RAIL, FR SEAT UNDER TRAY |
MB558040 |
US $63.64 |
||
|
75276
|
75276
MB619955 TRAY, FR SEAT UNDER |
MB619955 |
US $89.54 |
||
|
75284
|
75284
MB602866 WIRE, FR SEAT |
MB602866 |
US $11.10 |
||
|
75604D
|
75604D
MB780573 ADJUSTER, FR SEAT SLIDE |
MB780573 |
US $105.82 |
||
|
75604D
|
75604D
MB964252 ADJUSTER, FR SEAT SLIDE |
MB964252 |
US $105.82 |
||
|
75604E
|
75604E
MB615779 ADJUSTER, FR SEAT SLIDE |
MB615779 |
US $105.82 |
||
|
75617L
|
75617L
MB602883 KNOB, FR SEAT RECLINING ADJUSTER, LH |
MB602883 |
US $17.02 |
||
|
75617L
|
75617L
MB754957 KNOB, FR SEAT RECLINING ADJUSTER, LH |
MB754957 |
US $17.02 |
||
|
75617L
|
75617L
MB964270 KNOB, FR SEAT RECLINING ADJUSTER, LH |
MB964270 |
US $17.02 |
||
|
75627L
|
75627L
MB602867 ROD, FR SEAT SLIDE ADJUSTER, LH |
MB602867 |
US $43.66 |
||
|
75628B
|
75628B
MB558042 LINK, FR SEAT SLIDE ADJUSTER ROD |
MB558042 |
US $4.14 |
||
|
75628C
|
75628C
MB558041 LINK, FR SEAT SLIDE ADJUSTER ROD |
MB558041 |
US $4.14 |
||
|
75988B
|
75988B
MF453031 SCREW 5x12Tapping,5x12 |
MF453031 |
from US $1.50 |
||
|
75988C
|
75988C
MF351008 SCREW, FUEL TANKWasher assembled,5x12 |
MF351008 |
from US $0.98 |
