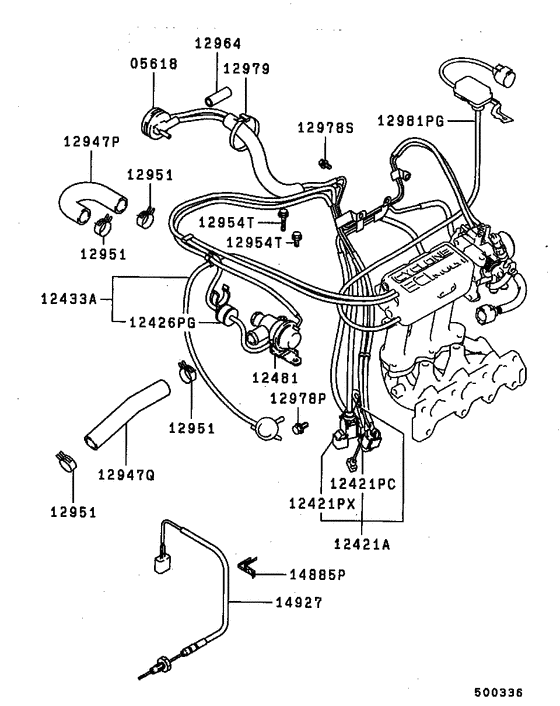

Emission control (DOHC..MPI..W/TURBO) Diagram Mitsubishi MINICA TOPPO
- Year
- 1991 - 1993
- Sales region
- Japan
- Note
- QT(CANVASTOP/TURBO),5FM/T
- drive
- 2WD
- transmission
- 5FM/T
- grade
- QT
- body
- SEDAN
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
05618
|
05618
MD139764 VALVE, PURGE CONTROL |
MD139764 |
US $82.14 |
||
|
05618
|
05618
MD153516 VALVE, PURGE CONTROL |
MD153516 |
US $28.12 |
||
|
12421A
|
12421A
MD141863 VALVE, EMISSION SOLENOID |
MD141863 |
US $145.04 |
||
|
12421PC
|
12421PC
MD074898 VALVE, EMISSION SOLENOID |
MD074898 |
US $68.08 |
||
|
12421PX
|
12421PX
MD141547 VALVE, EMISSION SOLENOID |
MD141547 |
US $66.60 |
||
|
12426PG
|
12426PG
MD017917 VALVE, EMISSION CONTROL DELAY |
MD017917 |
US $20.72 |
||
|
12433A
|
12433A
MD148990 HOSE & PIPE ASSY, EMISSION CONTROL |
MD148990 |
US $195.36 |
||
|
12481
|
12481
MD143394 VALVE, EMISSION CONTROL RELIEF |
MD143394 |
US $244.20 |
||
|
12947P
|
12947P
MD143260 HOSE, EMISSION VACUUM CONTROL EQUIP |
MD143260 |
US $48.10 |
||
|
12947Q
|
12947Q
MD143391 HOSE, EMISSION VACUUM CONTROL EQUIP21x205 |
MD143391 |
US $54.76 |
||
|
12951
|
12951
MS660170 CLIP, ENG BREATHERD=26 |
MS660170 |
US $3.42 |
||
|
12954T
|
12954T
MF140205 BOLT, CYLINDER BLOCKFlange,6x16 |
MF140205 |
from US $0.82 |
||
|
12954T
|
12954T
MF140211 BOLT, ROCKER COVERFlange,6x30 |
MF140211 |
from US $1.21 |
||
|
12964
|
12964
MD144004 HOSE, FUEL VAPOR CONTROL11x45 |
MD144004 |
US $5.77 |
||
|
12978P
|
12978P
MF140023 BOLT, ACCEL CABLE SUPPORTFlange,8x16 |
MF140023 |
from US $0.53 |
||
|
12978S
|
12978S
MF140203 BOLT, ACCEL CABLE SUPPORTFlange,6x12 |
MF140203 |
from US $0.68 |
||
|
12979
|
12979
MB249338 BAND, ROCKER COVERL=129.5 |
MB249338 |
US $2.87 |
||
|
12981PG
|
12981PG
MS632192 HOSE, CRUISE CONTROL EQUIP3x2000 |
MS632192 |
from US $11.22 |
||
|
14885P
|
14885P
MD156751 CLAMP, EXHAUST HIGH TEMPERATURE SENSOR |
MD156751 |
US $4.14 |
||
|
14927
|
14927
MB906984 SENSOR, EXHAUST HIGH TEMPERATURE |
MB906984 |
US $245.68 |
||
|
14927
|
14927
MD138848 SENSOR, EXHAUST HIGH TEMPERATURE |
MD138848 |
US $248.64 |
||
|
14927
|
14927
MD149102 SENSOR, EXHAUST HIGH TEMPERATURE |
MD149102 |
US $245.68 |
