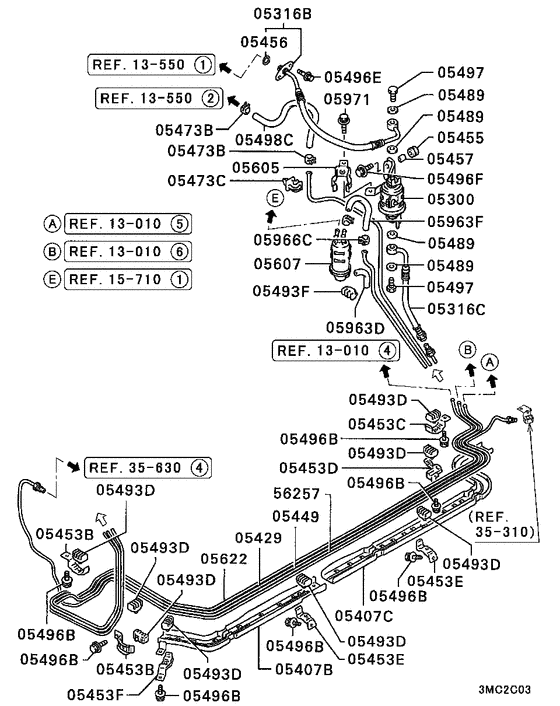

Fuel line & vapor gas control (MPI(EXC T/C)) Diagram Mitsubishi MINICA TOPPO
- Year
- 1990 - 1993
- Sales region
- Japan
- Note
- Q,5FM/T
- drive
- 2WD
- transmission
- 5FM/T
- grade
- Q
- body
- SEDAN
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
05407B
|
05407B
MB554988 STONE GUARD, FUEL LINE |
MB554988 |
US $36.26 |
||
|
05407C
|
05407C
MB554989 STONE GUARD, FUEL LINE |
MB554989 |
US $44.40 |
||
|
05429
|
05429
MB554962 PIPE, FUEL RETURN |
MB554962 |
US $39.96 |
||
|
05449
|
05449
MB554961 PIPE, FUEL LINE |
MB554961 |
US $48.84 |
||
|
05453B
|
05453B
MB554987 SUPPORT, FUEL LINE |
MB554987 |
US $7.25 |
||
|
05453C
|
05453C
MB621834 SUPPORT, FUEL LINE |
MB621834 |
US $5.92 |
||
|
05453D
|
05453D
MB595880 SUPPORT, FUEL LINE |
MB595880 |
US $8.14 |
||
|
05453E
|
05453E
MB554985 SUPPORT, FUEL LINE |
MB554985 |
US $5.48 |
||
|
05453F
|
05453F
MB554986 SUPPORT, FUEL LINE |
MB554986 |
US $5.77 |
||
|
05493D
|
05493D
MB554983 CLIP, FUEL LINE4.76x2-6.35x2 |
MB554983 |
US $5.03 |
||
|
05496B
|
05496B
MS240121 BOLT, CONNRODWasher assembled,6x16 |
MS240121 |
from US $1.70 |
||
|
05496E
|
05496E
MU240020 BOLT, FUEL LINEWasher assembled,6x20 |
MU240020 |
US $2.37 |
||
|
05496F
|
05496F
MB658337 BOLT, FUEL LINE |
MB658337 |
US $3.40 |
||
|
05607
|
05607
MB504907 CANISTER, FUEL VAPOR |
MB504907 |
US $59.94 |
||
|
05622
|
05622
MB554964 PIPE, FUEL VAPOR |
MB554964 |
US $48.84 |
||
|
05966C
|
05966C
MS660169 CLIP, FUEL TANKD=10 |
MS660169 |
from US $0.92 |
||
|
05971
|
05971
MF240023 BOLT, FUEL TANKWasher assembled,6x12 |
MF240023 |
from US $0.60 |
||
|
05971
|
05971
MS240121 BOLT, CONNRODWasher assembled,6x16 |
MS240121 |
from US $1.70 |
||
|
56257
|
56257
MB587769 TUBE, BRAKE MAIN |
MB587769 |
US $48.84 |
||
|
56257
|
56257
MB858719 TUBE, BRAKE MAIN |
MB858719 |
US $44.40 |
||
|
