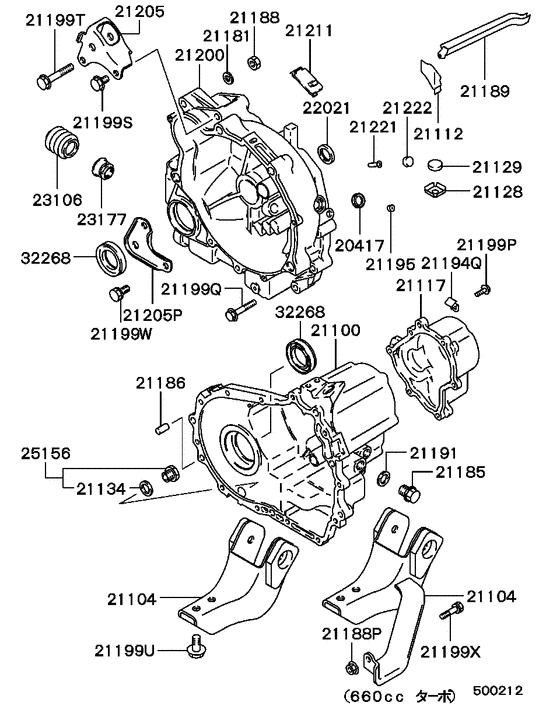

M/t case (ALL (T/M CASE)) Diagram Mitsubishi MINICA TOPPO
- Year
- 1990 - 1993
- Sales region
- Japan
- Note
- Q,5FM/T
- drive
- 2WD
- transmission
- 5FM/T
- grade
- Q
- body
- SEDAN
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
20417
|
20417
MT209170 DUST SEAL, CLUTCH RELEASE FORK SHAFT |
MT209170 |
from US $3.18 |
||
|
21100
|
21100
MD740231 CASE, M/T |
MD740231 |
US $515.42 |
||
|
21104
|
21104
MD739817 BRACKET, M/T CASE MOUNTING |
MD739817 |
US $70.30 |
||
|
21112
|
21112
MD716700 COVER, M/T CASE BREATHER HOLE |
MD716700 |
US $4.44 |
||
|
21117
|
21117
MD740389 COVER, M/T CASE 5TH GEAR |
MD740389 |
US $112.48 |
||
|
21128
|
21128
MD736947 HOLDER, M/T CASE MAGNET |
MD736947 |
US $5.18 |
||
|
21129
|
21129
MD955485 MAGNET, M/T CASE |
MD955485 |
from US $2.05 |
||
|
21134
|
21134
MB001294 GASKET, DRAIN PLUGD=18.2 |
MB001294 |
from US $1.11 |
||
|
21181
|
21181
MF450406 WASHERSpring,10 |
MF450406 |
from US $0.43 |
||
|
21185
|
21185
MD701850 PLUG, M/T CASE16 |
MD701850 |
from US $4.13 |
||
|
21186
|
21186
MF472405 PIN, CYLINDER BLOCKDowel,10x20 |
MF472405 |
from US $1.31 |
||
|
21188
|
21188
MF430122 NUT, ENG RR MOUNTING10 |
MF430122 |
from US $0.72 |
||
|
21188P
|
21188P
MS440134 NUT, CARBFlange,8 |
MS440134 |
from US $1.11 |
||
|
21189
|
21189
MD722377 OIL GUIDE, M/T CASE |
MD722377 |
US $7.99 |
||
|
21191
|
21191
MF660036 GASKET, ACCEL CONTROL EQUIPD=16 |
MF660036 |
from US $0.76 |
||
|
21194Q
|
21194Q
MD949517 CLAMP, M/T CASE |
MD949517 |
US $6.51 |
||
|
21195
|
21195
MF665531 CAP, CYLINDER HEAD10 |
MF665531 |
US $2.22 |
||
|
21199P
|
21199P
MF140207 BOLT, ROCKER COVERFlange,6x20 |
MF140207 |
from US $0.72 |
||
|
21199Q
|
21199Q
MF140235 BOLT, TIMING GEAR CASEFlange,8x50 |
MF140235 |
from US $1.07 |
||
|
21199S
|
21199S
MF140257 BOLT, M/T CASEFlange,10x18 |
MF140257 |
from US $1.33 |
||
|
21199T
|
21199T
MF140270 BOLT, ENG SUPPORT RODFlange,10x60 |
MF140270 |
from US $2.01 |
||
|
21199U
|
21199U
MD730418 BOLT, M/T CASEFlange,12x25 |
MD730418 |
US $5.18 |
||
|
21199W
|
21199W
MF241280 BOLT, RR SEATWasher assembled,10x20 |
MF241280 |
from US $0.98 |
||
|
21199X
|
21199X
MF241259 BOLT, CRANKCASEWasher assembled,8x35 |
MF241259 |
from US $0.90 |
||
|
21200
|
21200
MD738035 HOUSING, CLUTCH |
MD738035 |
US $582.40 |
||
|
21205
|
21205
MD737537 BRACKET, T/M MOUNTING ROLL ROD |
MD737537 |
US $36.26 |
||
|
21205P
|
21205P
MD737536 BRACKET, M/T CASE |
MD737536 |
US $10.06 |
||
|
21211
|
21211
MD715349 COVER, CLUTCH HOUSING INSPECTION HOLE |
MD715349 |
US $5.18 |
||
|
21221
|
21221
MT209220 PIPE, CLUTCH HOUSING BREATHER |
MT209220 |
US $3.11 |
||
|
21222
|
21222
MT209219 CAP, CLUTCH HOUSING BREATHER PIPE |
MT209219 |
US $2.37 |
||
|
22021
|
22021
MD901725
OIL SEAL, M/T MAIN DRIVE PINION
|
MD901725 |
— | ||
|
22021
|
22021
MD901726
OIL SEAL, M/T MAIN DRIVE PINION
|
MD901726 |
— | ||
|
23106
|
23106
MD740129 BOOT, M/T GEARSHIFT SHAFT |
MD740129 |
US $4.10 |
||
|
23177
|
23177
MD740138
OIL SEAL, M/T GEARSHIFT SHAFT
|
MD740138 |
— | ||
| replacement | |||||
|
23177
|
23177
MR477996 OIL SEAL, M/T GEARSHIFT SHAFT |
MR477996 |
US $7.93 |
||
|
25156
|
25156
MB001265 PLUG KIT, RR AXLE HOUSING |
MB001265 |
from US $4.49 |
||
|
32268
|
32268
MD706433
OIL SEAL, T/M FR DIFF CASE
|
MD706433 |
— | ||
| replacement | |||||
|
32268
|
32268
MD707184 OIL SEAL,RR DIFF SIDE BEARING,LH |
MD707184 |
from US $4.78 |
||
