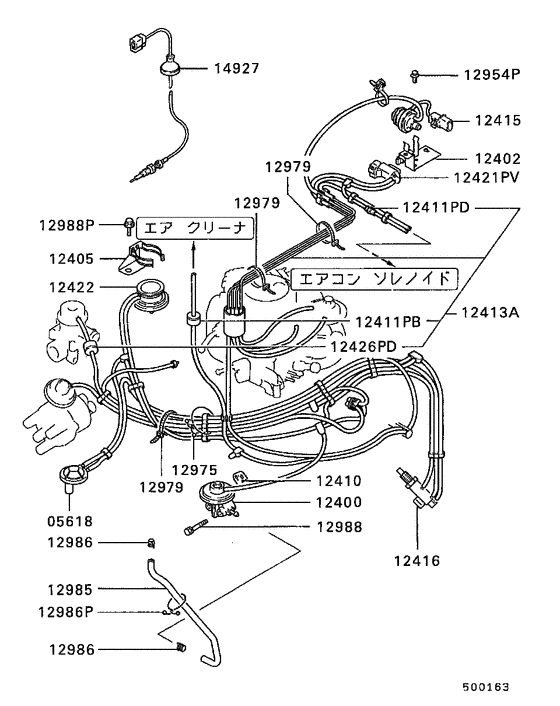

Emission control (SOHC) Diagram Mitsubishi MINICA TOPPO
- Year
- 1991 - 1993
- Sales region
- Japan
- Note
- QA(ABS),5FM/T
- drive
- 2WD
- transmission
- 5FM/T
- grade
- QA
- body
- SEDAN
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
05618
|
05618
MD153516 VALVE, PURGE CONTROL |
MD153516 |
US $28.12 |
||
|
12400
|
12400
MD164643 VALVE, EGR |
MD164643 |
US $195.36 |
||
|
12402
|
12402
MD137312 BRACKET, EMISSION VACUUM CONTROL SWITCH |
MD137312 |
US $14.65 |
||
|
12405
|
12405
MD157864 BRACKET, EMISSION VACUUM CONTROL REGULATOR VALVE |
MD157864 |
US $29.60 |
||
|
12410
|
12410
MD088604
GASKET, EGR VALVE
|
MD088604 |
— | ||
| replacement | |||||
|
12410
|
12410
MD119127 GASKET, EGR VALVE |
MD119127 |
from US $2.44 |
||
|
12411PB
|
12411PB
MD041839 CHECK VALVE, EMISSION CONTROL |
MD041839 |
US $20.72 |
||
|
12411PD
|
12411PD
MB188950 CHECK VALVE, EMISSION CONTROL |
MB188950 |
from US $13.27 |
||
|
12413A
|
12413A
MD157283 HOSE ASSY, EMISSION VACUUM CONTROL |
MD157283 |
US $279.72 |
||
|
12415
|
12415
MD132631 SWITCH, EMISSION VACUUM CONTROL |
MD132631 |
US $106.56 |
||
|
12416
|
12416
MD154129 THERMO-VALVE, EMISSION CONTROL |
MD154129 |
US $95.46 |
||
|
12421PV
|
12421PV
MD140994 VALVE, EMISSION SOLENOID |
MD140994 |
US $69.56 |
||
|
12422
|
12422
MD125742 VALVE, EMISSION VACUUM CONTROL REGULATOR |
MD125742 |
US $81.40 |
||
|
12954P
|
12954P
MF140004 BOLT, FUEL VAPOR CONTROL LINEFlange,6x14 |
MF140004 |
US $2.46 |
||
|
12975
|
12975
MS470362 CLIP, WATER HEATER20 |
MS470362 |
US $2.37 |
||
|
12979
|
12979
MB249338 BAND, ROCKER COVERL=129.5 |
MB249338 |
US $2.87 |
||
|
12985
|
12985
MD131929 HOSE, EGR EQUIP |
MD131929 |
US $31.08 |
||
|
12986
|
12986
MS660169 CLIP, FUEL TANKD=10 |
MS660169 |
from US $0.92 |
||
|
12986P
|
12986P
MD006478 CLIP, FUEL VAPOR CONTROL LINE25 |
MD006478 |
US $2.66 |
||
|
12988
|
12988
MF140203 BOLT, ACCEL CABLE SUPPORTFlange,6x12 |
MF140203 |
from US $0.78 |
||
|
12988
|
12988
MF241263 BOLT, BALANCER BELT TRAINWasher assembled,8x50 |
MF241263 |
US $1.50 |
||
|
12988P
|
12988P
MF140203 BOLT, ACCEL CABLE SUPPORTFlange,6x12 |
MF140203 |
from US $0.78 |
||
|
14927
|
14927
MD138848 SENSOR, EXHAUST HIGH TEMPERATURE |
MD138848 |
US $248.64 |
||
